6/02
5-48
DC1632/2240
PL 12.2
Prelaunch Training/Review
Parts List

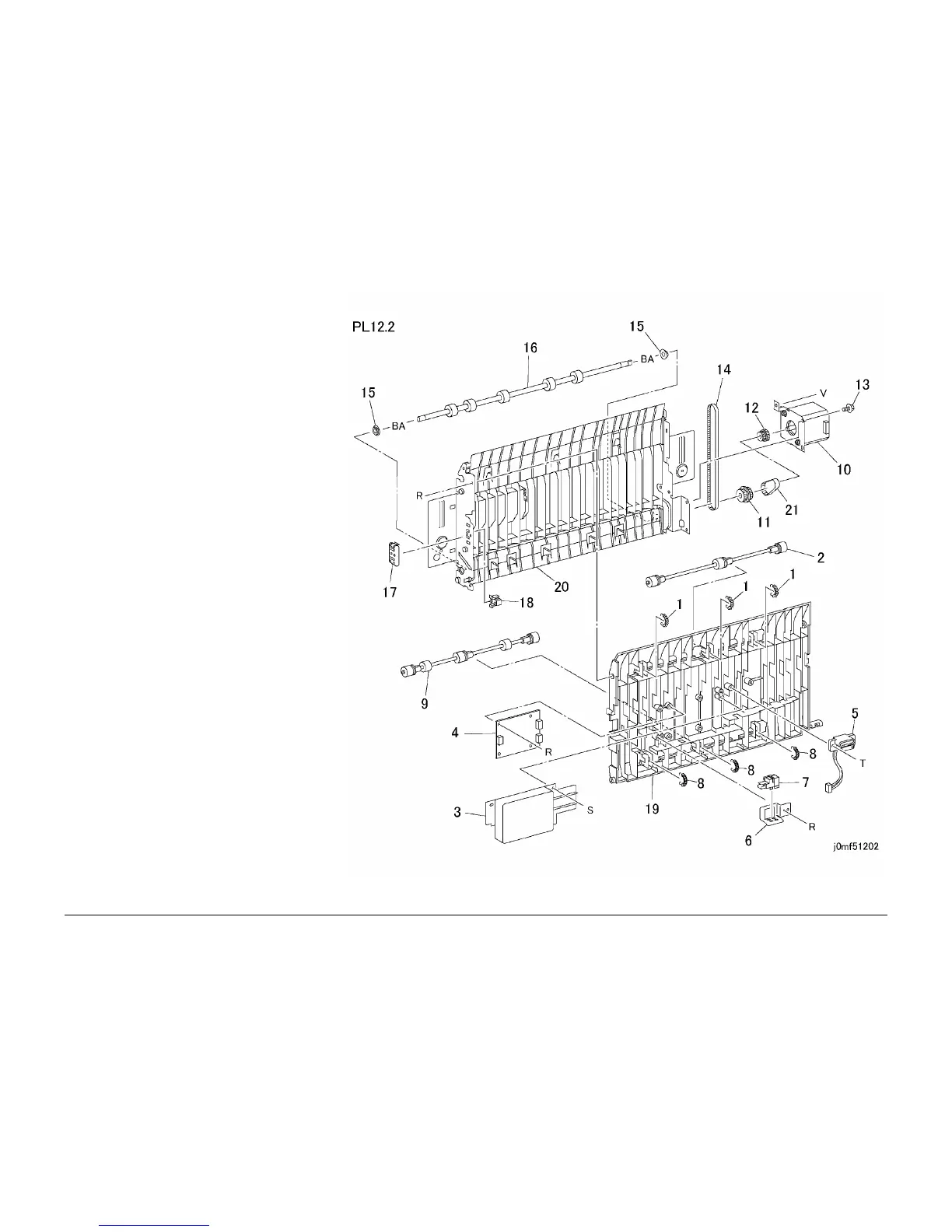

PL 12.2 Duplex Transport Assembly:
2 of 2
Item Part Description
1 – Spring (Not Spared)
2 022K33920 Pinch Roll
3 – Cover (Not Spared)
4 160K66860 Duplex Transport PWB
5 – Wire Harness (Not Spared)
6 – Bracket (Not Spared)
7 130K61250 Duplex Transport Wait Sensor
8 – Spring (Not Spared)
9 059K23980 Pinch Roll
10 127K29930 Duplex Transport Motor
11 – Pulley (20/21T) (Not Spared)
12 – Pulley (16T) (Not Spared)
13 – Screw (Not Spared)
14 – Belt (Not Spared)
15 – Bearing (Not Spared)
16 059K23970 Wait Roll
17 – Cover (Not Spared)
18 – Interlock Switch (Not Spared)
19 – Inner Chute (Not Spared)
20 – Outer Chute (Not Spared)
21 – Belt (Not Spared)
To Next Page
