6/02
4-25
DC1632/2240
REP 5.8
Repairs and Adjustments
Prelaunch Training/Review
REP 5.8 Lower Chute Assembly
Parts List on PL 20.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Top Cover.
2. Remove following:
a. Front Cover (PL 20.1).
b. Entrance Tray (PL 20.1).
3. Remove Lower Chute Assembly (Figure 1).
a. Open Document Feed Upper Chute.
b. Loosen screws (2).
c. Remove Lower Chute Assembly.

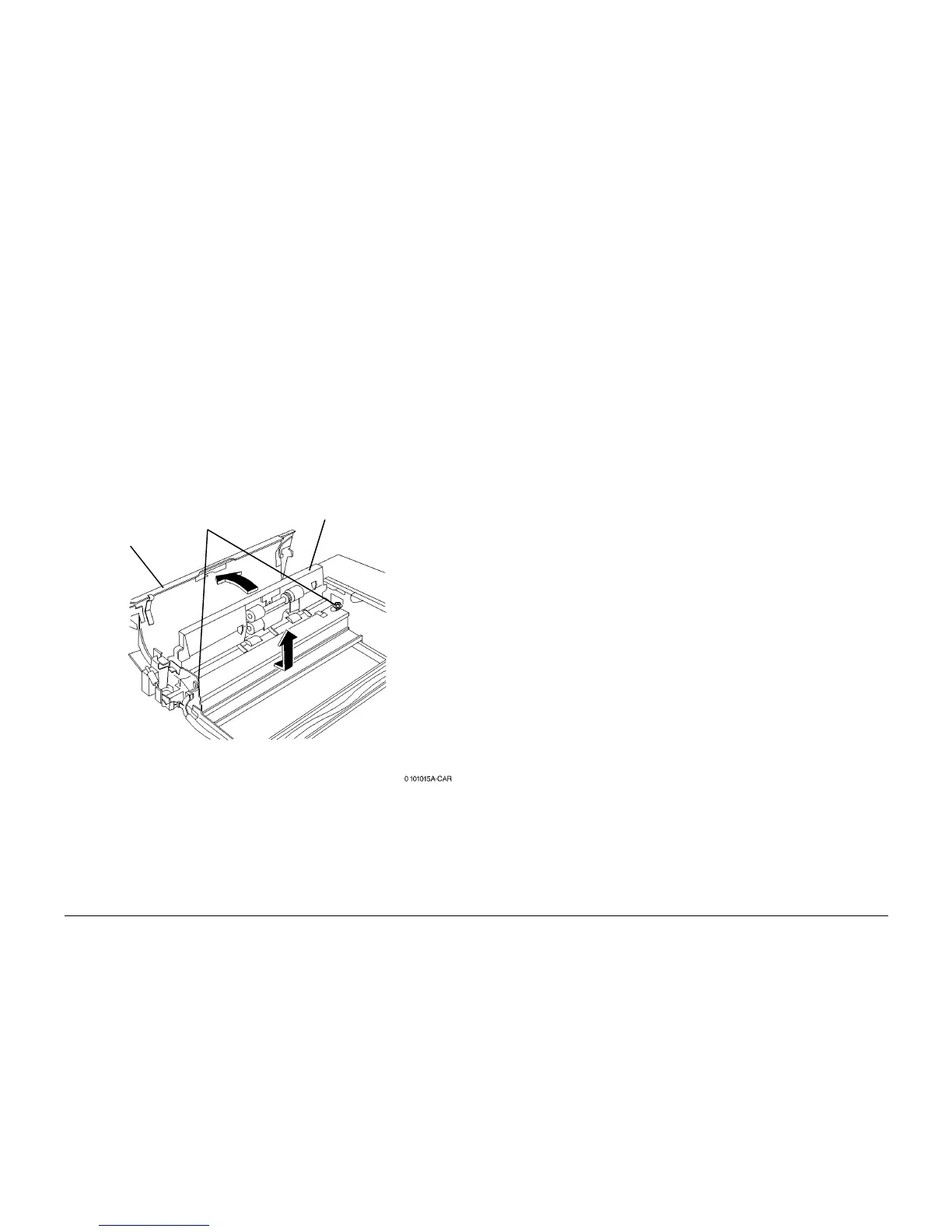

Figure 1 Removing Lower Chute Assembly
Screws (2)
Document Feeder Upper Chute
Top Cover
To Next Page
