Xerox DocuColor 1632 Service Manual

6/02
4-126
DC1632/2240
REP 12.13
Prelaunch Training/Review
Repairs and Adjustments
REP 12.13 Stacker Motor Assembly
Parts List on PL 17.11
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Rear Cover (PL 17.5)
2. Hold Stacker Tray and move Gear to lower the Stack Tray (Figure 1).

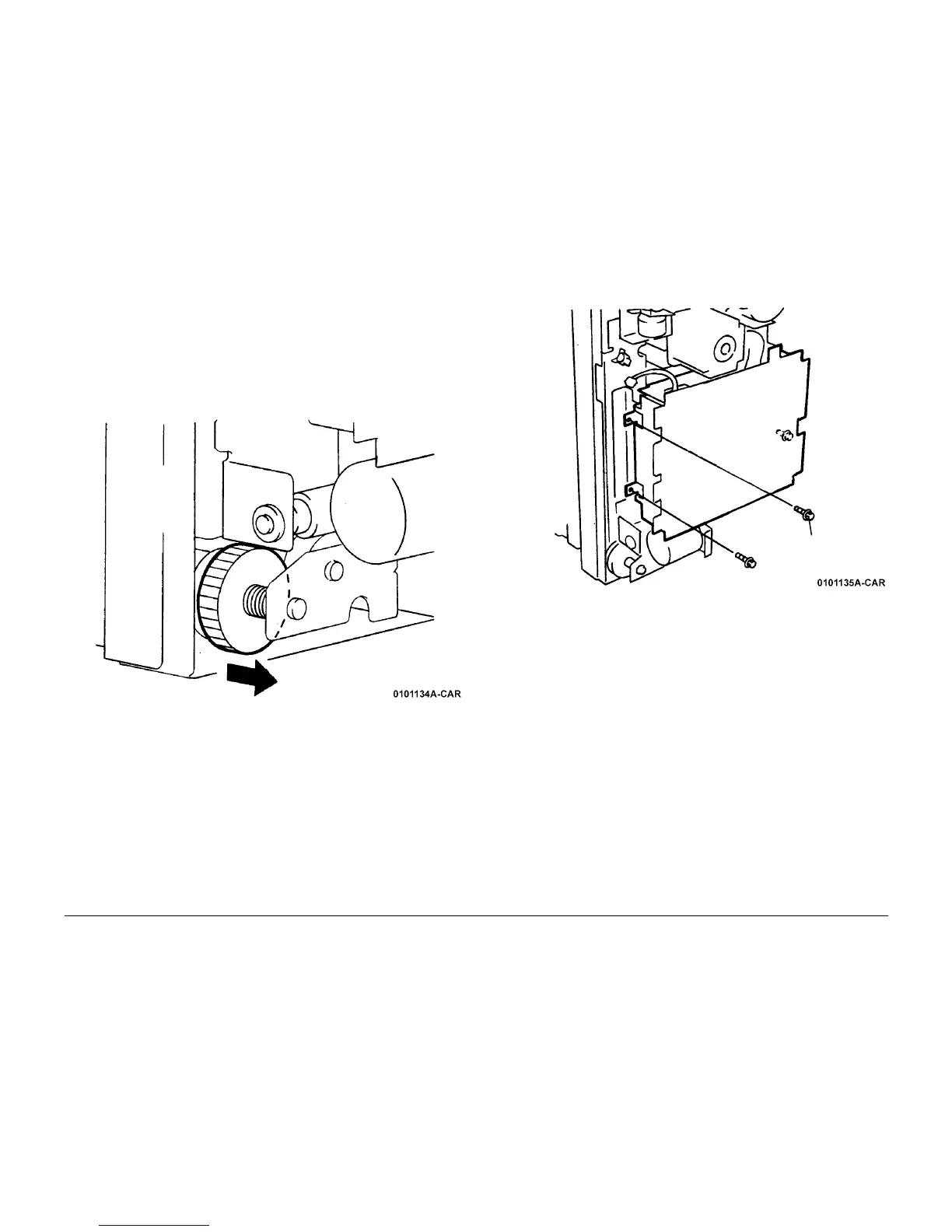

Figure 1 Moving Gear to Lower Stack Tray
3. Remove the screws on PWB Chassis (Figure 2).
Figure 2 Removing Screws on PWB Chassis
1
Loosen
Screw
2
Remove
Screws (2)
