6/02
4-127
DC1632/2240
REP 12.13
Repairs and Adjustments
Prelaunch Training/Review
4. Remove the Stacker Motor Assembly (Figure 3).
a. Remove the screws (3) while sliding the PWB Chassis upward.
b. Slide the Gear.
c. Remove the Stacker Motor Assembly.

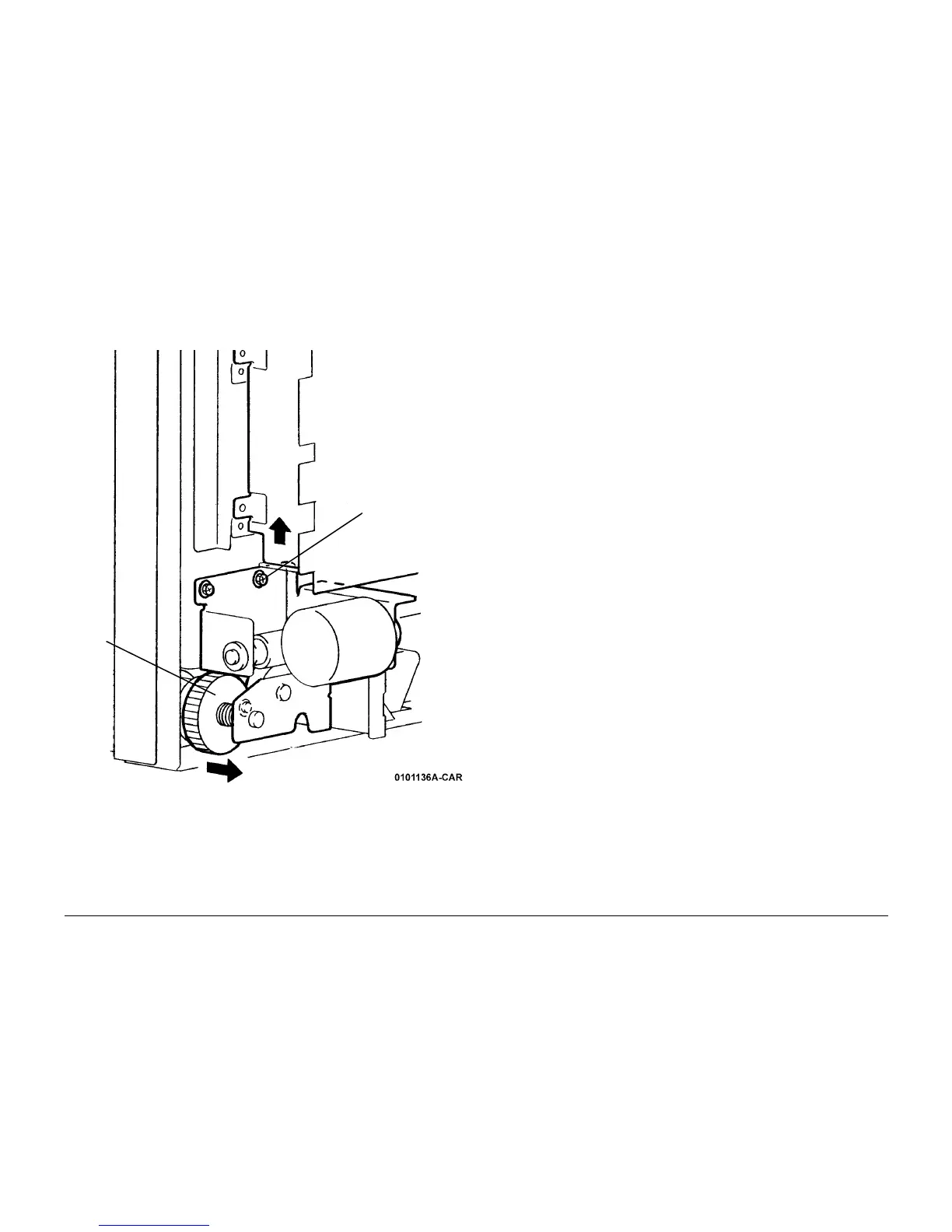

Figure 3 Removing Stacker Motor Assembly
1
Lift PWB Chassis
and Remove
Screws (2)
2
Remove
Screw
(1)
3
Move
Gear and
Remove
Stacker
Motor
Discon-
nect P/J
