Xerox DocuColor 1632

6/02
5-42
DC1632/2240
PL 10.1
Prelaunch Training/Review
Parts List

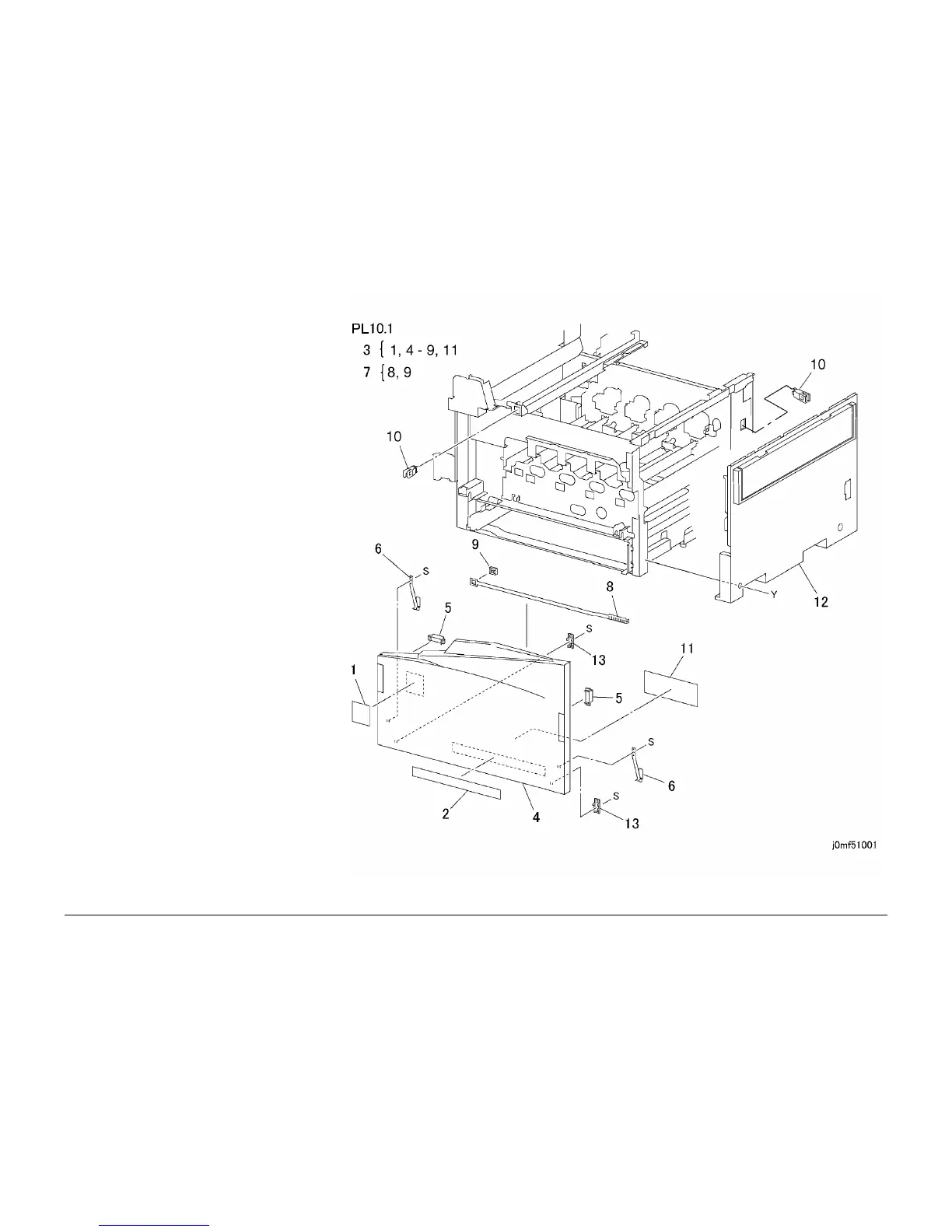

PL 10.1 Front Cover
Item Part Description
1 891E75951 Logo Plate
2 892E78280 Name Plate (16/32)
– 892E78290 Name Plate (22/40)
3 802K46050 Front Cover Assembly (REP 14.7)
4 – Front Cover (P/O PL 10.1 Item 3)
5 – Magnet (P/O PL 10.1 Item 3)
6 – Strip (P/O PL 10.1 Item 3)
7 042K91990 Rod Cleaner Assembly
8 – Rod Cleaner (P/O PL 10.1 Item 7)
9 – Cleaner Base (P/O PL 10.1 Item 7)
10 110E94770 Front Interlock Switch, Right
Interlock Switch
11 – Label (P/O PL 10.1 Item 3)
12 802K46060 Right Cover (REP 14.3)
13 – Hinge (Not Spared)
