PL 9.1
Parts List
Prelaunch Training/Review

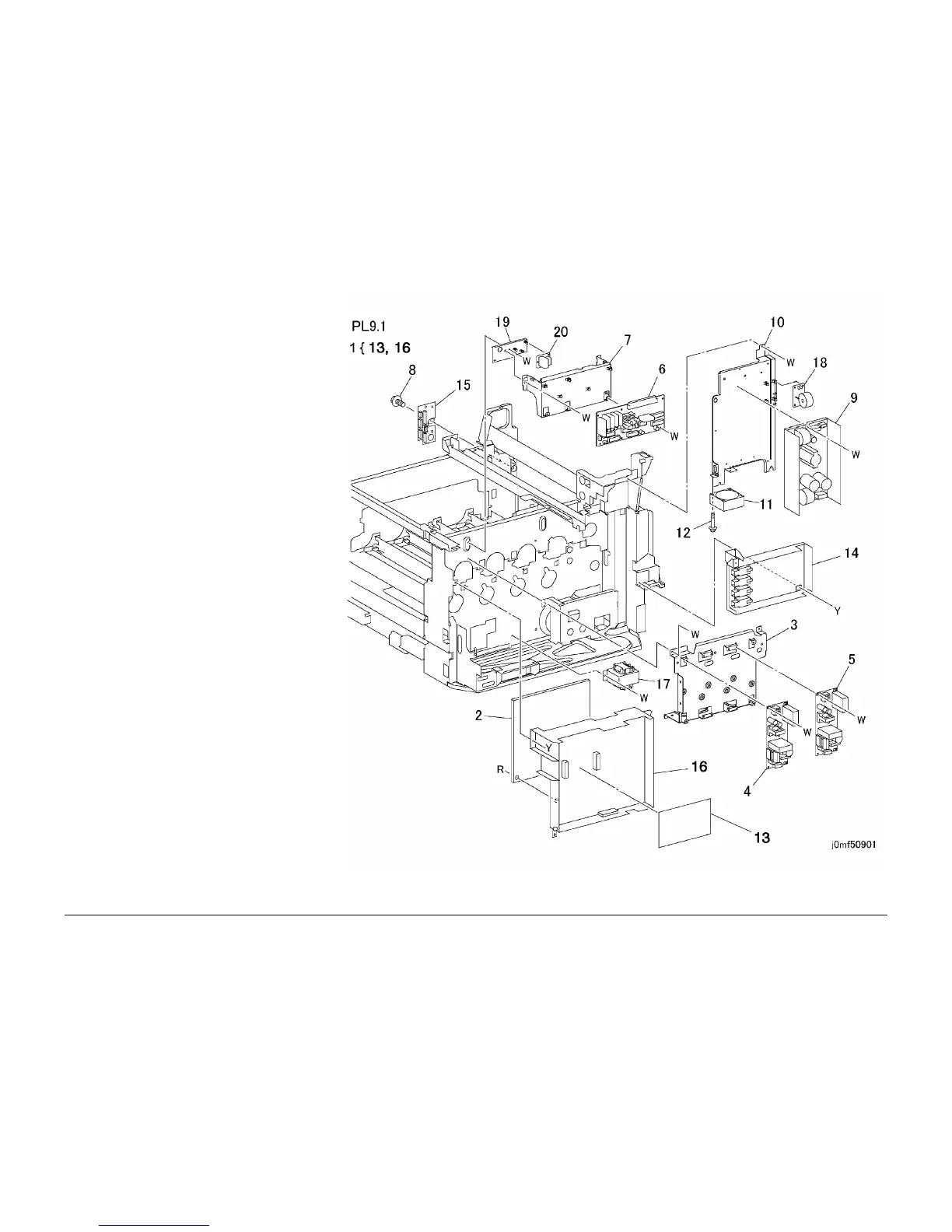

PL 9.1 Electrical Components: 1 of 3
Item Part Description
1 105K18771 HVPS (T5) (REP 1.6 REP 1.7)
2 105E09980 HVPS (T7) (REP 1.6 REP 1.7)
3 – LVPS Bracket (Not Spared) (REP
1.1)
4 105E11130 3.3V LVPS (110V) (REP 1.4)
– 105E09810 3.3V LVPS (220V) (REP 1.4)
5 105E09820 5V LVPS (110V) (REP 1.4)
– 105E09830 5V LVPS (220V) (REP 1.4)
6 160K76802 Interface PWB (REP 1.8)
7 – LVPS Bracket (Not Spared) (REP
1.9)
8 – Screw (Not Spared)
9 105E09760 24V LVPS (220V) (REP 1.5)
– 105K18641 24V LVPS (110V) (REP 1.5)
10 – Bracket (Not Spared) (REP 1.9)
11 127K29330 LVPS Fan
12 – Screw (Not Spared)
13 – HVPS Control PWB (P/O PL 9.1
Item 1)
14 105E09970 HVPS (T6) (REP 1.10)
15 – Connector Chassis (Not Spared)
16 – T5/T7 HVPS Chassis (P/O PL 9.1
Item 1)
17 103E27220 Resistor (220V)
– 104E93610 Choke Coil (110V)
18 160K84400 Fuser Noise Filter
19 – Plate (Not Spared)
20 160K87730 Interlock Relay PWB
