Xerox DocuColor 1632 - REP 14.9 Rear Cover; REP 14.10 Inner Cover

6/02
4-148
DC1632/2240
REP 14.9, REP 14.10
Prelaunch Training/Review
Repairs and Adjustments
REP 14.9 Rear Cover
Parts List on PL 16.16
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Thumbscrews (4).
2. Remove Screws (4) and remove Lower Rear Cover.
REP 14.10 Inner Cover
Parts List on PL 8.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Front Cover (REP 14.8).
3. Remove Waste Cartridge Cover (REP 9.3).
4. Remove Inner Cover (Figure 1).
a. Open Harness Clip and remove harness from Clip.
b. Remove Screw and remove Harness Cover.

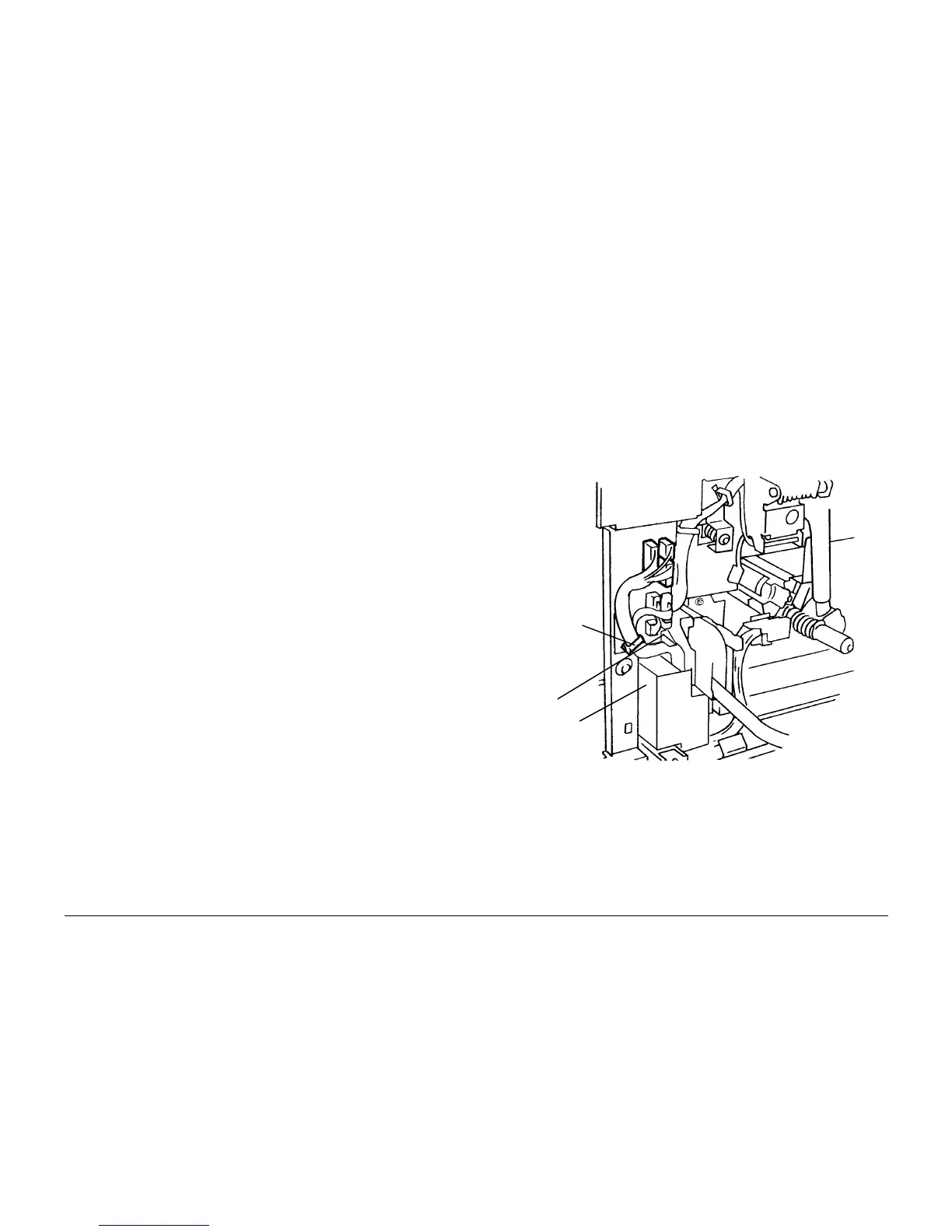

Figure 1 Removing Inner Cover
Harness Clip
Inner
Cover
Screw
