6/02
5-34
DC1632/2240
PL 6.1
Prelaunch Training/Review
Parts List

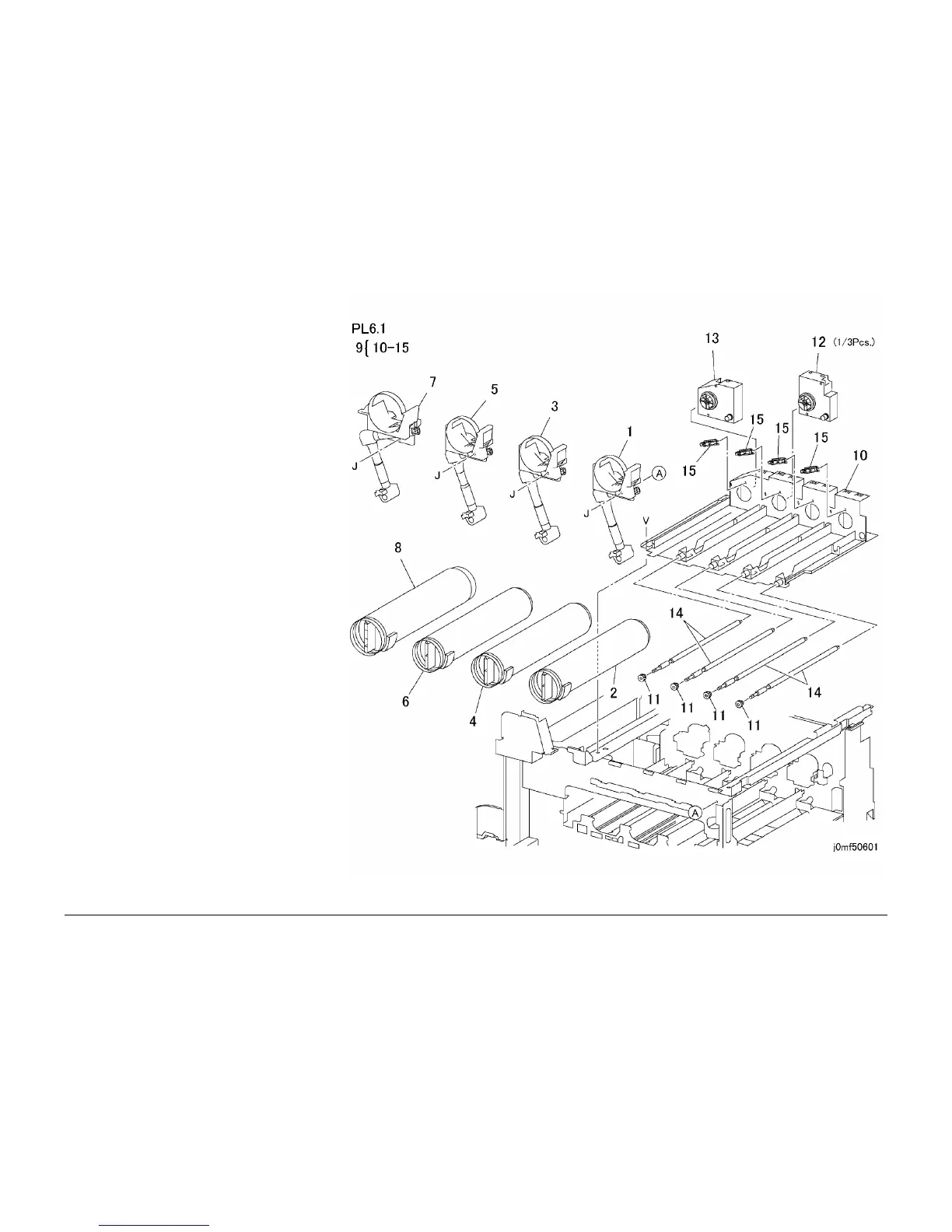

PL 6.1 Developer Unit: 1 of 2
Item Part Description
1 802K45910 Toner Dispenser (Y) (REP 9.7)
2 – Toner Cartridge (Not Spared)
3 802K45920 Toner Dispenser (M) (REP 9.7)
4 – Toner Cartridge (Not Spared)
5 802K45930 Toner Dispenser (C) (REP 9.7)
6 – Toner Cartridge (Not Spared)
7 802K45940 Toner Dispenser (K) (REP 9.7)
8 – Toner Cartridge (Not Spared)
9 802K33090 Toner Dispenser Base Assembly
(REP 9.11)
10 – Toner Dispenser Base (P/O PL 6.1
Item 9)
11 – Gear (P/O PL 6.1 Item 9)
12 127K33930 Toner Dispenser Motor (Y, M, C)
13 127K33940 Toner Dispenser Motor (K)
14 – Shaft (P/O PL 6.1 Item 9)
15 116K90810 New Cartridge Detect Switch
To Next Page
