6/02
4-149
DC1632/2240
REP 14.11, REP 14.12
Repairs and Adjustments
Prelaunch Training/Review
REP 14.11 Left Cover Assembly
Parts List on PL 16.13
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Lower Cover (REP 14.12).
2. Remove Left Cover Assembly (Figure 1).
a. Remove Screws (2) and Straps (2) from frame.
b. Remove Screw (1) and Pivot Support and remove Left Cover Assembly.

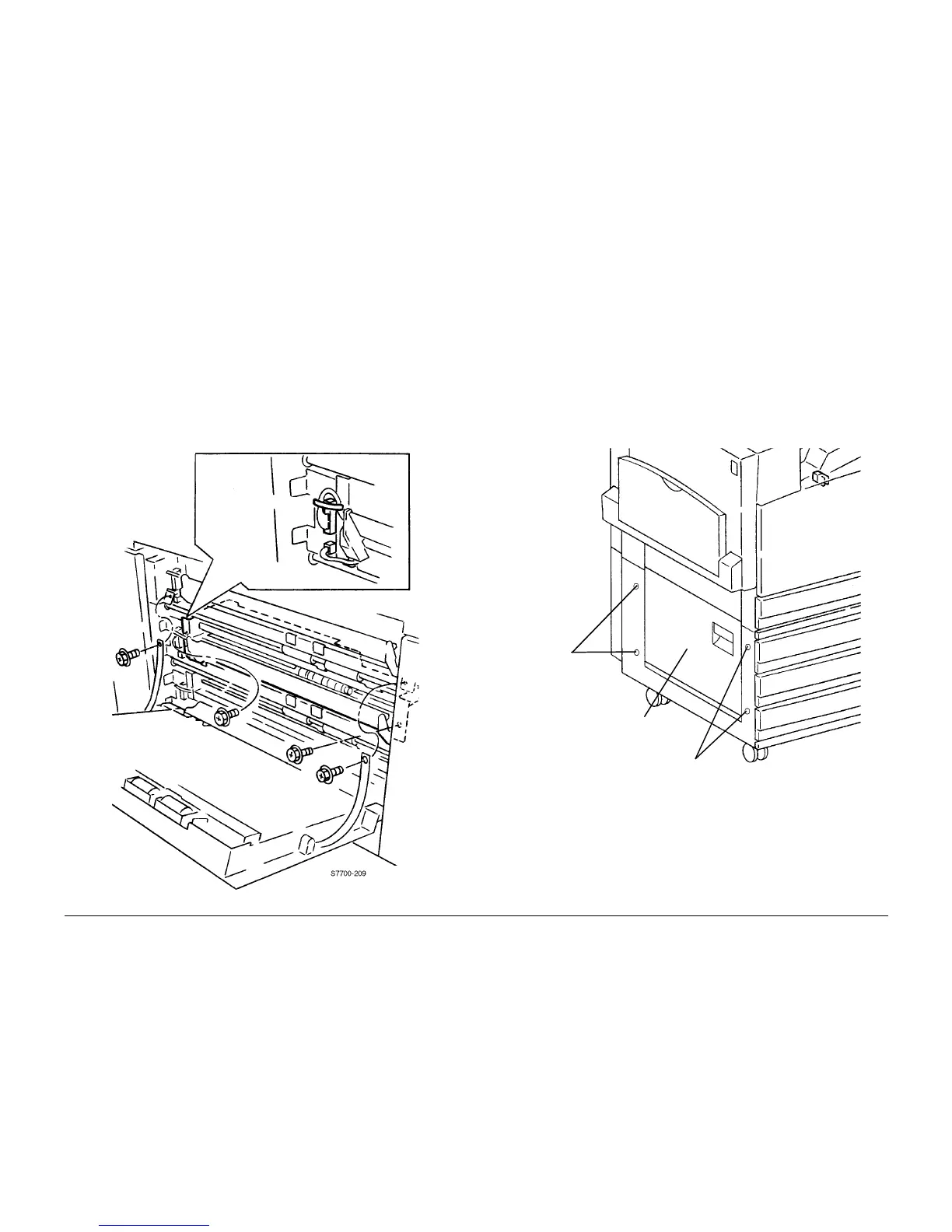

Figure 1 Removing Left Cover Assembly
REP 14.12 Lower Cover
Parts List on PL 16.16
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Lower Cover (Figure 1).
a. Remove Screws (4).
b. Open Left Cover Assembly.
c. Remove Lower Cover.
Figure 1 Removing Lower Cover
Left Cover
Assembly
1
Remove
Screws (2)
Screws (2)
To Next Page
