6/02
5-94
DC1632/2240
PL 20.9
Prelaunch Training/Review
Parts List

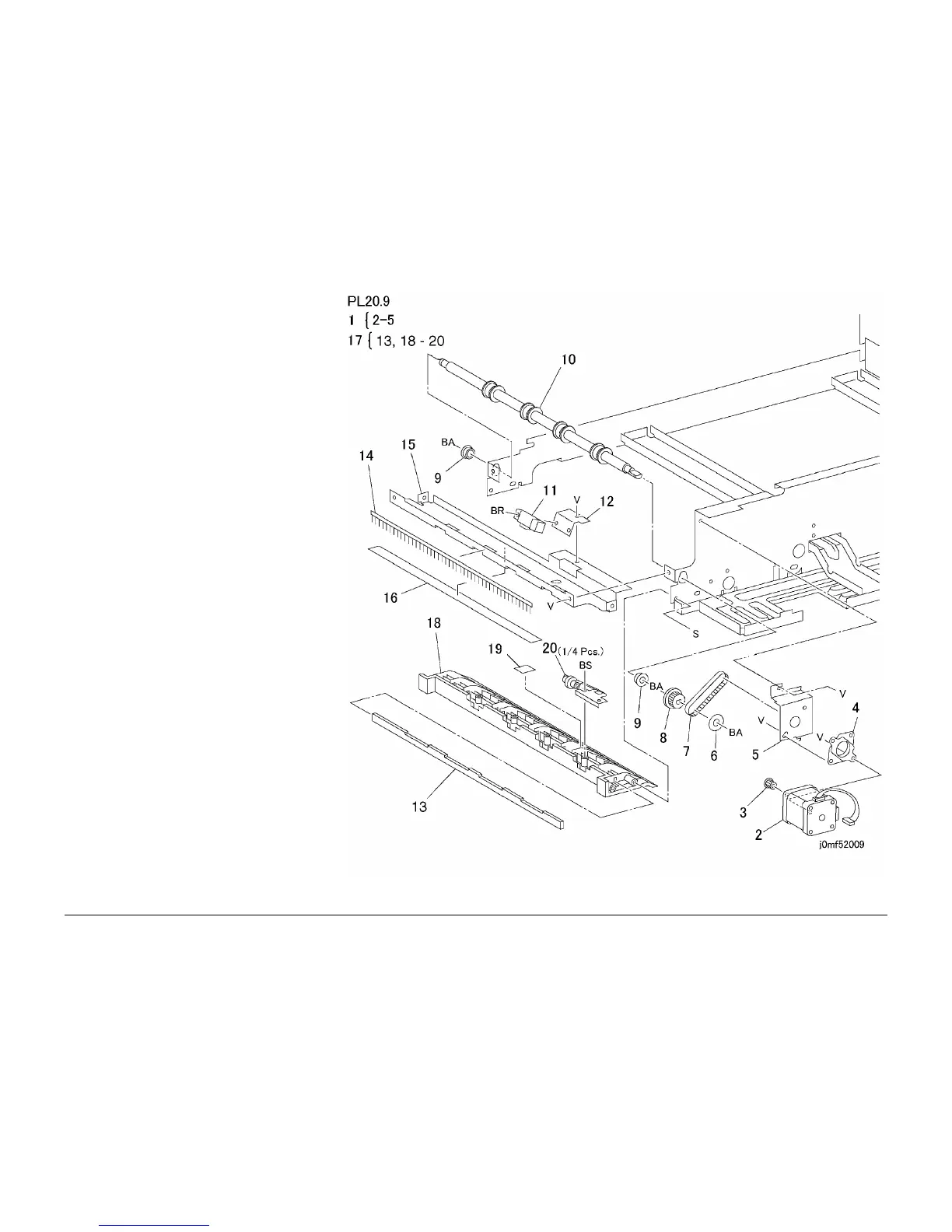

PL 20.9 Exit Motor/Chute
Item Part Description
1 127K32640 Exit Motor Assembly (REP 5.16)
2 – Exit Motor (P/O PL 20.9 Item 1)
3 – Pulley (P/O PL 20.9 Item 1)
4 – Damper (P/O PL 20.9 Item 1)
5 – Bracket (P/O PL 20.9 Item 1)
6 – Spacer (Not Spared)
7 023E20000 Belt
8 020E93230 Pulley
9 – Bearing (Not Spared)
10 059K11860 Exit Roll
11 130K60600 DADF Exit Sensor
12 – Bracket (Not Spared)
13 – Plate (P/O PL 20.9 Item 17)
14 105E06910 Static Eliminator
15 – Exit Upper Chute (Not Spared)
16 055K26060 Document Guard
17 054K13081 Lower Exit Chute
18 – Exit Lower Chute (P/O PL 20.9 Item
17)
19 – Sensor Pad (P/O PL 20.9 Item 17)
20 059K11821 Pinch Roll
To Next Page
