6/02
4-53
DC1632/2240
REP 7.1
Repairs and Adjustments
Prelaunch Training/Review
REP 7.1 Tray 5
Parts List on PL 2.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Remove Power Switch Cover (REP 14.6).
3. Remove Upper Rear Left Cover (REP 14.4).
4. Close Left Door Transport.
5. Remove Tray 5 (Figure 1).
a. Observe position of harness for later reinstallation.
b. Disconnect Tray 5 connector.
c. Disconnect harness Clip from frame.
d. Remove Screws (2).
e. Pull out Tray 5 while applying a small amount of lifting force to right side.

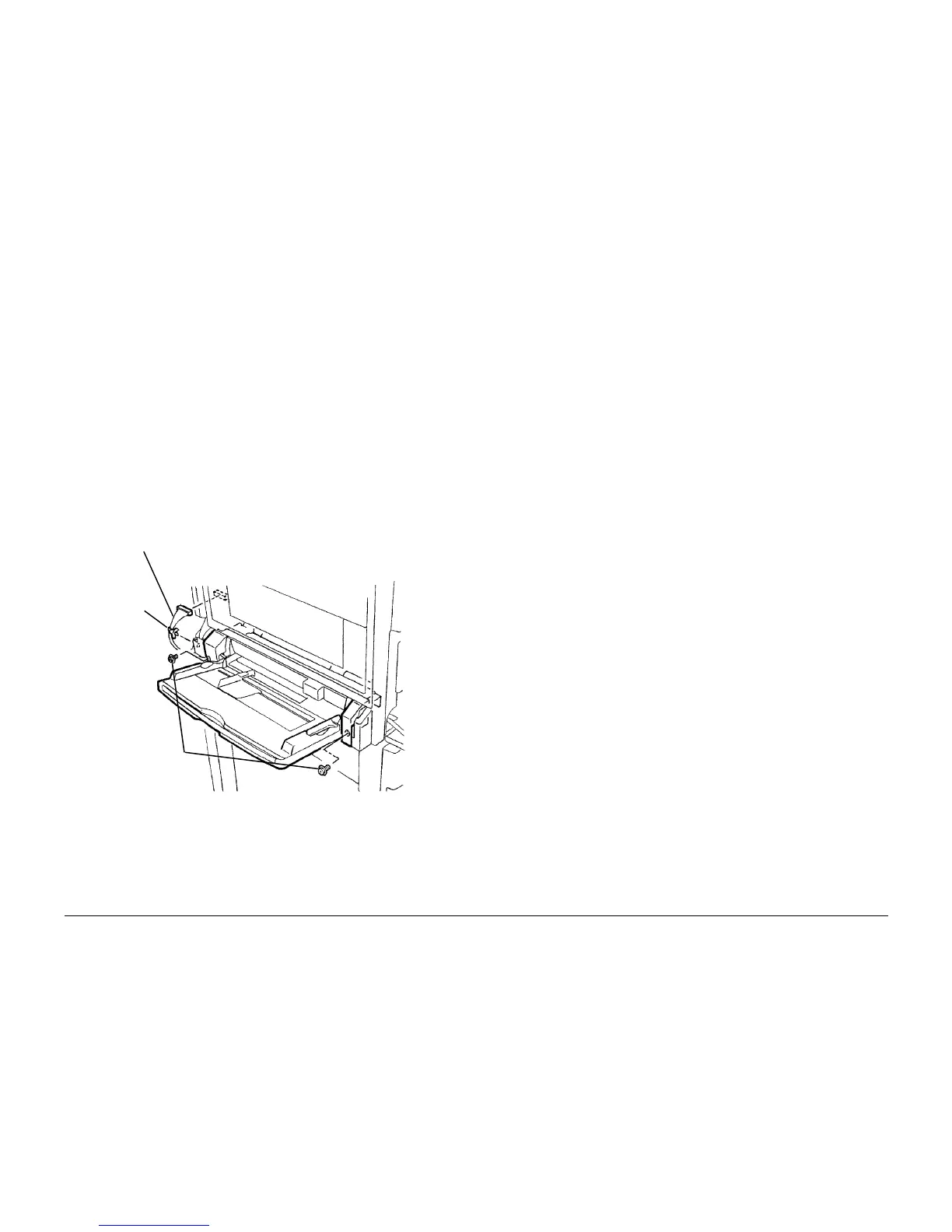

Figure 1 Removing Tray 5
Replacement
CAUTION
Duplex Paper Guide must be in up position before installing Tray 5.
1. Open Left Door Transport. Pivot and hold Duplex Paper Guide against Left Door Trans-
port and then close Left Door Transport.
2. Install Tray 5.
Harness
Clip
Screws (2)
To Next Page
