Xerox DocuColor 1632

6/02
4-106
DC1632/2240
REP 12.6
Prelaunch Training/Review
Repairs and Adjustments
REP 12.6 Eject Roll Assembly
Parts List on PL 17.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the following parts:
a. Rear Cover (PL 17.5)
b. Stacker Tray (PL 17.1)
c. Right Cover (PL 17.5)
d. Front Cover (PL 17.5)

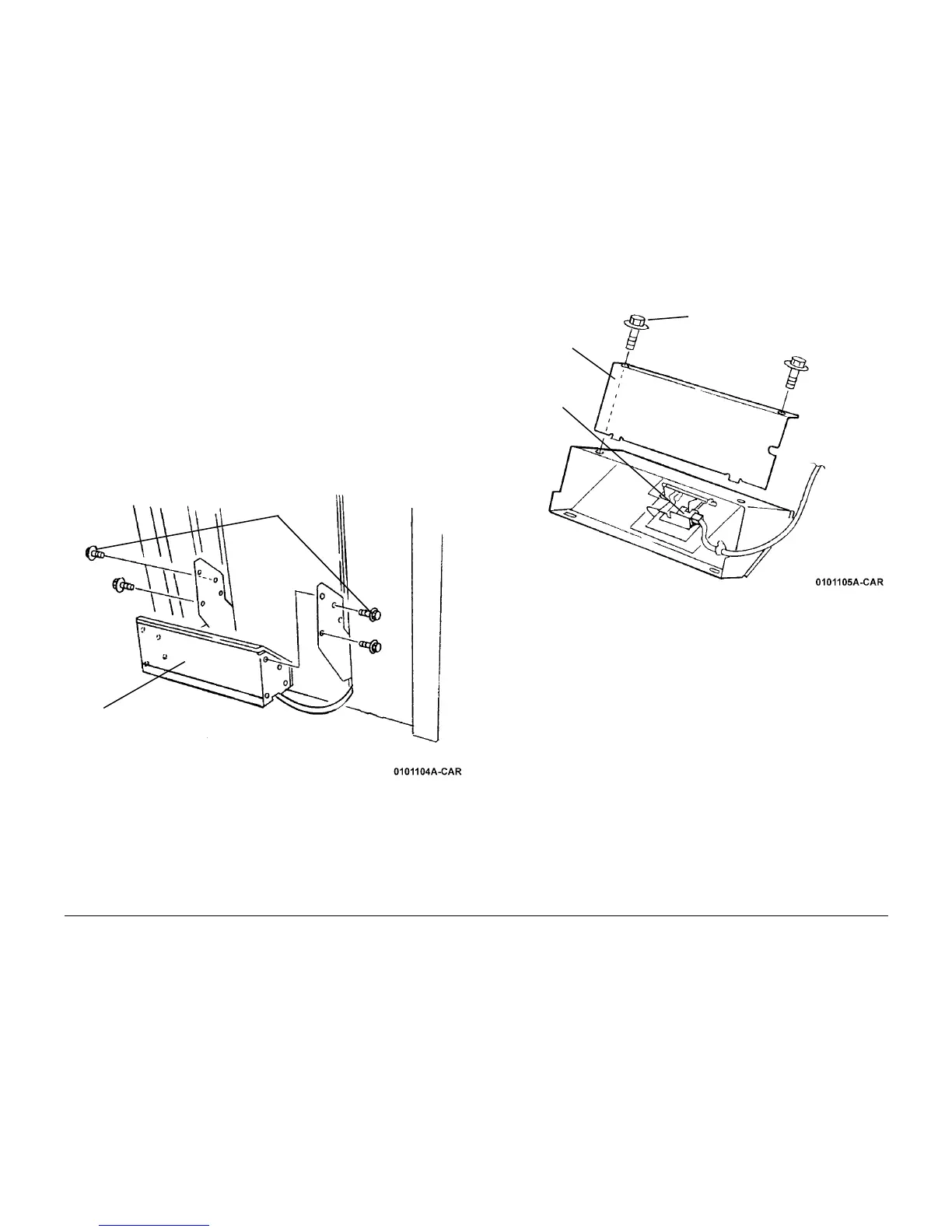

2. Remove the Bracket (Figure 1).
Figure 1 Remove the Bracket
3. Disconnect P/J (Figure 2).
Figure 2 Disconnecting P/J
1
Remove
Screws (4)
2
Remove
Bracket
1
Remove
Screw (2)
2
Remove
Plate
3
Disconnect
P/J
