Xerox DocuColor 1632 Service Manual

6/02
4-107
DC1632/2240
REP 12.6
Repairs and Adjustments
Prelaunch Training/Review
4. Remove the Thumbscrews (2) (Figure 3).

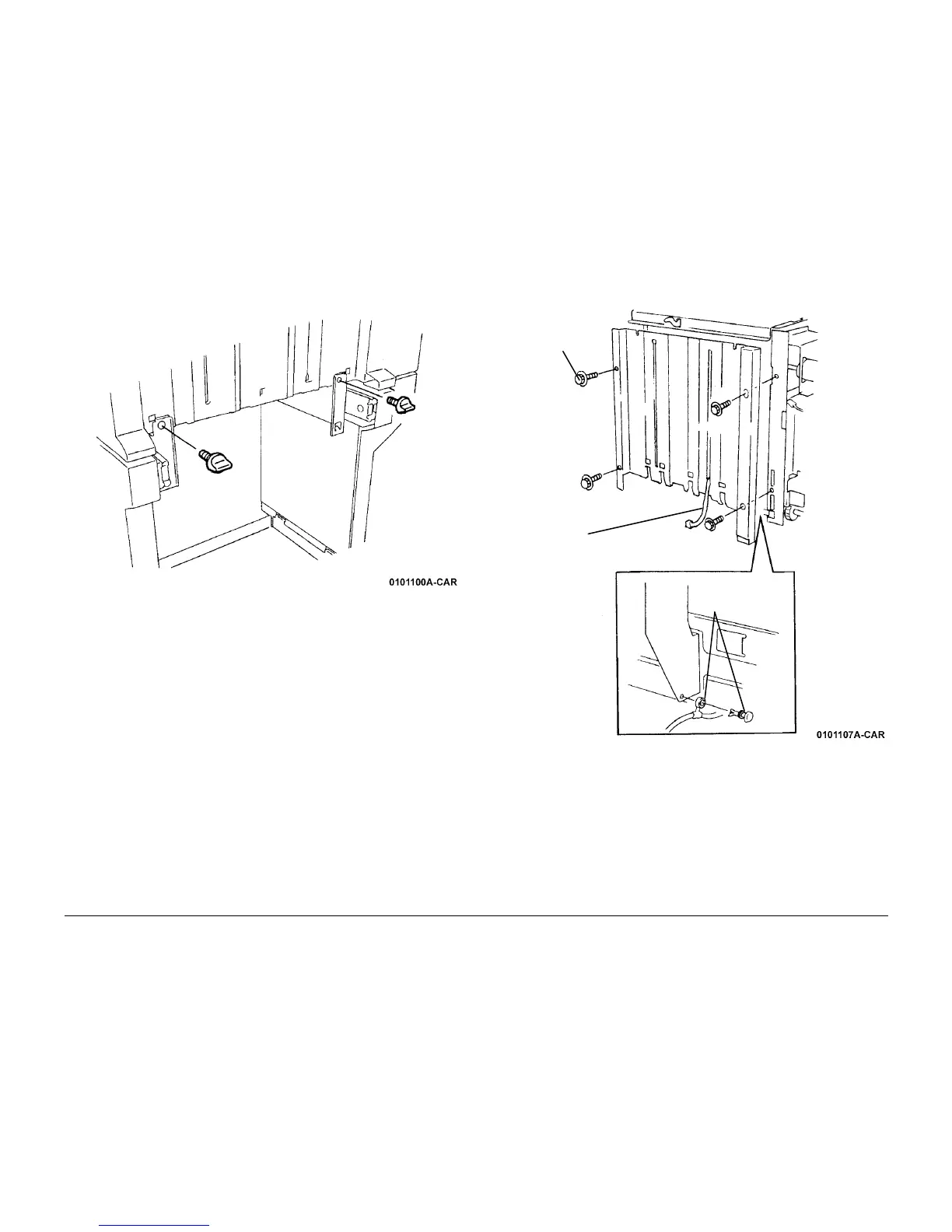

Figure 3 Removing Thumbscrews
5. Remove the Tray Guide (Figure 4).
Figure 4 Removing Tray Guide
1
Remove
Screws (4)
2
Remove Fastener
and Cable Clamp
3
Remove Cable
from Cover and
remove Cover
