Xerox DocuColor 1632 Service Manual

6/02
4-108
DC1632/2240
REP 12.6
Prelaunch Training/Review
Repairs and Adjustments
6. Remove the Sensor (Figure 5).

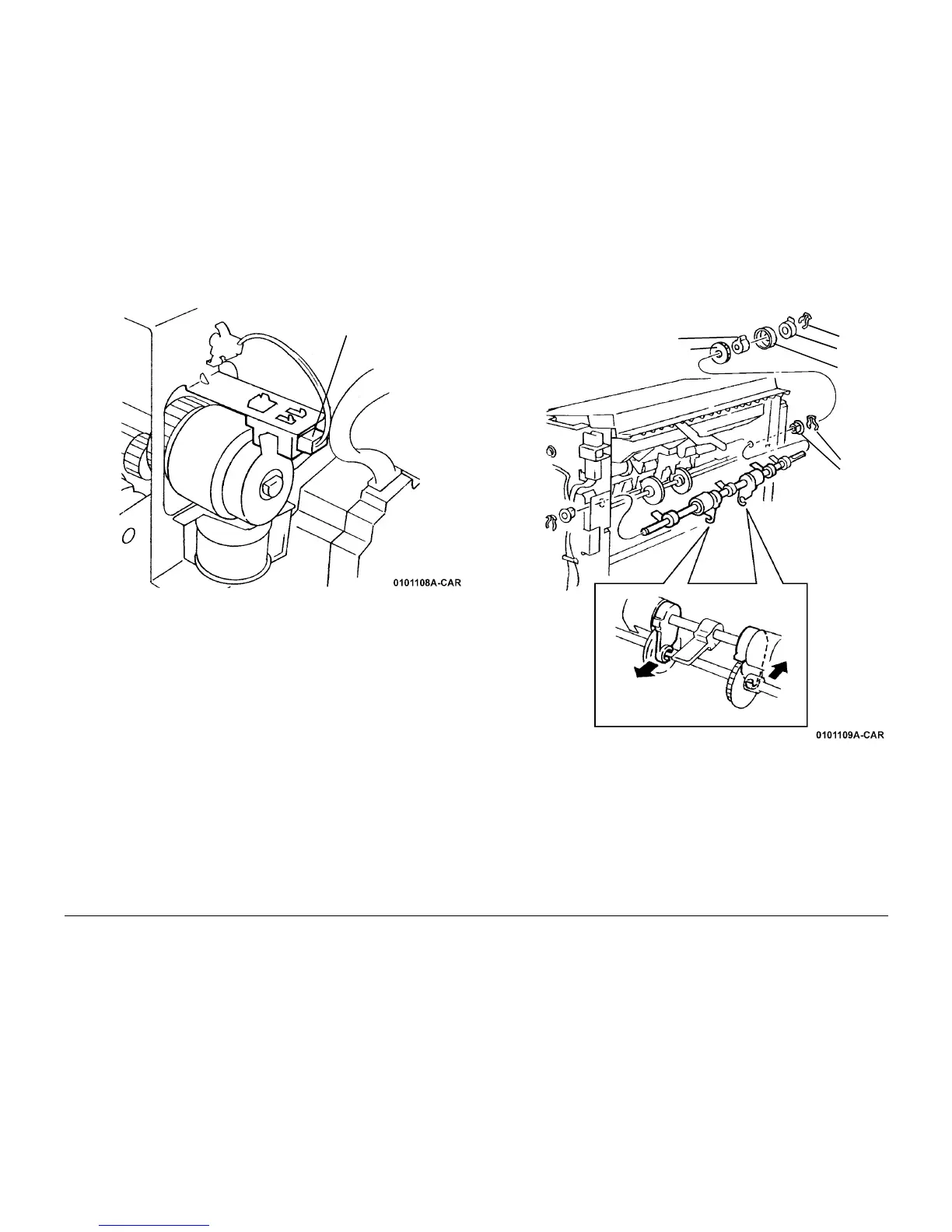

Figure 5 Remove Sensor
7. Remove Eject Roll (Figure 6).
Figure 6 Removing Eject Roll
Disconnect harness
and remove Sensor
1
Remove
Clip,
Actuator,
and
Clutch
2
Remove
Collar
and Gear
3
Remove
Clip and
Bearing
from
both
ends
4
Disconnect Hook (2) from Eject
Shaft and remove Eject Roll
