6/02
4-41
DC1632/2240
REP 6.1
Repairs and Adjustments
Prelaunch Training/Review
REP 6.1 ROS
Parts List on PL 3.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Right Cover (REP 14.3).
2. Remove Rear Cover (REP 14.2).
CAUTION
Image quality defects result if covers on ROS cleaning openings are removed.
3. Remove ROS (Figure 1).
a. Carefully observe position of wiring harness for later reinstallation.
b. Remove Harness from Harness Clips.
c. Disconnect Harness P/JÃs (2).
d. Remove Screws (2).
e. Pull out ROS to remove it.

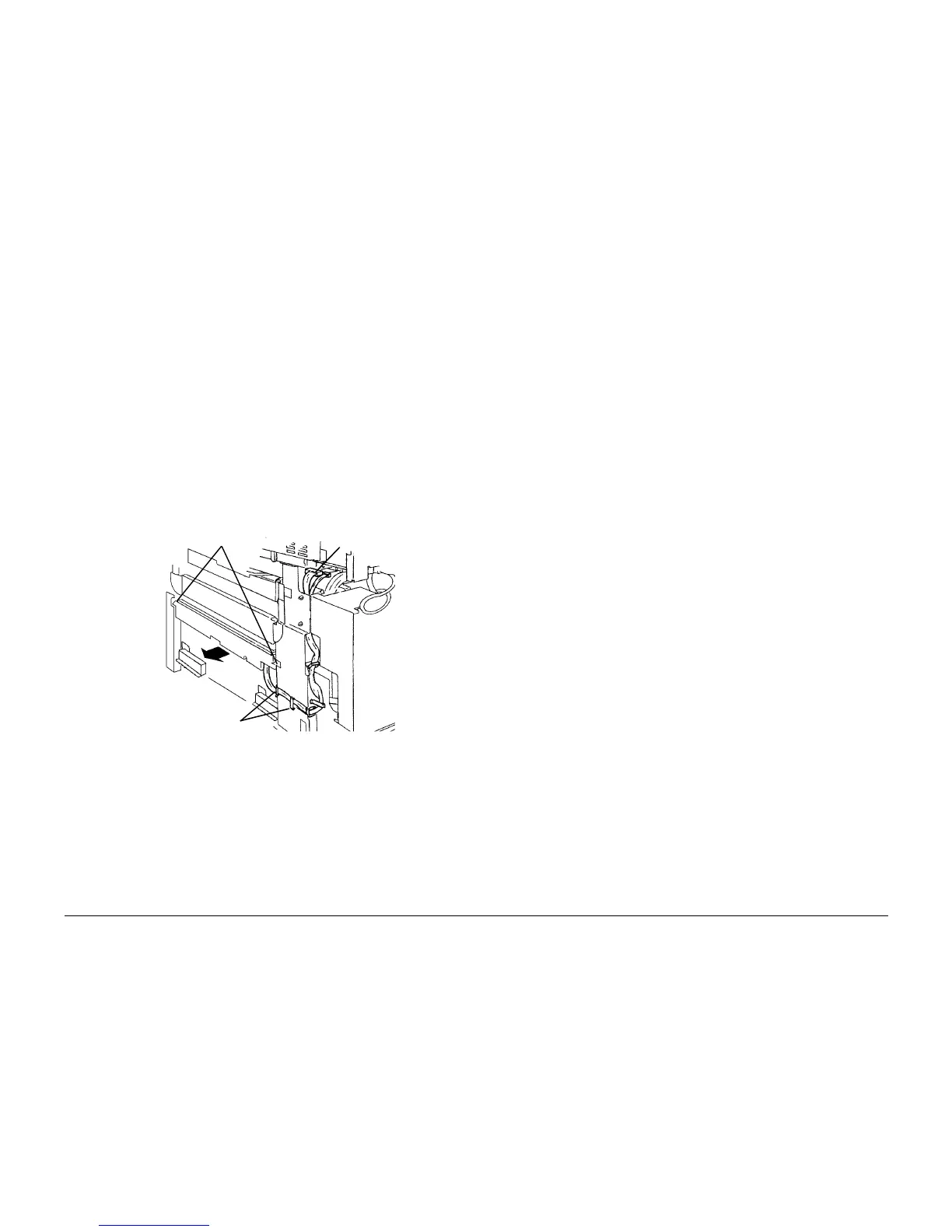

Figure 1 Removing ROS
Replacement
After machine reassembly perform following:
1. DC956 Belt Edge.
2. DC685 Color Registration Control (ADJ 9.6).
Harness Clips
P/JÃs
Screws (2)
To Next Page
