6/02
4-23
DC1632/2240
REP 5.6
Repairs and Adjustments
Prelaunch Training/Review
REP 5.6 Nudger Roll
Parts List on PL 20.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. To install new Nudger Rolls, go to Feed Roll Assembly (REP 5.7) at this time and replace
the Nudger Rolls and Feed Rolls as an assembly. Otherwise, continue below.
2. Open DADF Top Cover and remove Inner Cover (Figure 1).
a. Open Top Cover.
b. Loosen screws (2).
c. Remove Inner Cover.

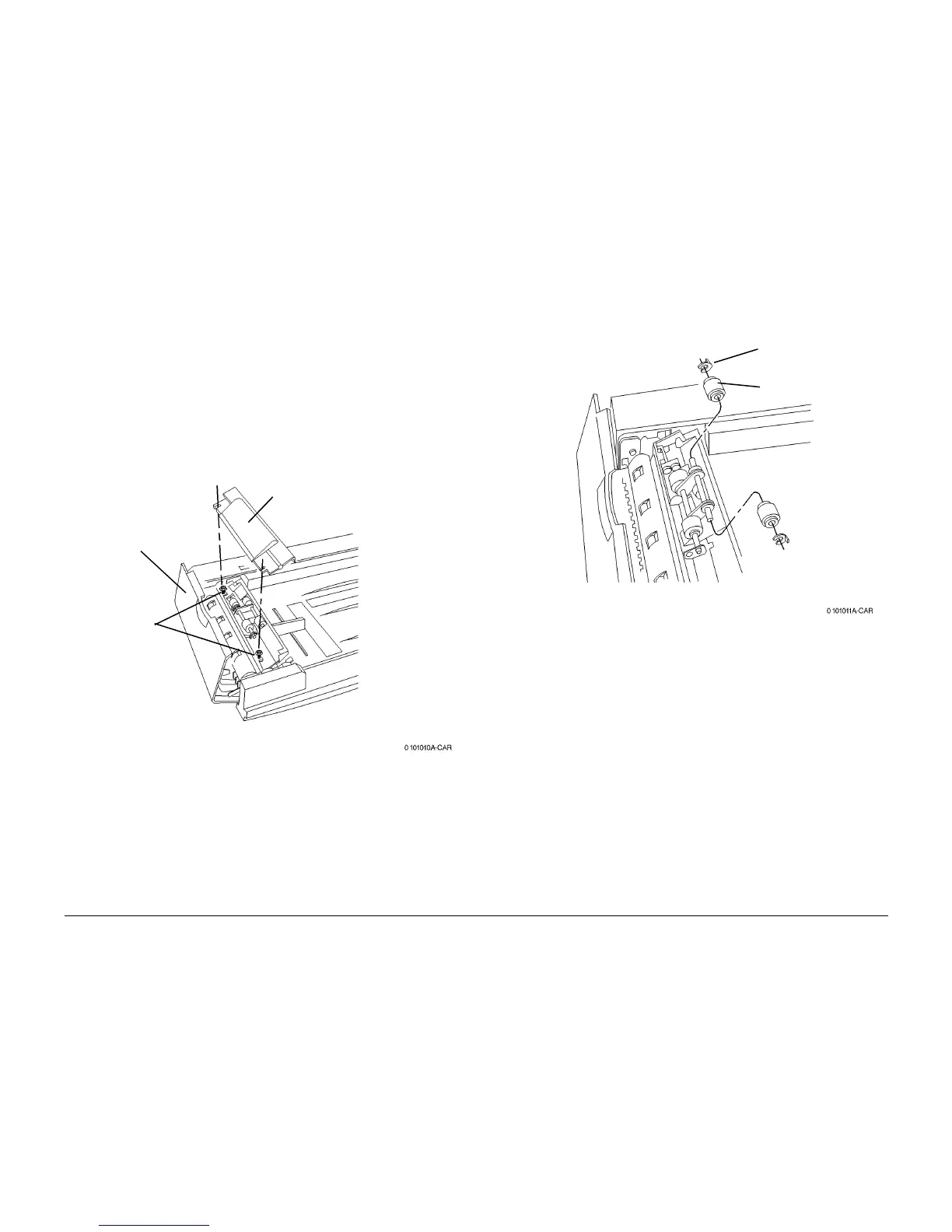

Figure 1 Removing Inner Cover
3. Remove Nudger Rolls (Figure 2).
a. Remove Clips (2).
b. Remove Nudger Rolls (2).
Figure 2 Remove Nudger Rolls
Replacement
NOTE: Nudger Rolls rotate freely in direction of document movement.
NOTE: After replacing Nudger Roll, reset HFSI counter. Enter dC135 HFSI Counters Diag.
Screen (NVM 005-80).
NOTE: Replace Feed Roll Assembly (REP 5.7).
Top
Cover
Screws
(2)
Inner
Cover
Clip
Nudger
Roll
To Next Page
