6/02
5-43
DC1632/2240
PL 10.2
Parts List
Prelaunch Training/Review

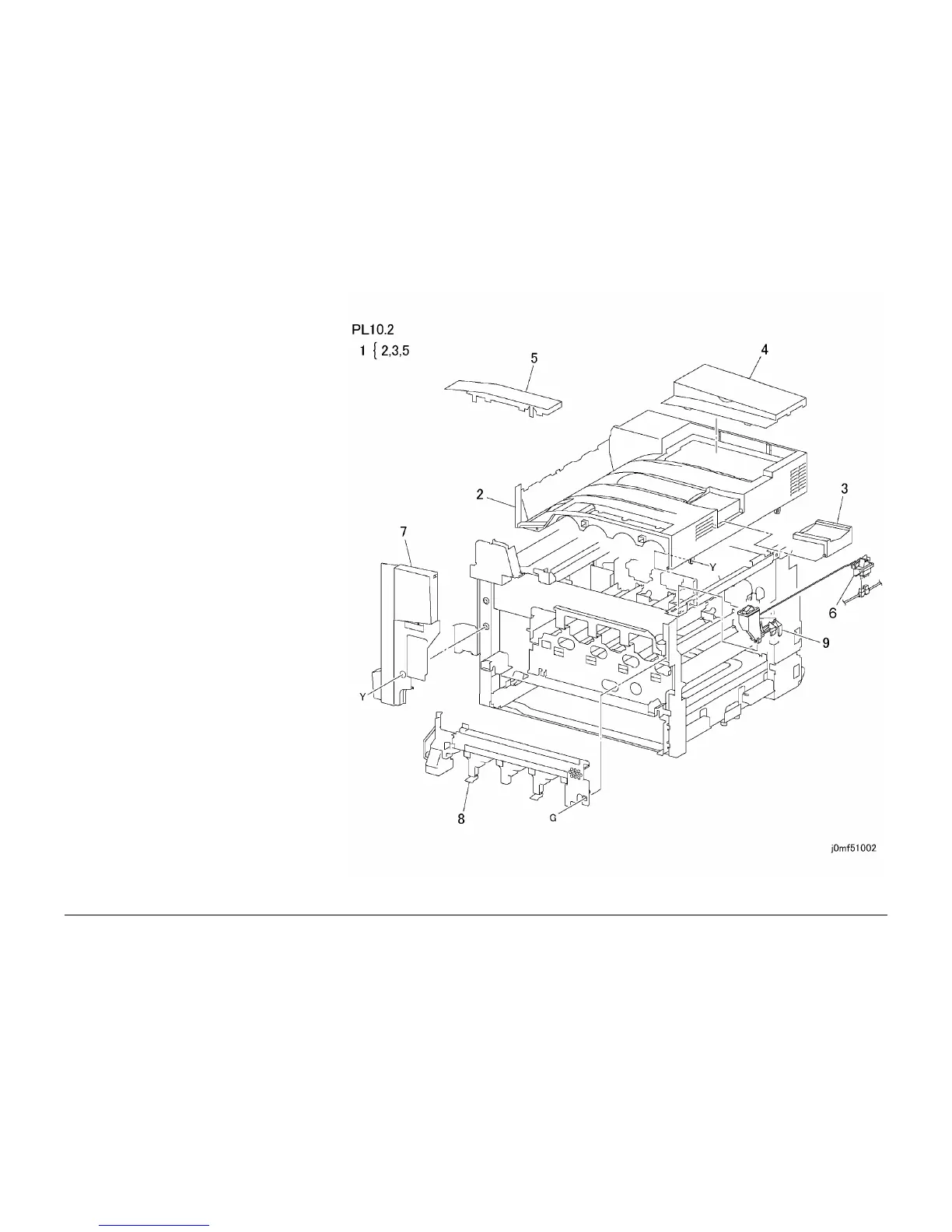

PL 10.2 Top Covers and Inner Covers
Item Part Description
1 802K29610 Top Cover Assembly (REP 14.1)
2 – Top Cover (P/O PL 10.2 Item 1)
3 – Stop (P/O PL 10.2 Item 1)
4 802E12400 Connector Cover
5 – Panel (P/O PL 10.2 Item 1)
6 110K11211 Main Power Switch
7 802E12430 Fuser Cover (REP 14.8)
8 802K45710 Inner Cover (REP 9.6)
9 012K94260 Link
To Next Page
