6/02
5-17
DC1632/2240
PL 2.8
Parts List
Prelaunch Training/Review

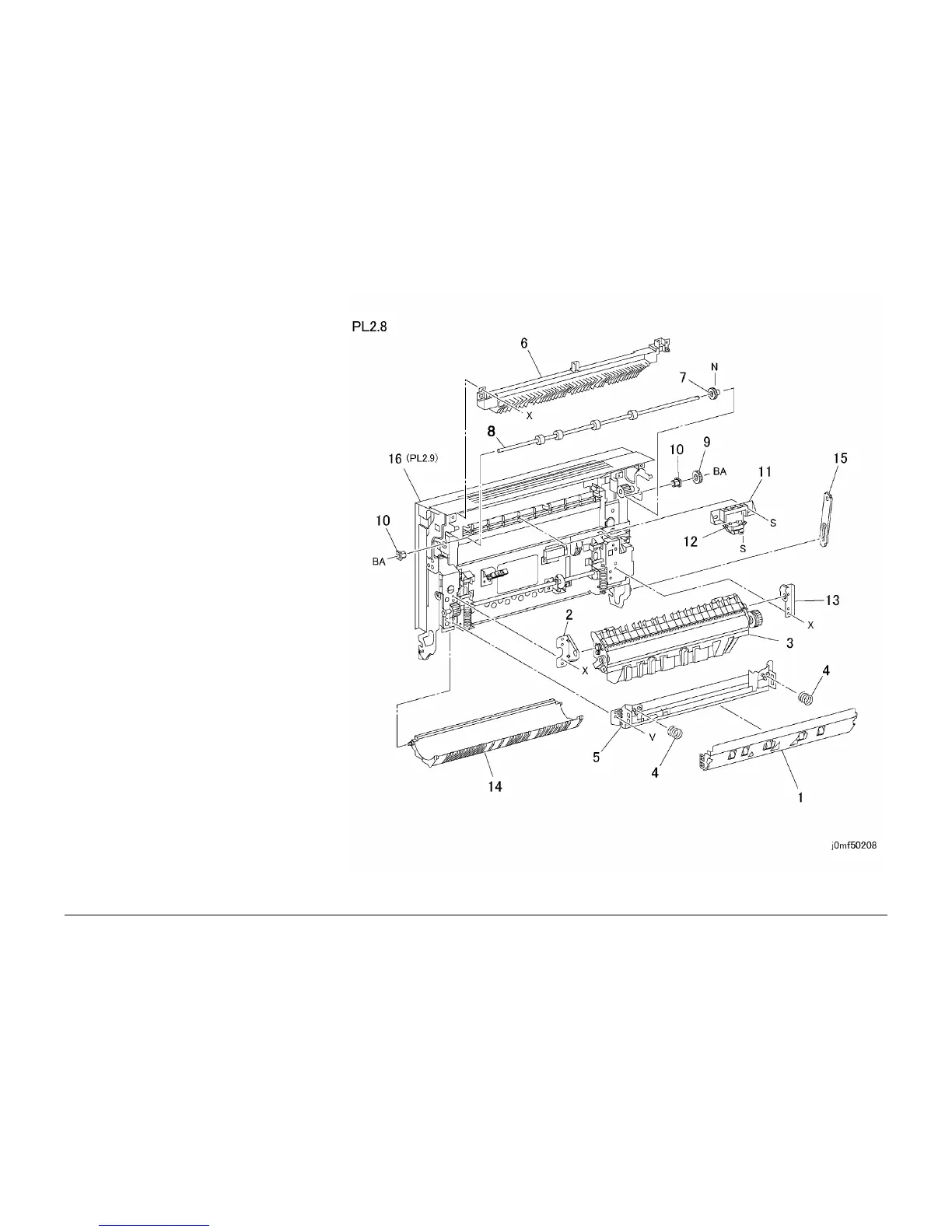

PL 2.8 Left Cover Assembly: 1 of 2
Item Part Description
1 054K22410 Registration Chute
2 – Holder (Not Spared)
3 604K07070 2nd BTR (REP 8.1)
4 809E29620 Spring
5 015K48381 Support
6 054E16330 Exit Chute
7 007E62630 Gear (22T)
8 059K15611 Exit Roll
9 007E75201 Gear
10 – Bearing (Not Spared)
11 – Holder (Not Spared)
12 110K10650 Fuser Exit Switch
13 – Holder (Not Spared)
14 054K16130 Duplex Chute (REP 8.2)
15 – Stop (Not Spared)
16 – Left Cover (Not Spared)
To Next Page
