Xerox DocuColor 1632 Service Manual

6/02
5-29
DC1632/2240
PL 5.2
Parts List
Prelaunch Training/Review

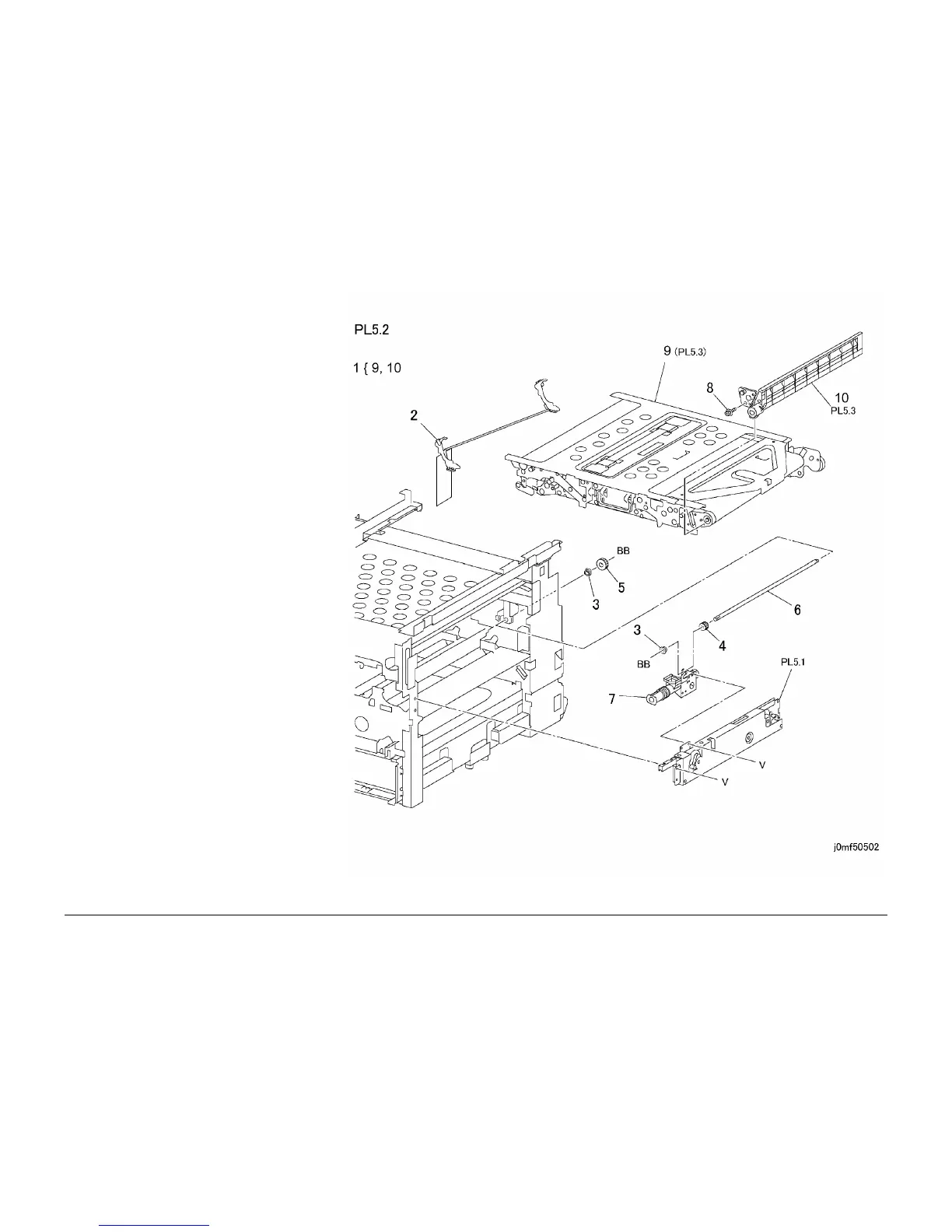

PL 5.2 IBT Unit
Item Part Description
1 604K07050 IBT Belt Assembly (REP 9.15,ADJ
9.6)
2 003K12650 Removal Support
3 – Bearing (Not Spared)
4 007E61910 Gear (14T)
5 007E61890 Gear (18T)
6 – Shaft (Not Spared)
7 802K12950 Auger Assembly (REP 9.17)
8 – Screw (Not Spared)
9 – IBT Belt Assembly (P/O PL 5.2 Item
1)
10 604K07060 IBT Belt Cleaner Assembly
