6/02
4-179
DC1632/2240
ADJ 9.14
Repairs and Adjustments
Prelaunch Training/Review
ADJ 9.14 Inboard/Outboard Density
Purpose
To perform the ROS In/Out light quantity correction with this adjustment, when IN/Out densities
are different but the parameters other than ROS light quantity judges that all is normal.
Adjustment
1. Enter dC612.
2. Select the Test Pattern in the modes as shown below and print out the test pattern.
ï Pattern name: Binary highlight PG LUT: C-TRA On IOT ON
(Pattern No 13??? 25?)
ï Color Mode: 4C
ï Cin (%): 20%
ï Number of prints: 1
ï Tray: Tray 1/A4LEF
ï Resolution: Not specified
ï Binary ED screen
ï Print: single mode
3. Select the pattern that has the same inclination on the four check points in the test pattern
from the 20 patterns below.
Write down the Pattern number. (Vertical axis shows density, and horizontal axis shows
width direction in the pattern)

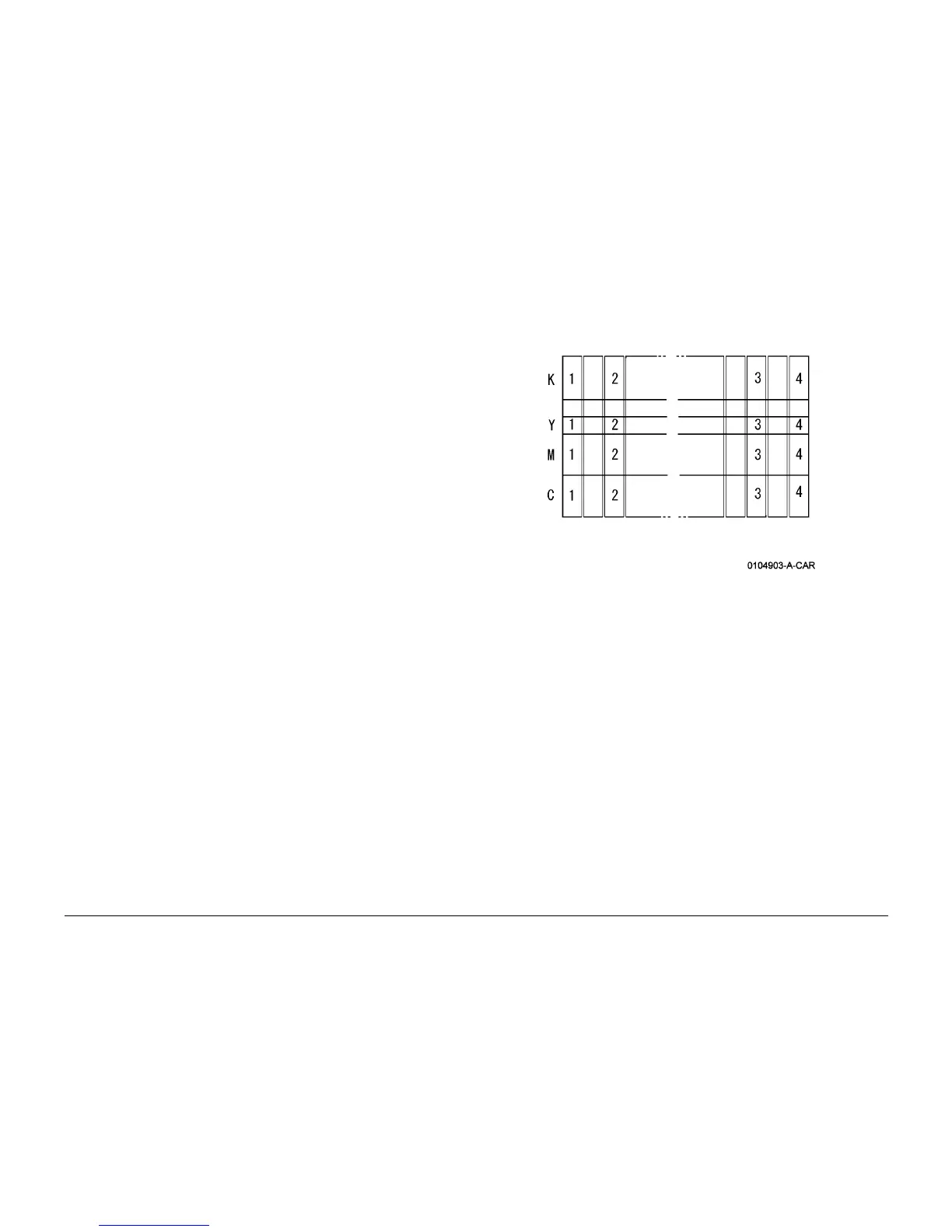

Figure 1 Check Point
To Next Page
