Xerox DocuColor 1632 Service Manual

6/02
4-81
DC1632/2240
REP 9.18, REP 9.19
Repairs and Adjustments
Prelaunch Training/Review
REP 9.18 Lever
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Front Cover (REP 14.8).
3. Remove Waste Cartridge (REP 9.4).
4. Remove Waste Cartridge Cover (REP 9.3).
5. Remove Inner Left Harness Cover (REP 14.10).
6. Release and move Xerographic Release Lever down.
7. Remove Drum Cartridges.
8. Remove Right Cover (REP 14.3).
9. Remove Belt Module (REP 9.15).
10. Remove Xerographic Release Lever (Figure 1).
a. Remove Screw, Washer, and Hinge Pin.
b. Remove E-Ring and Hinge Pin.
c. Remove Xerographic Release Lever.

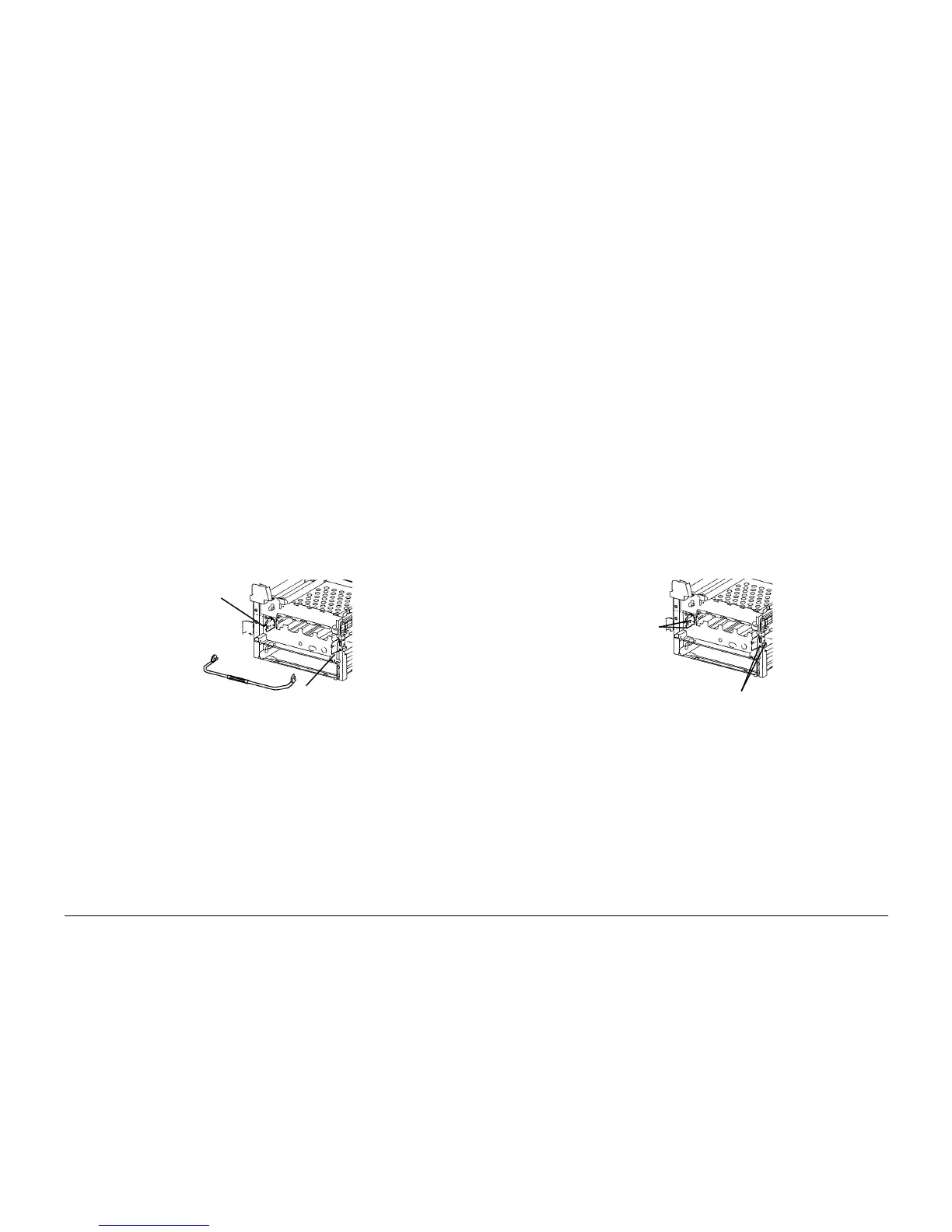

Figure 1 Removing Xerographic Release Lever
Replacement
Move Xerographic Release Lever to down position before reinstalling Belt Module.
REP 9.19 Left Hinge/Right Hinge
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Front Cover (REP 14.8).
3. Remove Waste Cartridge (REP 9.4).
4. Remove Waste Cartridge Cover (REP 9.3).
5. Remove Inner Left Harness Cover (REP 14.10).
6. Release and move Xerographic Release Lever down.
7. Remove Drum Cartridges.
8. Remove Right Cover (REP 14.3).
9. Remove Belt Module (REP 9.15).
10. Remove Xerographic Release Lever (REP 9.18).
11. Remove Xerographic Release Lever Brackets (Figure 1).
a. Remove Screws (2) and remove Bracket.
b. Remove Screws (2) and remove Bracket.
Figure 1 Removing Xerographic Release Lever
Replacement
Move Xerographic Release Lever to down position before reinstalling Belt Module.
Screw, Washer,
Hinge Pin
E-Ring,
Hinge Pin
Screws
(2)
Screws
(2)
