Xerox DocuColor 1632 Service Manual

6/02
4-18
DC1632/2240
REP 5.2
Prelaunch Training/Review
Repairs and Adjustments
REP 5.2 Registration Gate Solenoid
Parts List on PL 20.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Front Cover (PL 20.1).
2. Remove Registration Gate Solenoid (Figure 1).
a. Disconnect connector.
b. Release clamps (2) and remove wire.
c. Loosen screws (2).
d. Remove Registration Gate Solenoid.

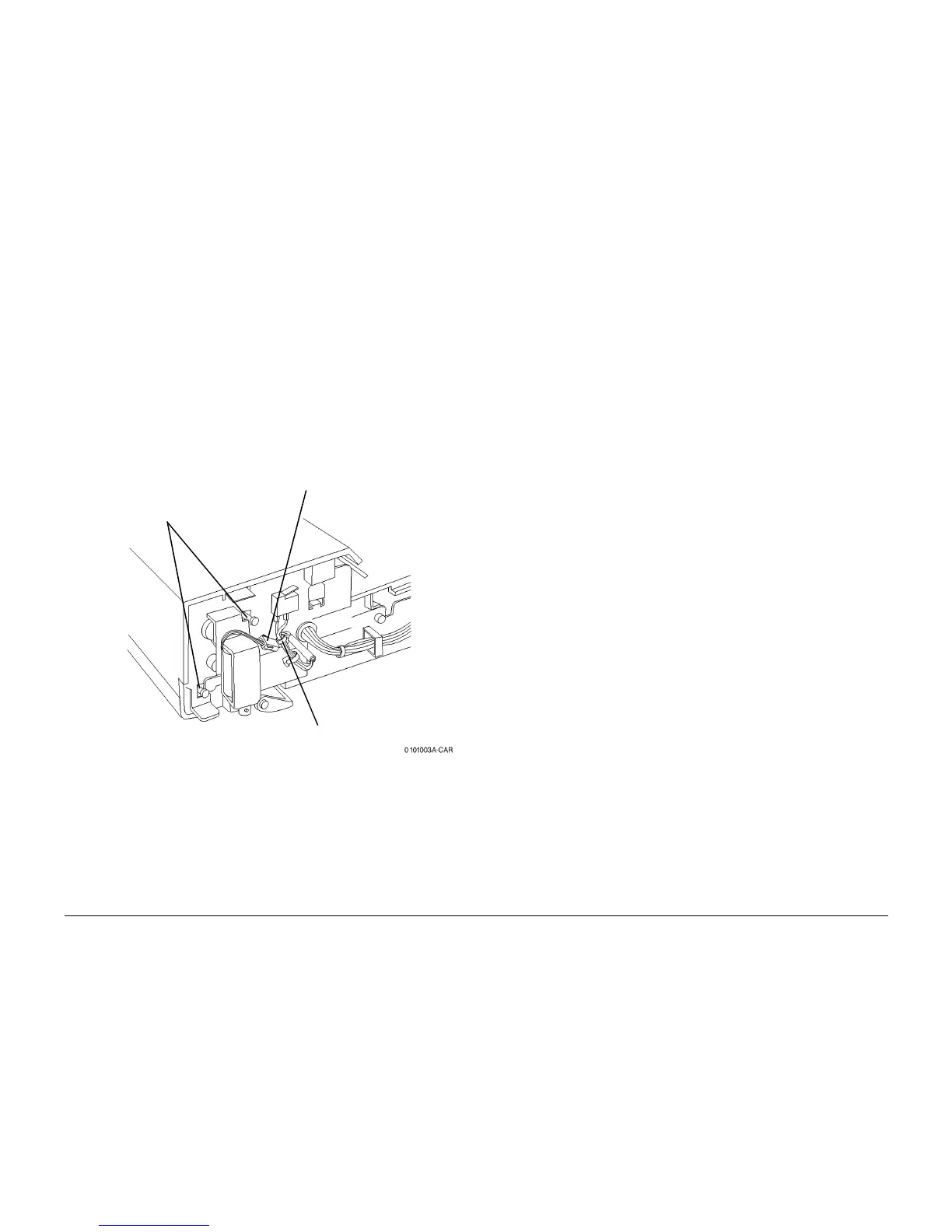

Figure 1 Removing Registration Gate Solenoid
Connector
Screws (2)
Clamps (2)
