Xerox DocuColor 1632 - PL 17.8 Paper Transportation: 2 of 2

6/02
5-73
DC1632/2240
PL 17.8
Parts List
Prelaunch Training/Review

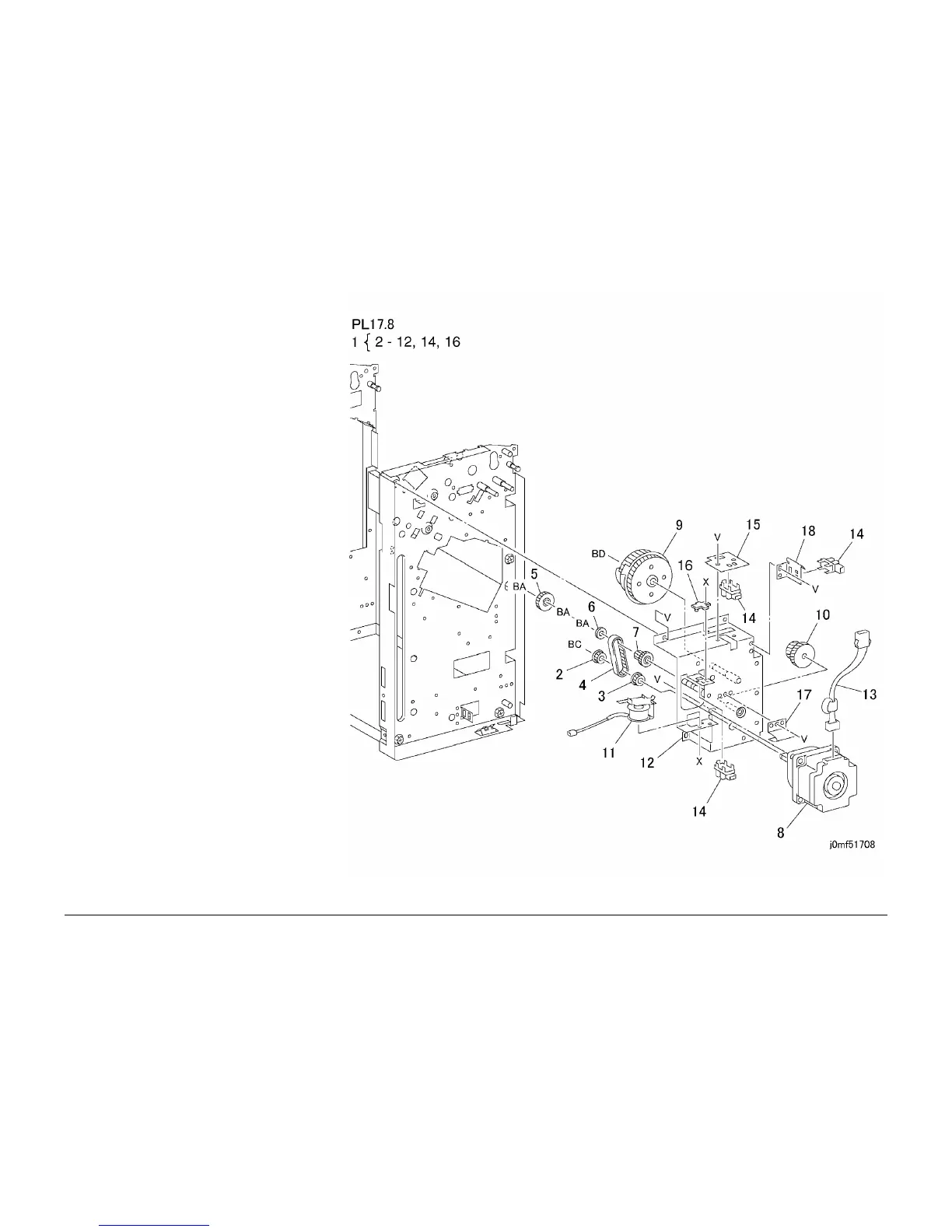

PL 17.8 Paper Transportation: 2 of 2
Item Part Description
1 015K52280 Cam Bracket Assembly
2 020E34970 Pulley
3 007E67780 Gear (15Z)
4 423W28054 Belt
5 007E67810 Gear (30Z)
6 – Collar (P/O PL 17.8 Item 1)
7 007E67790 Gear Pulley
8 127K32870 Eject Motor
9 007E67800 Cam Gear
10 007E67770 Gear (42Z/27Z)
11 121K24620 Set Clamp Solenoid
12 – Bracket (P/O PL 17.8 Item 1)
13 – Wire Harness (Not Spared)
14 130E82540 Home Sensor
15 – Plate (Not Spared)
16 – Stop (P/O PL 17.8 Item 1)
17 – Spring (Not Spared)
18 – Bracket (Not Spared)
