6/02
4-73
DC1632/2240
REP 9.8
Repairs and Adjustments
Prelaunch Training/Review
REP 9.8 Plate Assembly
Parts List on PL 4.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Front Cover (REP 14.7).
2. Remove Drum Cartridges.
3. Remove Waste Cartridge (REP 9.4).
4. Remove Waste Cartridge Cover (REP 9.3).
5. Remove Fuser Front Cover (REP 14.8).
6. Release and move Xerographic Release Lever half way down.
7. Remove Dispenser Assembly Cover (REP 9.6).
8. Remove all Dispenser Assemblies (REP 9.7).
CAUTION
Note position of harnesses. Correct harness routing is required for assembly.
NOTE: In next step, do not remove sensor.
9. Remove housing for Waste Cartridge Full Sensor (REP 9.5).
10. Disconnect Developer Housing Plugs, 4 large and 4 small (small not shown).
Position wires straight out from machine. Wires remain stationary while removing Plate
Assembly (Figure 1).

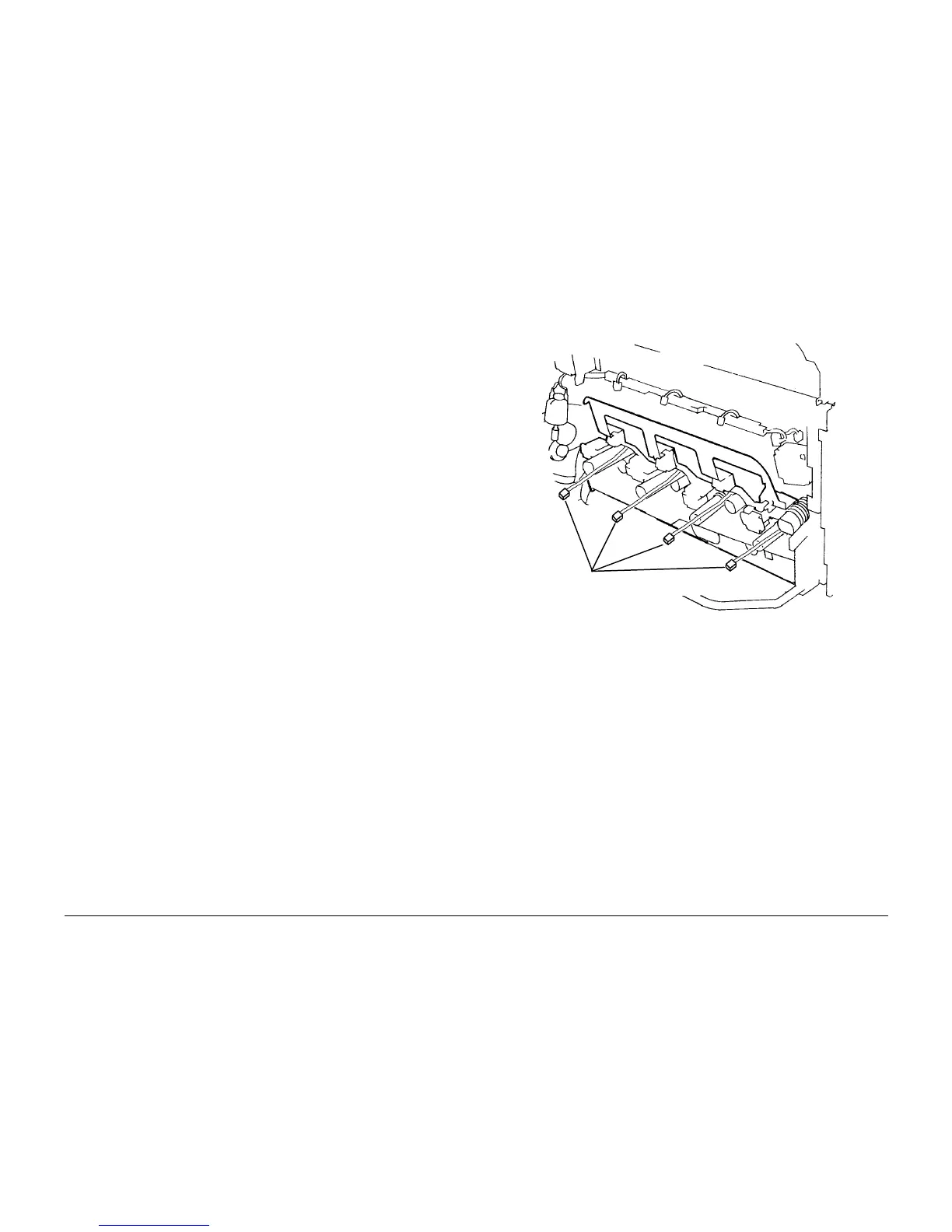

Figure 1 Disconnecting Developer Housing Plugs
Developer
Housing Plugs
(4 Large)
To Next Page
