6/02
4-105
DC1632/2240
REP 12.5
Repairs and Adjustments
Prelaunch Training/Review
REP 12.5 Stack Height Sensor Assembly
Parts List on PL 17.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Links from the Top Cover Assembly (Figure 1).

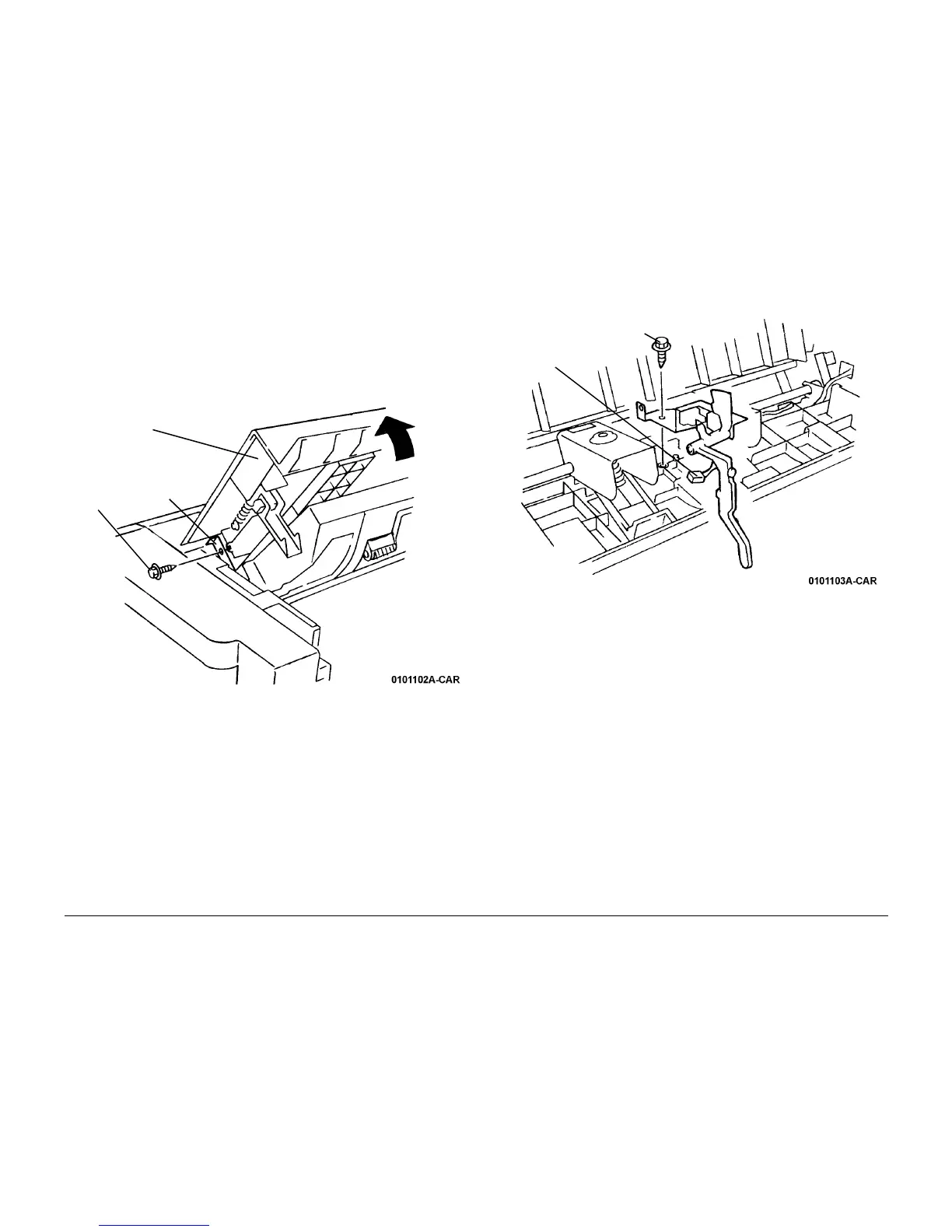

Figure 1 Removing Links from Top Cover Assembly
2. Remove the Stack Height Sensor Assembly (Figure 2).
Figure 2 Removing Stack Height Sensor Assembly
1
Open Top Cover
2
Remove
Screws
(2) on
both
sides
3
Remove
Links on
both sides
1
Remove the Screw
2
Disconnect
P/J and
remove
To Next Page
