6/02
4-77
DC1632/2240
REP 9.10, REP 9.11
Repairs and Adjustments
Prelaunch Training/Review

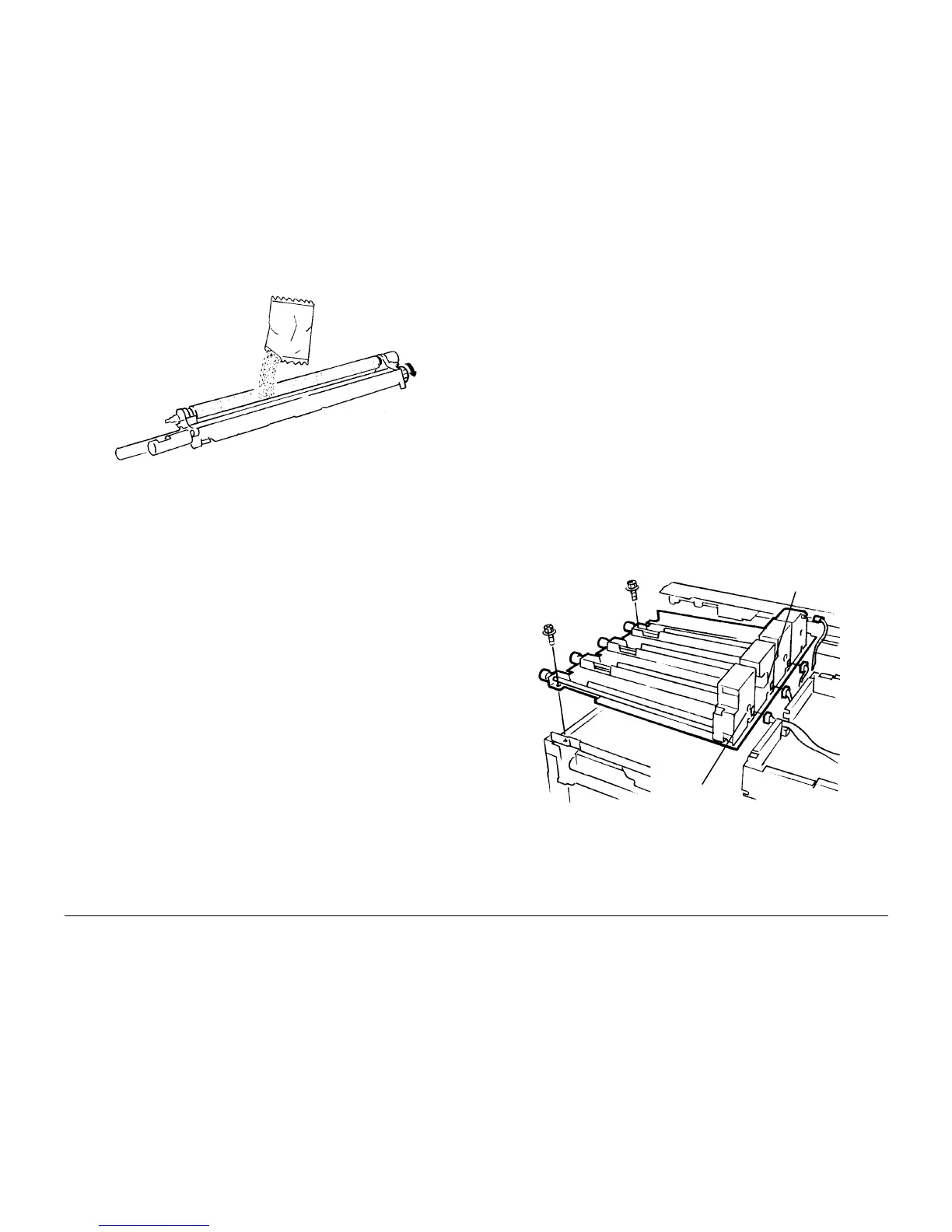

Figure 4 Installing Developer
2. Install Developer Housing.
a. Ensure pin at rear of Developer Housing engages hole in rear frame of machine.
b. Reassemble machine.
c. Adjust ATC Sensor (ADJ).
REP 9.11 Toner Dispenser Base Assembly
Parts List on PL 6.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Drum Cartridges.
3. Remove Fuser Front Cover (REP 14.8).
4. Release and move Xerographic Release Lever half way down.
5. Remove Dispenser Assembly Cover (REP 9.6).
6. Remove all Dispenser Assemblies (REP 9.7).
7. Remove Top Cover (REP 14.1).
8. Remove Right Cover (REP 14.3).
9. Remove Toner Dispense Module (Figure 1).
a. Remove Screws (2).
b. Carefully observe position of wiring harness for later reinstallation
c. Disconnect motor connectors (4).
d. Lift to remove Toner Dispense Module.
Figure 1 Removing Toner Dispense Module
Harness
Screws (2)
Motor P/JÃs
To Next Page
