6/02
5-50
DC1632/2240
PL 16.1
Prelaunch Training/Review
Parts List

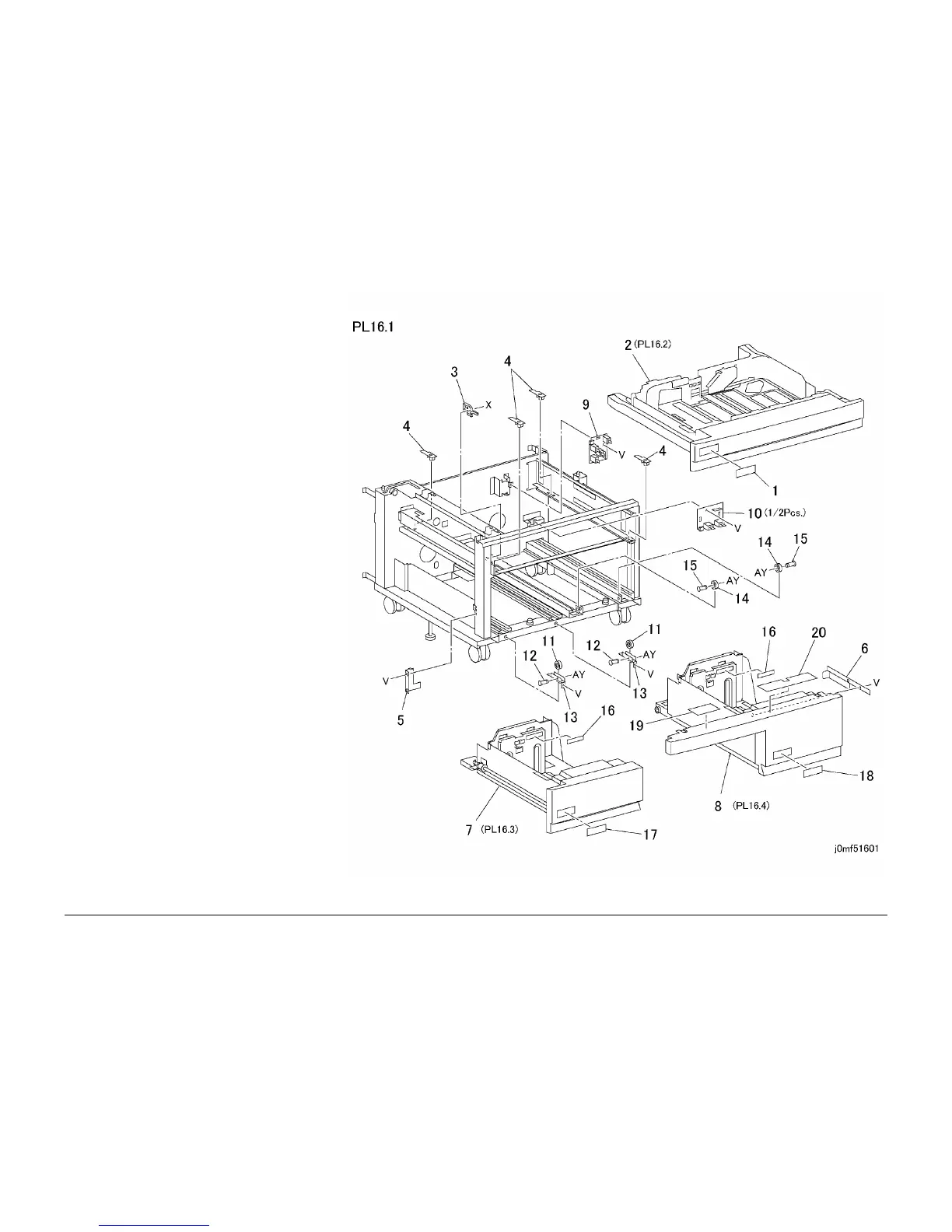

PL 16.1 Tray 2/3/4 Assembly
Item Part Description
1 891E49060 Label (Tray 2)
2 050K48170 Tray 2 (REP 7.9)
3 003E23672 Stop
4 014E42850 Spacer
5 – Tray 3 Stop (Not Spared)
6 – Tray 4 Stop (Not Spared)
7 050K43130 Tray 3 (REP 7.6)
8 050K43120 Tray 4 (REP 7.7)
9 110K08541 Tray 2 Paper Size Switch
10 110K10880 Tray 3/4 Paper Size Switch
11 059E95930 Roll
12 – Shaft (Not Spared)
13 – Bracket (Not Spared)
14 – Roll (Not Spared)
15 – Shaft (Not Spared)
16 – Max Label (Not Spared)
17 891E49510 Label (Tray 3)
18 891E49520 Label (Tray 4)
19 892E28491 Label
20 – Instruction Label (Not Spared)
To Next Page
