6/02
5-81
DC1632/2240
PL 18.3
Parts List
Prelaunch Training/Review

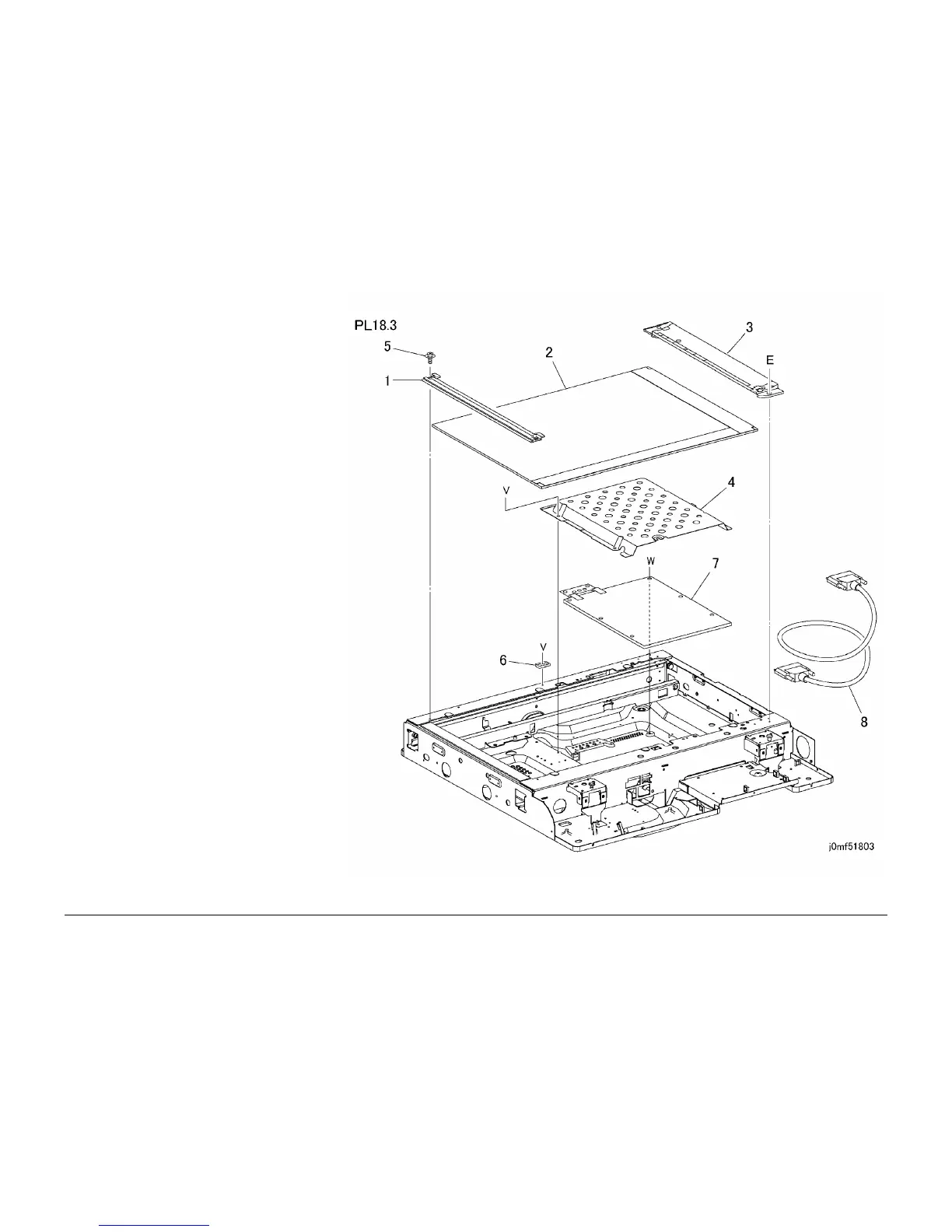

PL 18.3 Platen Glass
Item Part Description
1 – Right Side Plate (Not Spared)
2 090K92820 Platen Glass (REP 6.2)
3 050K43070 Registration Gate
4 – IPS Cover (Not Spared)
5 – Screw (Not Spared)
6 068E10210 Platen Glass Support
7 160K66429 ITT/IPS PWB
8 117E20840 Cable
