6/02
4-36
DC1632/2240
REP 5.17
Prelaunch Training/Review
Repairs and Adjustments
REP 5.17 Document Transport
Parts List on PL 20.10
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Front Cover (PL 20.1).
2. Remove Document Transport (Figure 1).
a. Loosen screws (3).
CAUTION
Document Handler rises quickly after lowering when Document Transport is removed.
b. Support bottom of Document Transport and remove it by pulling up and off mounting
screws.

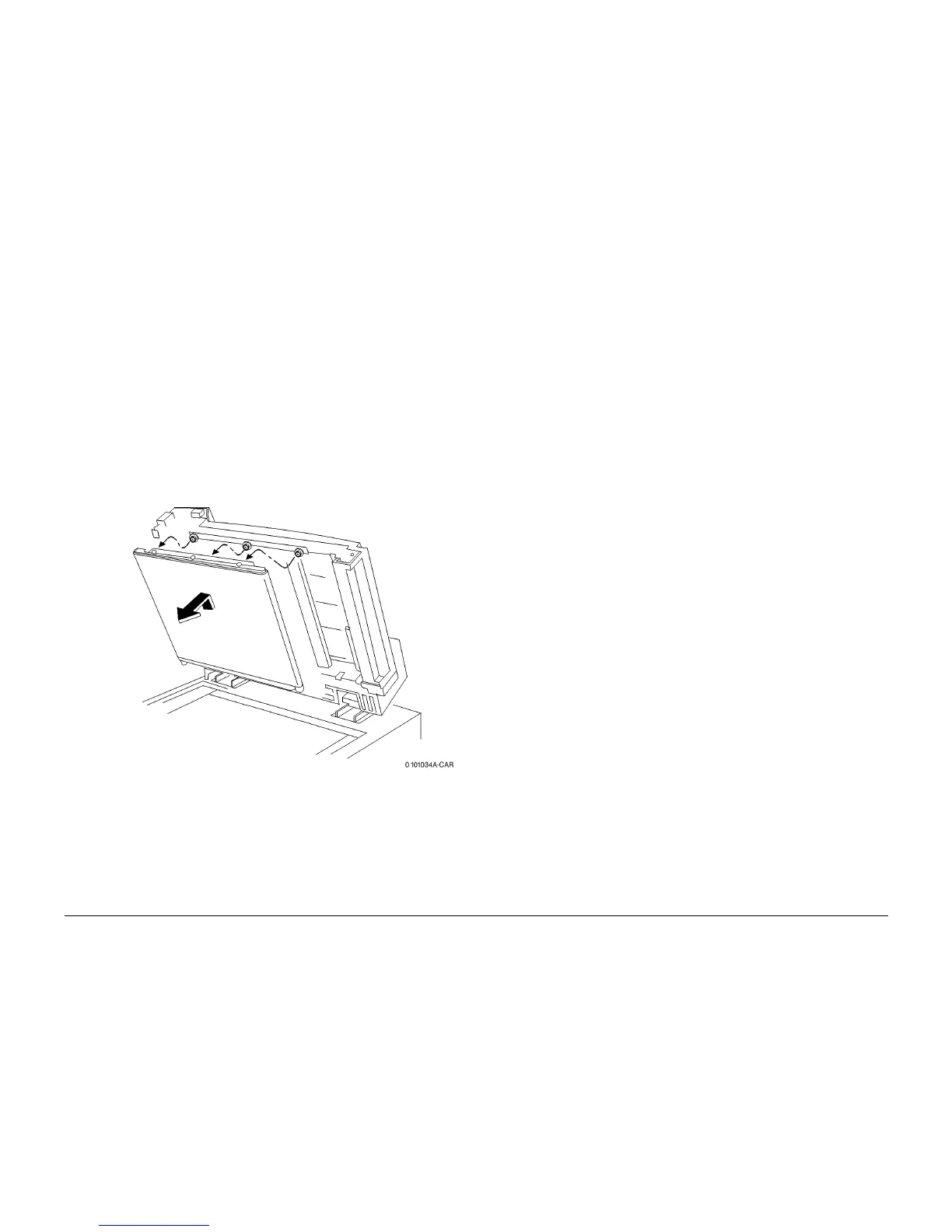

Figure 1 Removing Document Transport
To Next Page
