6/02
4-24
DC1632/2240
REP 5.7
Prelaunch Training/Review
Repairs and Adjustments
REP 5.7 Feed Roll Assembly
Parts List on PL 20.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Top Cover and remove Inner Cover (Figure 1).
a. Open Top Cover.
b. Loosen screws (2).
c. Remove Inner Cover.

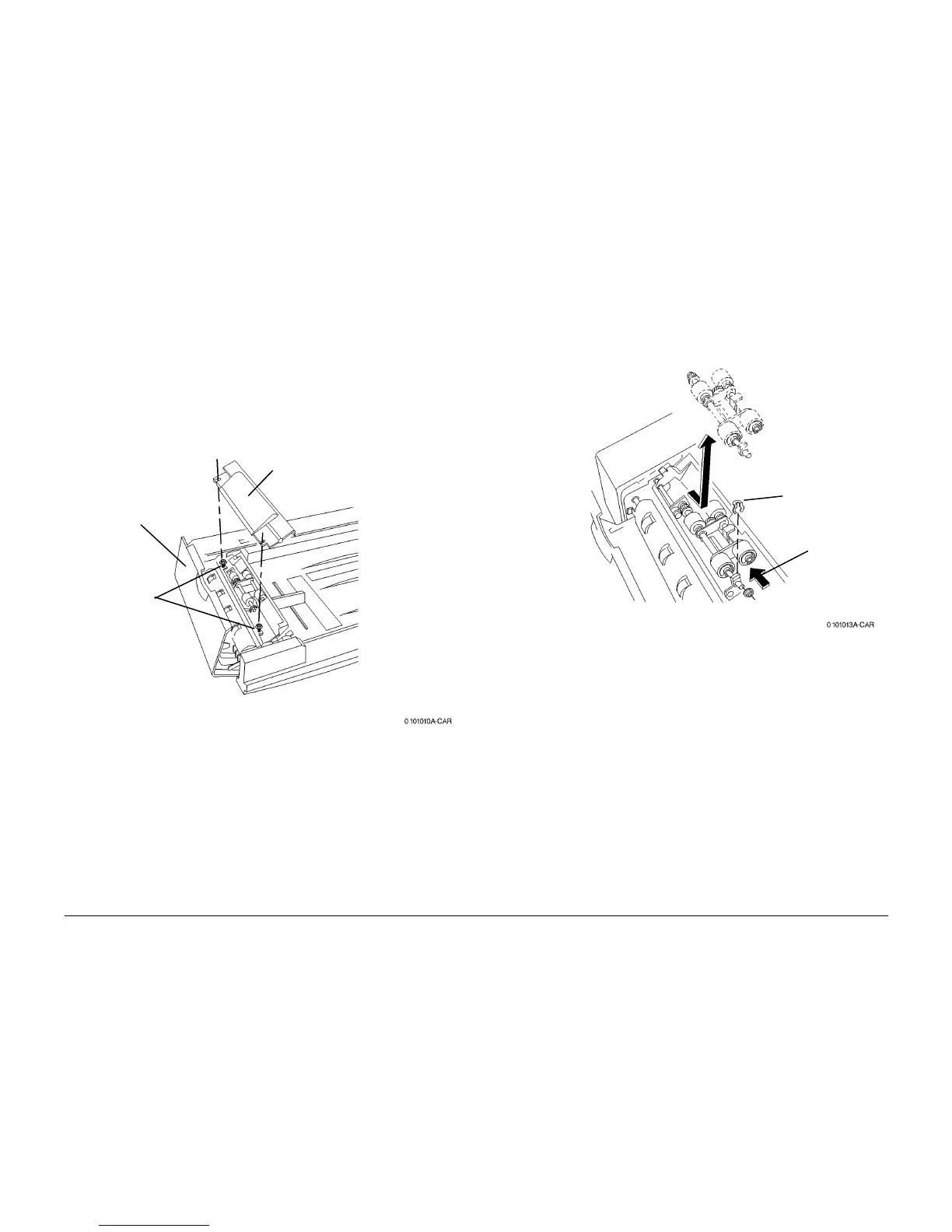

Figure 1 Removing Inner Cover
2. Remove Feed Roll Assembly (Figure 2).
a. Remove clip.
b. Slide bearing.
c. Remove Feed Roll Assembly.
Figure 2 Removing Feed Roll Assembly
Replacement
NOTE: Feed Rolls rotate freely in direction of document movement.
NOTE: After replacing Feed Roll, reset HFSI counter. Enter dC135 HFSI Counters Diag.
Screen (NVM 005-805).
NOTE: Feed Rolls and Nudger Rolls are replaced at same time.
Top
Cover
Screws
(2)
Inner
Cover
Clip
Bearing
To Next Page
