DC1632/2240
PL 20.10
Parts List
Prelaunch Training/Review

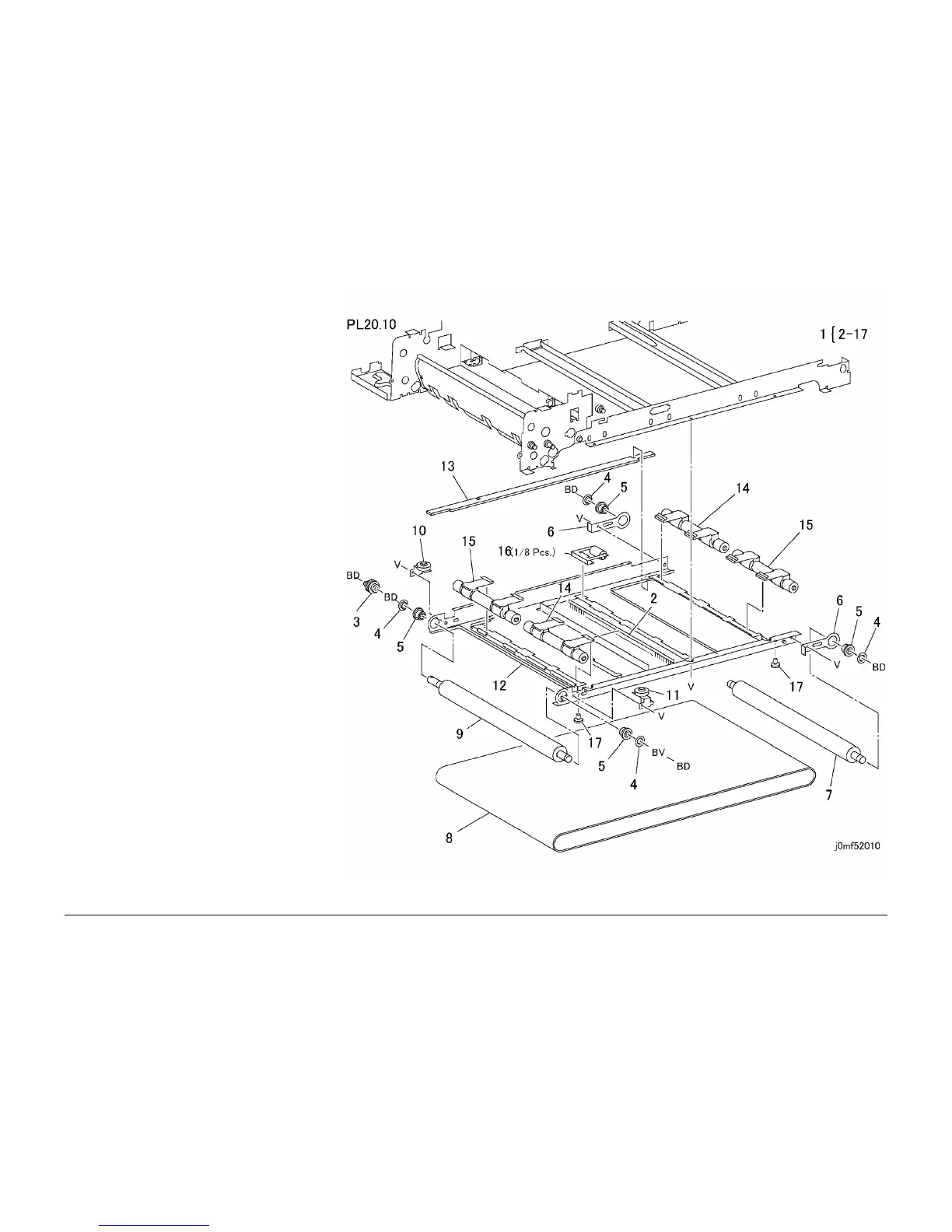

PL 20.10 Document Transport, Platen
Belt
Item Part Description
1 – Document Transport (Not Spared)
(REP 5.17)
2 – Static Eliminator (Not Spared)
3 007E66340 Gear
4 – Collar (Not Spared)
5 013E80970 Bearing
6 049E91070 Tension Plate
7 022K39710 Idler Roll
8 023E15690 Platen Belt (REP 5.19)
9 – Drive Roll (Not Spared)
10 – Belt Guide (Not Spared)
11 – Belt Guide (Not Spared)
12 – Transport Frame (Not Spared)
13 – Deflector (Not Spared)
14 – Pinch Roll (Not Spared)
15 – Pinch Roll (Not Spared)
16 – Pinch Roll (Not Spared)
17 – Damper (Not Spared)
