6/02
2-98
DC1632/2240
7-105
Prelaunch Training/Review
Status Indicator RAPs
7-105 Tray 1 Misfeed
The Tray 1 Feed Out Sensor does not detect paper after feeding from Tray 1.
Initial Actions
ï Check condition and specification of paper in Tray 1.
ï Check the paper path for obstructions.
ï Check for wear and clean the Tray 1 Feed Roll, Take Away Roll and the Nudger Roll.
Procedure
Enter dC330 [008-100] and press Start. Block and unblock the Tray 1 Feed Out Sensor (PL
2.3). The display changes.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Enter dC330 [008-001] and press Start. The Tray 1 Feed/Lift motor energizes (PL 2.4).
YN
Go to OF 99-6 Motor Open RAP.
Enter dC330 [008-029] then dC330 [008-036] and press Start. The Take Away Motor 1 ener-
gizes PL 15.9).
YN
Go to the OF 99-6 Motor Open RAP.
Replace the I/F PWB PL 9.1.
If the problem continues, replace the MCU PWB (PL 13.1).

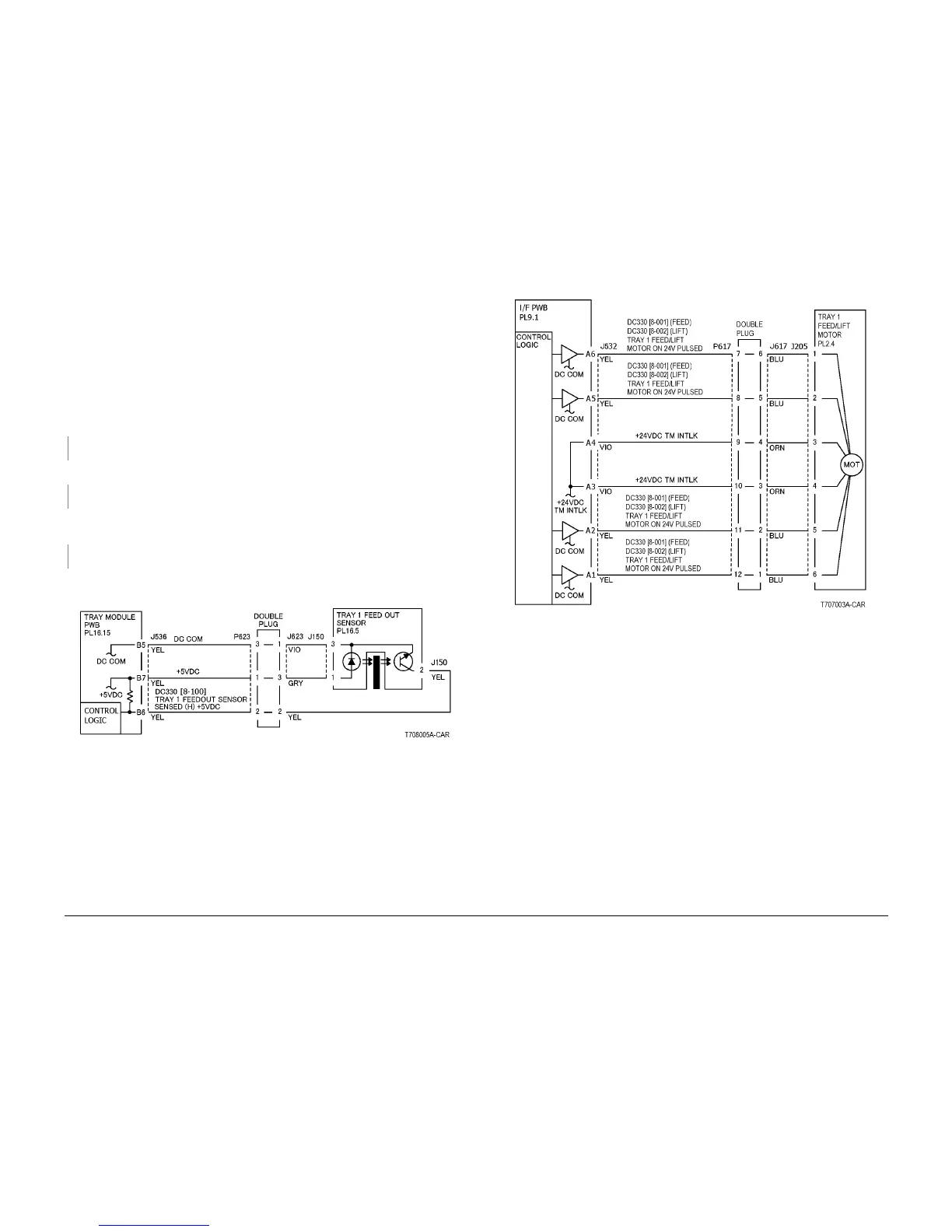

Figure 1 Tray 1 Feed out Sensor CD
Figure 2 Tray 1 Feed/Lift Motor CD
To Next Page
