6/02
2-97
DC1632/2240
7-104
Status Indicator RAPs
Prelaunch Training/Review
7-104 Tray 1 Feed Out Sensor
The Tray 1 Feed Out Sensor does not detect paper after feeding from Tray 1.
Initial Actions
ï Check condition and specification of paper in Tray 1.
ï Check the paper path for obstructions.
ï Check for wear and clean the Tray 1 Feeder Roll, Take Away Roll and the Nudger Roll.
Procedure
Enter dC330 [008-100] and press Start. Block and unblock Tray 1 Feed Out Sensor (PL2.3).
The display changes.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Enter dC330 [008-106] and press Start. Block and unblock the Take Away Sensor (PL 16.6).
The display changes.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Enter dC330 [008-029] then dC330 [008-036] and press Start. The Take Away Motor 1 ener-
gizes (PL 15.9).
YN
Go to OF 99-6 Motor Open RAP.
Replace the Tray Module PWB (PL 16.15).

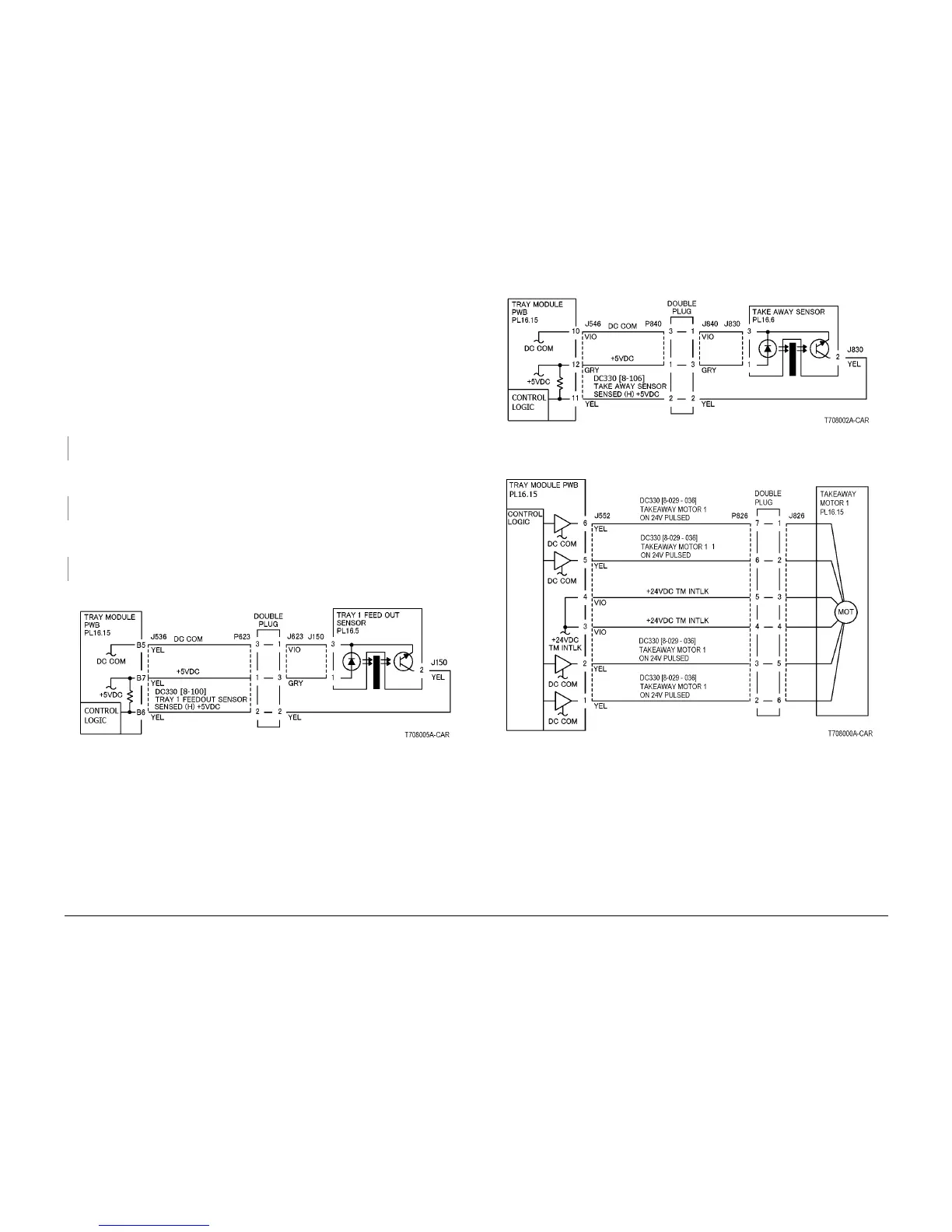

Figure 1 Tray 1 Feed Out Sensor CD
Figure 2 Takeaway Sensor CD
Figure 3 Takeaway Motor 1 CD
To Next Page
