Xerox DocuColor 1632 Service Manual

6/02
4-14
DC1632/2240
REP 4.2, REP 4.3
Prelaunch Training/Review
Repairs and Adjustments
REP 4.2 IBT Motor
Parts List on PL 1.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Pivot down High Voltage Power Supply Chassis (REP 1.6).
3. Remove Photoreceptor Module Drive Motor.
a. Disconnect Cooling Fan P/J.
b. Remove screws (2) and remove Cooling Fan.
c. Disconnect Photoreceptor Module Drive Motor P/J.
d. Remove Photoreceptor Module Drive Motor screws (3) and remove Photoreceptor
Module Drive Motor.

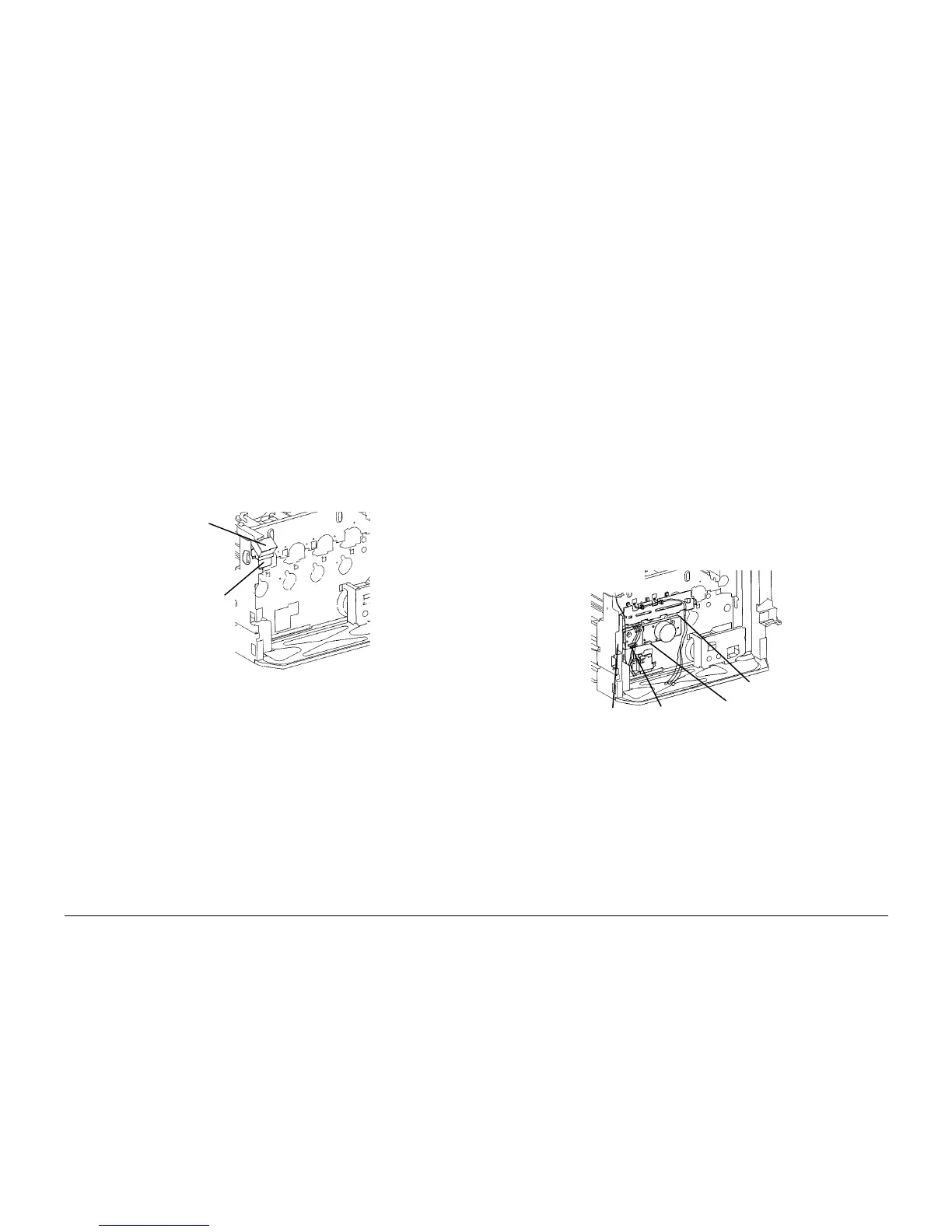

Figure 1 Removing Photoreceptor Module Drive Motor
REP 4.3 Developer Drive Motor
Parts List on PL 1.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Remove High Voltage Power Supply Chassis (REP 1.6).
NOTE: Step 3 can be omitted if Low Voltage Power Supply P/Jís are disconnected before per-
forming step 4.
3. Remove 3.3 VDC and 5 VDC Low Voltage Power Supply (REP 1.4).
4. Remove Chassis for 3.3 VDC and 5 VDC Low Voltage Power Supply.
a. Release harnesses from harness clips (3).
b. Remove screws (4) and remove Chassis.
5. Remove Developer Drive Module (Figure 1).
a. Disconnect P/J.
b. Remove harness from Harness Clip.
c. Remove Screws (2) and remove Developer Drive Module.
Figure 1 Removing Developer Drive Module
Cooling Fan
Photoreceptor
Module Drive
Motor
Harness Clip
Screw
Screw
P/J
