Xerox DocuColor 1632 Service Manual

6/02
5-31
DC1632/2240
PL 5.4
Parts List
Prelaunch Training/Review

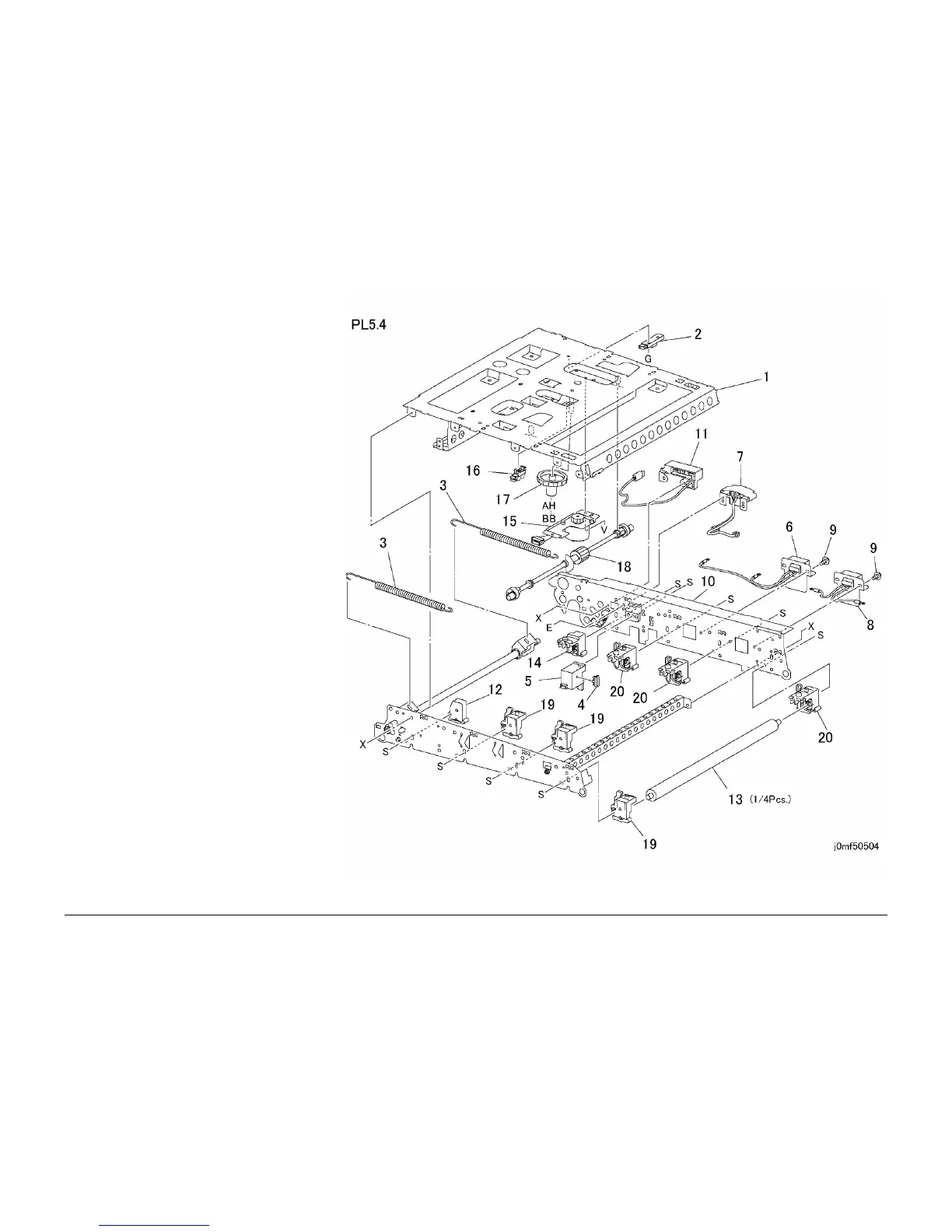

PL 5.4 IBT Frame Assembly: 1 of 2
Item Part Description
1 – Frame (Not Spared)
2 130E84270 IBT Home Sensor (ADJ 9.6)
3 – Spring (Not Spared)
4 – Clamp (Not Spared)
5 130K60830 IBT Edge Sensor (ADJ 9.6)
6 162K56020 Connector (C, K)
7 – Connector (Not Spared)
8 162K61090 Connector (Y, M)
9 – Screw (Not Spared)
10 – Rear Frame (Not Spared)
11 – Connector (Not Spared)
12 019K98200 Front Holder
13 059K21260 1st BTR Roll
14 019K98190 Rear Holder
15 127K33950 Retract Motor
16 130E82190 Retract Sensor
17 – Worm Gear (Not Spared)
18 – Retract Shaft (Not Spared)
19 019K97550 Front Holder
20 019K97540 Rear Holder
