6/02
5-58
DC1632/2240
PL 16.9
Prelaunch Training/Review
Parts List

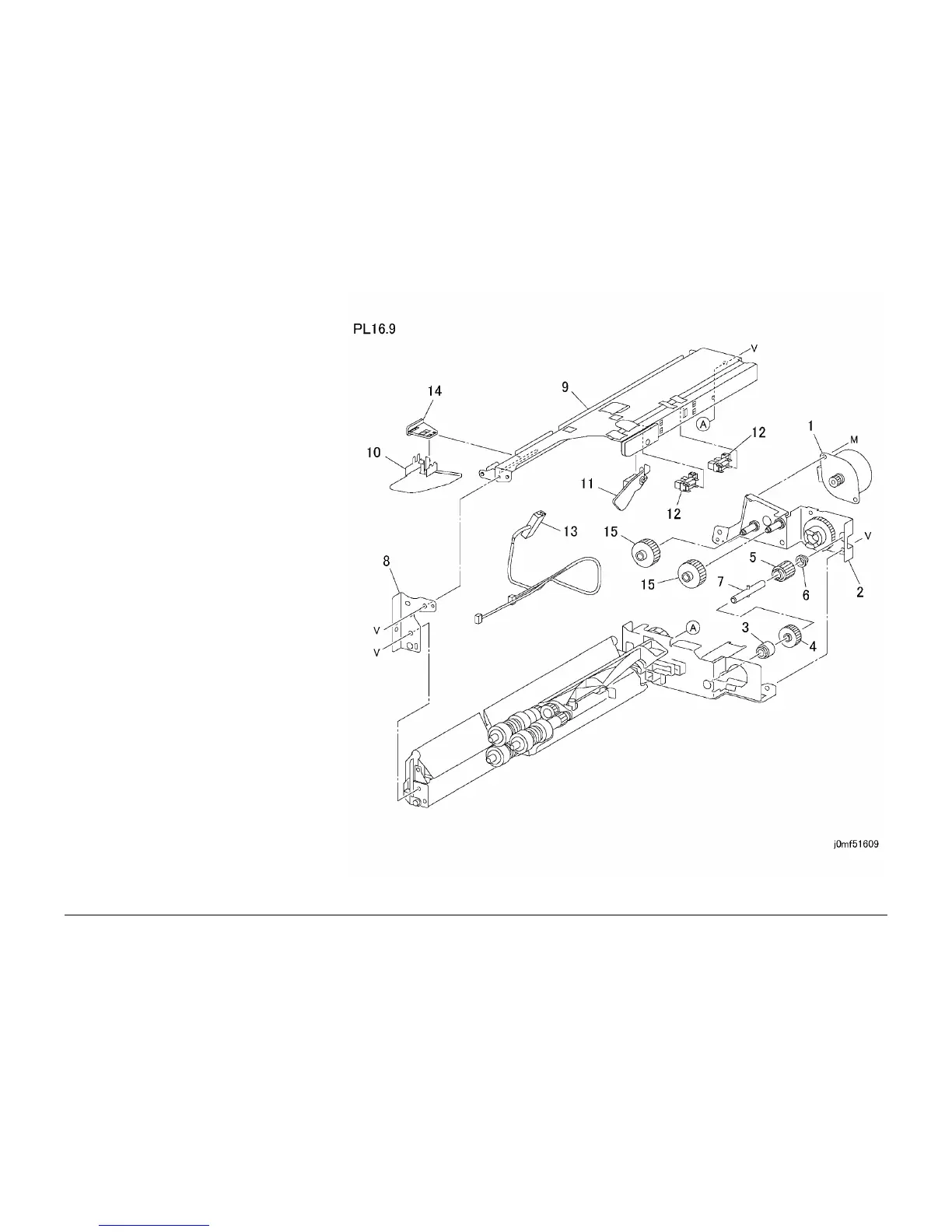

PL 16.9 Tray 3 Feeder: 1 of 2
Item Part Description
1 127K23230 Tray 3 Feed/Lift Motor
2 – Bracket (Not Spared)
3 005K83081 One-way Clutch
4 007K85730 One-way Gear
5 – Gear (13T) (Not Spared)
6 – Bearing (Not Spared)
7 – Shaft (Not Spared)
8 – Front Frame (Not Spared)
9 – Upper Frame (Not Spared)
10 – Front Chute (Not Spared)
11 – Actuator (Not Spared)
12 130E82190 Tray 3 Level/No Paper Sensor
13 – Wire Harness (Not Spared)
14 – Support (Not Spared)
15 – Gear (29T) (Not Spared)
To Next Page
