Xerox DocuColor 1632 Service Manual

6/02
4-78
DC1632/2240
REP 9.12, REP 9.13
Prelaunch Training/Review
Repairs and Adjustments
REP 9.12 IBT Steering Drive Assembly
Parts List on PL 1.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Front Cover (REP 14.8).
3. Release and move Xerographic Release Lever half way down.
4. Remove Dispenser Assembly Cover (REP 9.6).
5. Remove Steering Drive Motor (Figure 1).
a. Disconnect Motor P/J.
b. Remove Screws (3).
c. Pull out to remove using care to avoid damage to steering gear.

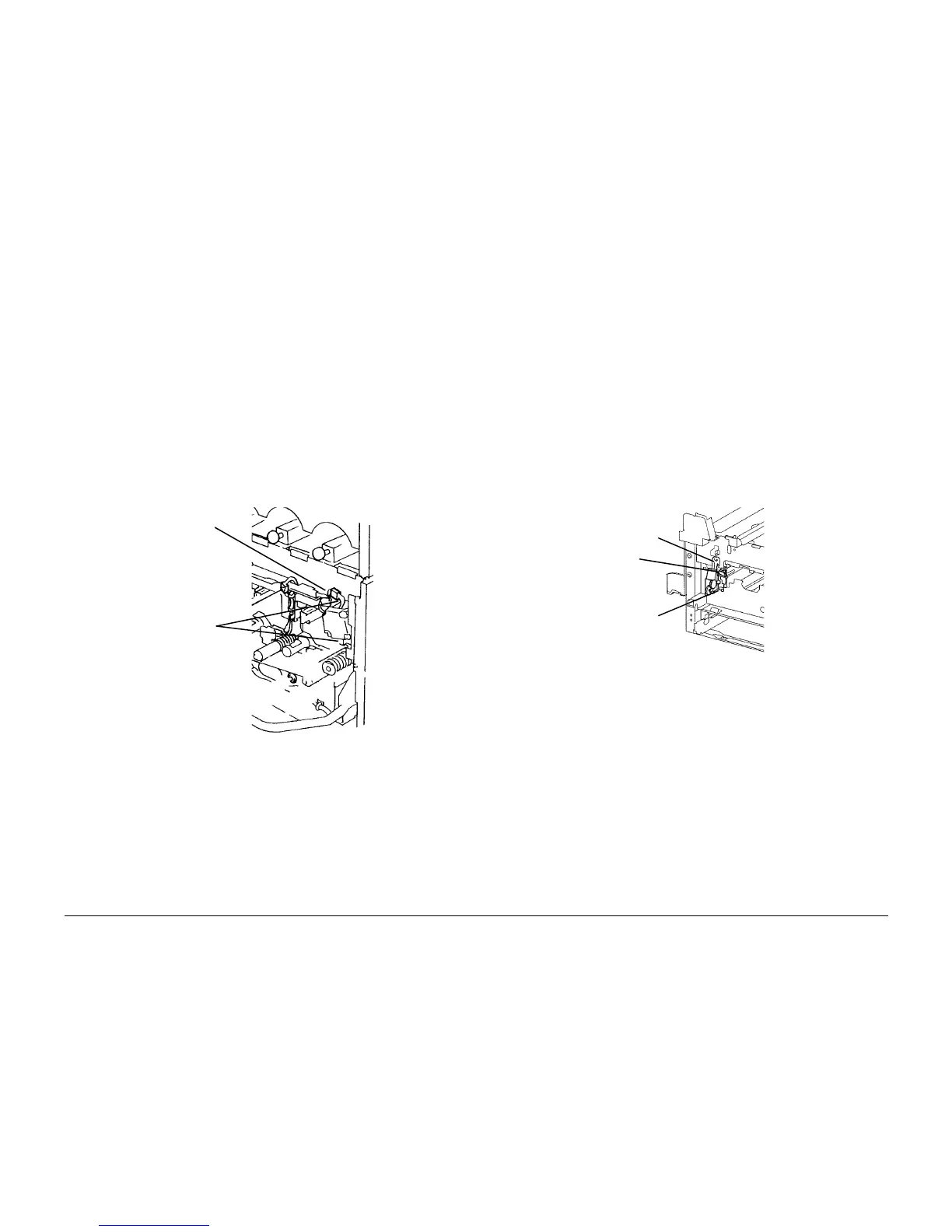

Figure 1 Removing Steering Drive Motor
REP 9.13 Agitator Motor Assembly
Parts List on PL 4.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Waste Cartridge (REP 9.4).
3. Remove Fuser Front Cover (REP 14.8).
4. Release and move Xerographic Release Lever half way down.
5. Remove Dispenser Assembly Cover (REP 9.6).
6. Remove Waste Toner Agitator (Figure 1).
a. Disconnect P/J.
b. Remove Screws (2) and remove Waste Toner Agitator.
Figure 1 Removing Waste Toner Agitator
Motor P/J
Screws (3)
Screw
P/J
Screw
