6/02
4-51
DC1632/2240
REP 6.14
Repairs and Adjustments
Prelaunch Training/Review
REP 6.14 Lamp Wire Harness
Parts List on PL 18.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove DADF (REP 5.1).
2. Remove Platen Glass (REP 6.2).
3. Remove IIT Top Cover (REP 6.3).
4. Disconnect Lamp Wire Harness connector and release Clamp Hook (Figure 1).
a. Disconnect connector.
b. Release clamp.
c. Remove clamp.
d. Release hook.

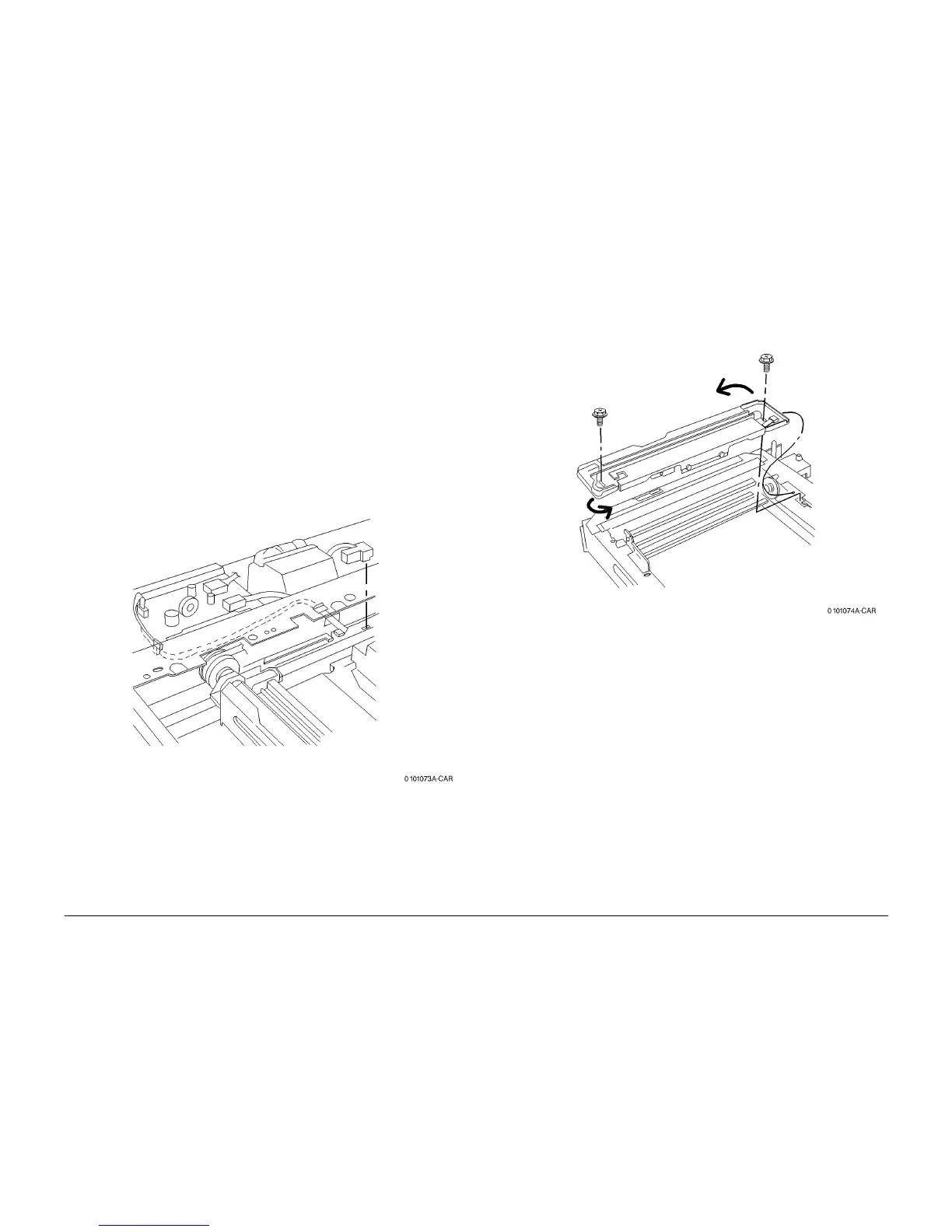

Figure 1 Disconnecting Lamp Wire Harness
5. Remove Full Rate Carriage (Figure 2).
a. Remove screws (2).
b. Remove Full Rate Carriage.
Figure 2 Removing Full Rate Carriage
To Next Page
