PL 12.1
Parts List
Prelaunch Training/Review

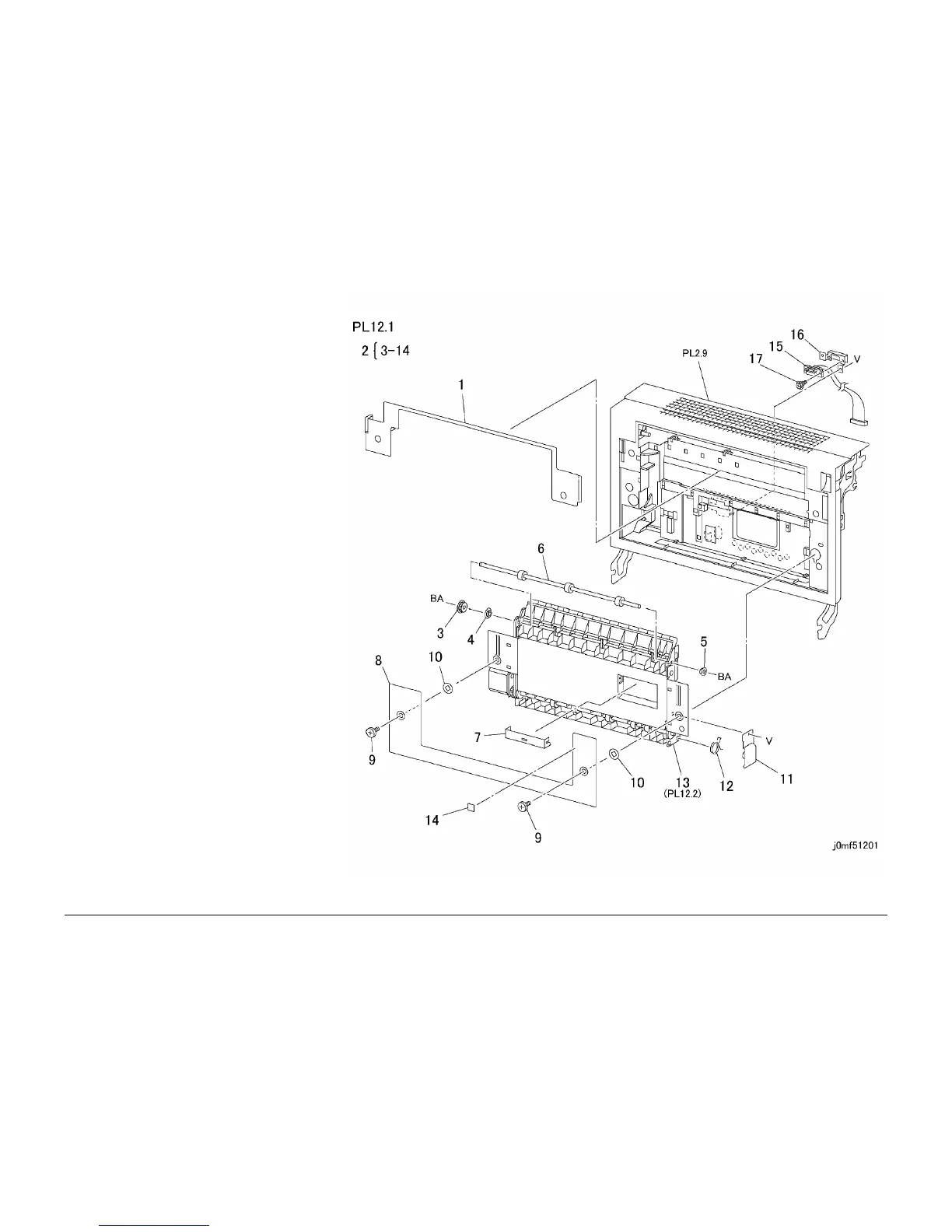

PL 12.1 Duplex Transport Assembly:
1 of 2
Item Part Description
1 – Duplex Transport Upper Cover (Not
Spared)
2 059K18714 Duplex Transport Assembly (REP
8.3)
3 – One-way Pulley (P/O PL 12.1 Item
2)
4 – Bearing (P/O PL 12.1 Item 2)
5 – Bearing (P/O PL 12.1 Item 2)
6 059K23960 Duplex Transport Roll
7 – Handle (P/O PL 12.1 Item 2)
8 – Lower Cover (P/O PL 12.1 Item 2)
9 – Screw (P/O PL 12.1 Item 2)
10 – Nylon Washer (P/O PL 12.1 Item 2)
11 – Cover (P/O PL 12.1 Item 2)
12 – Spring (P/O PL 12.1 Item 2)
13 – Duplex Transport (P/O PL 12.1
Item 2)
14 – Label (P/O PL 12.1 Item 2)
15 – Wire Harness (Not Spared)
16 – Bracket (Not Spared)
17 – Screw (Not Spared)
To Next Page
