6/02
4-31
DC1632/2240
REP 5.13
Repairs and Adjustments
Prelaunch Training/Review
REP 5.13 DADF Belt Motor Assembly
Parts List on PL 20.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 5.18).
2. Remove DADF Belt Motor Assembly (Figure 2).

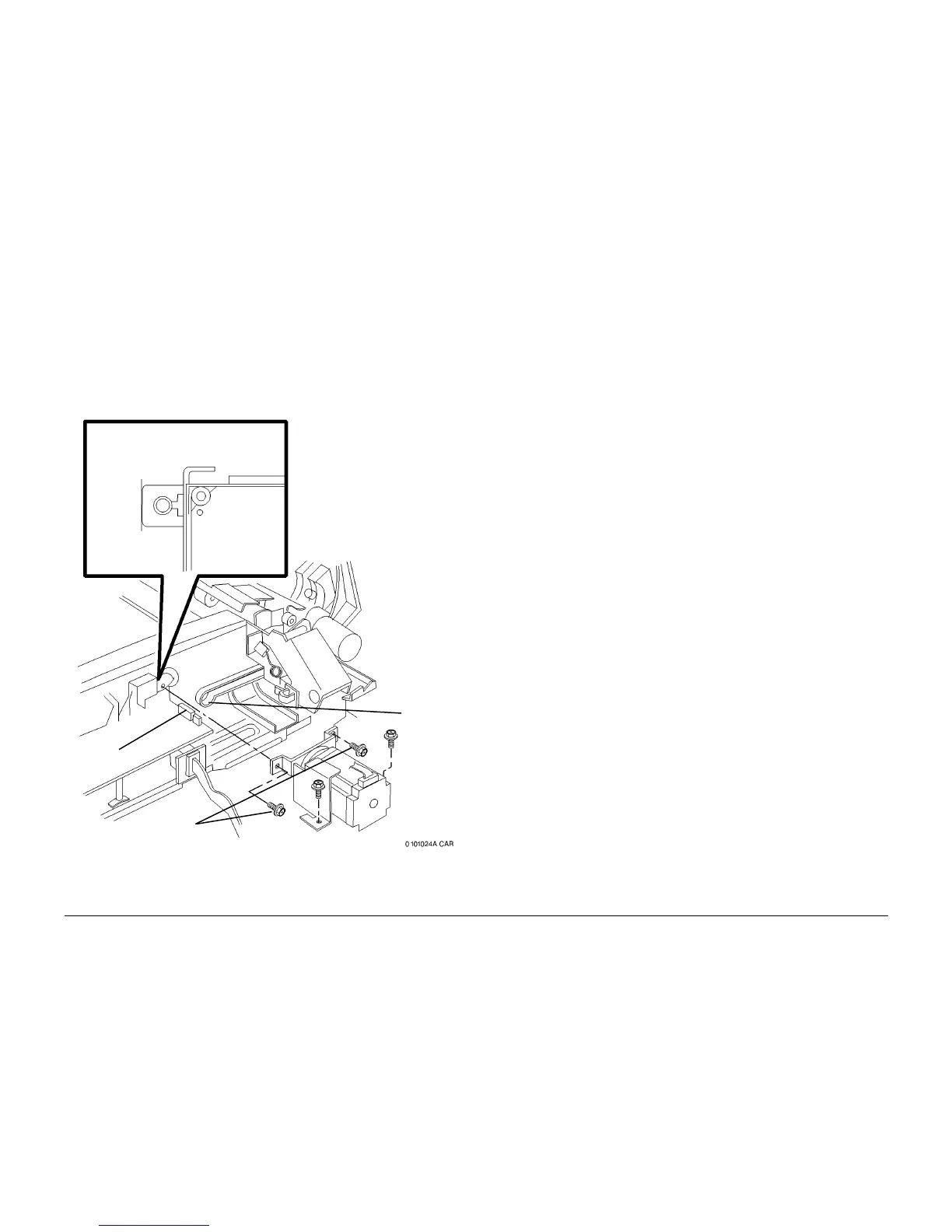

Figure 1 Removing DADF Belt Motor Assembly
Replacement
NOTE: Align motor bracket with marks on frame before tightening screws.
1
Mark position of motor bracket on frame
near all four mounting screws
2
Disconnect
motor con-
nector
3
Loosen
screws (4)
4
Remove
Belt from
motor pulley
and remove
motor
To Next Page
