6/02
4-19
DC1632/2240
REP 5.3
Repairs and Adjustments
Prelaunch Training/Review
REP 5.3 Left/Right Counterbalance
Parts List on PL 20.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove DADF (REP 5.1).
2. Remove Rear Cover (REP 5.18).
3. To remove Left Counterbalance, go to step 4.
To remove Right Counterbalance, go to step 5.
4. Remove Left Counter Balance (Figure 1).
a. Remove Screws (4).
b. Remove Left Counterbalance.
c. Mark counterbalance as Left.

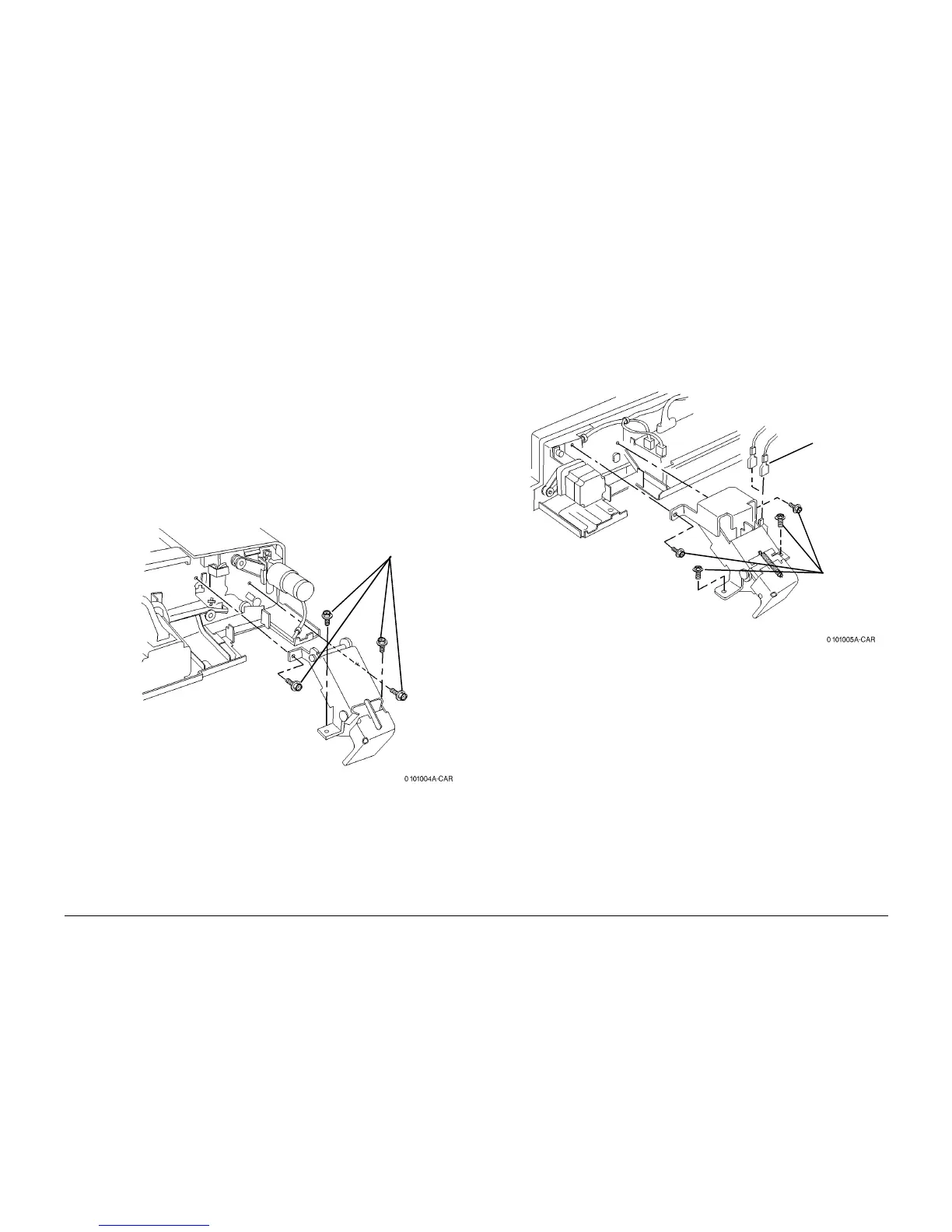

Figure 1 Removing Left Counterbalance
5. Remove Right Counterbalance (Figure 2).
a. Remove Terminals (2).
b. Remove Screws (4).
c. Remove Right Counterbalance.
d. Mark counterbalance as Right.
Figure 2 Removing Right Counterbalance
Screws (4)
Terminals (2)
Screws (4)
To Next Page
