6/02
5-69
DC1632/2240
PL 17.4
Parts List
Prelaunch Training/Review

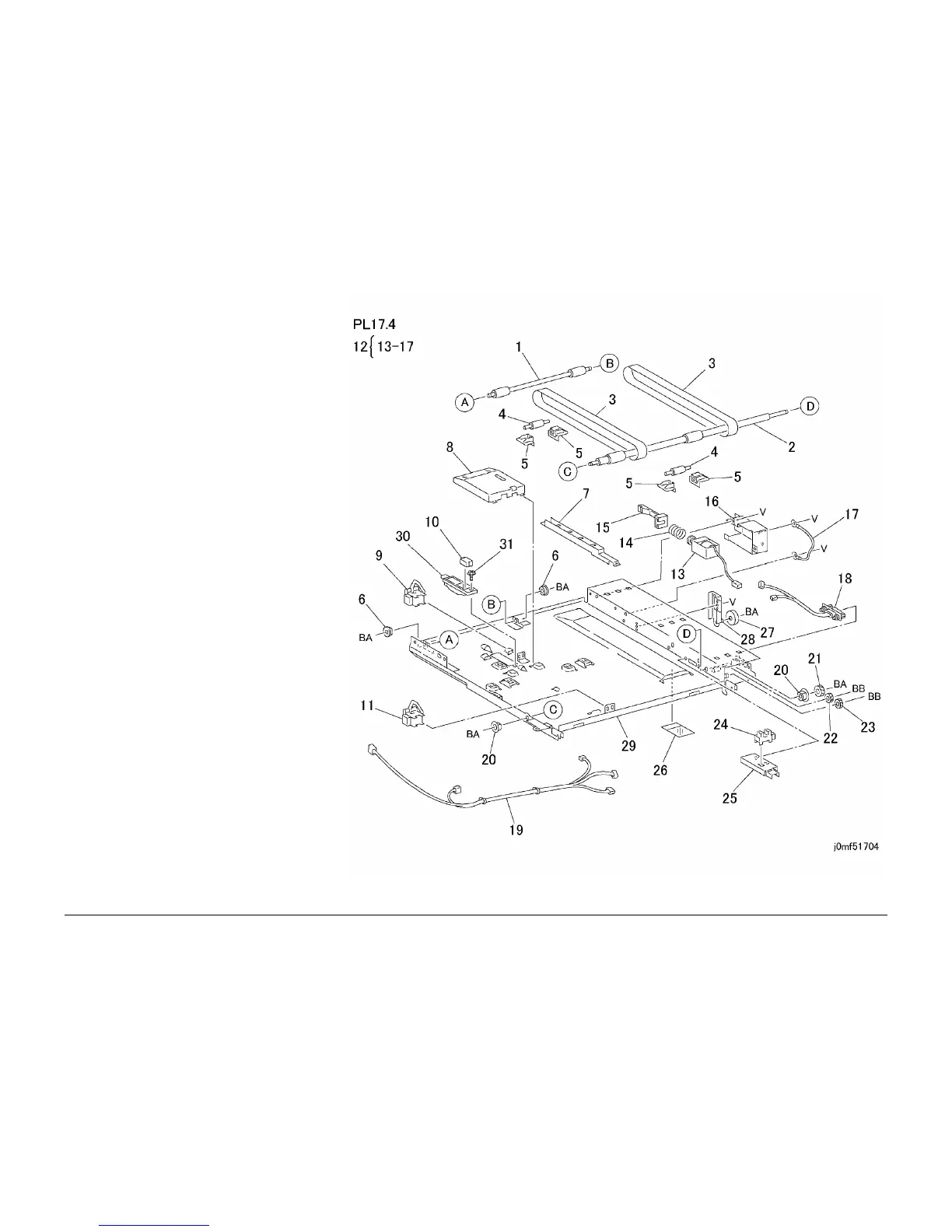

PL 17.4 H-Transport Assembly: 2 of 2
Item Part Description
1 – H-Transport Roll (In) (Not Spared)
2 – H-Transport Roll (Out) (Not Spared)
3 023E20020 H-Transport Belt (REP 12.2)
4 – Roll (Not Spared)
5 – Support (Not Spared)
6 – Bearing (Not Spared)
7 802E30150 Harness Guide
8 802E30140 Cover
9 130K93360 Entrance Sensor (REP 12.3)
10 130E82970 Top Tray Full Sensor
11 130K62360 Exit Sensor
12 802K28580 Gate In Solenoid Assembly
13 – Gate In Solenoid (P/O PL 17.4 Item
12)
14 – Spring (P/O PL 17.4 Item 12)
15 – LInk (P/O PL 17.4 Item 12)
16 – Cover (P/O PL 17.4 Item 12)
17 – Ground Wire (P/O PL 17.4 Item 12)
18 162K69070 Wire Harness
19 162K69060 Wire Harness
20 – Bearing (Not Spared)
21 007E67850 Gear (37T)
22 007E67860 Gear (30T)
23 007E67870 Gear (26T)
24 130E82540 Interlock Sensor
25 – Bracket (Not Spared)
26 038E24650 Paper Guide
27 022E88210 Roll
28 – Bracket (Not Spared)
29 – Frame (Not Spared)
30 – Bracket (Not Spared)
31 – Screw (Not Spared)
To Next Page
