Xerox DocuColor 1632 - PL 18.2 Control Panel

6/02
5-80
DC1632/2240
PL 18.2
Prelaunch Training/Review
Parts List

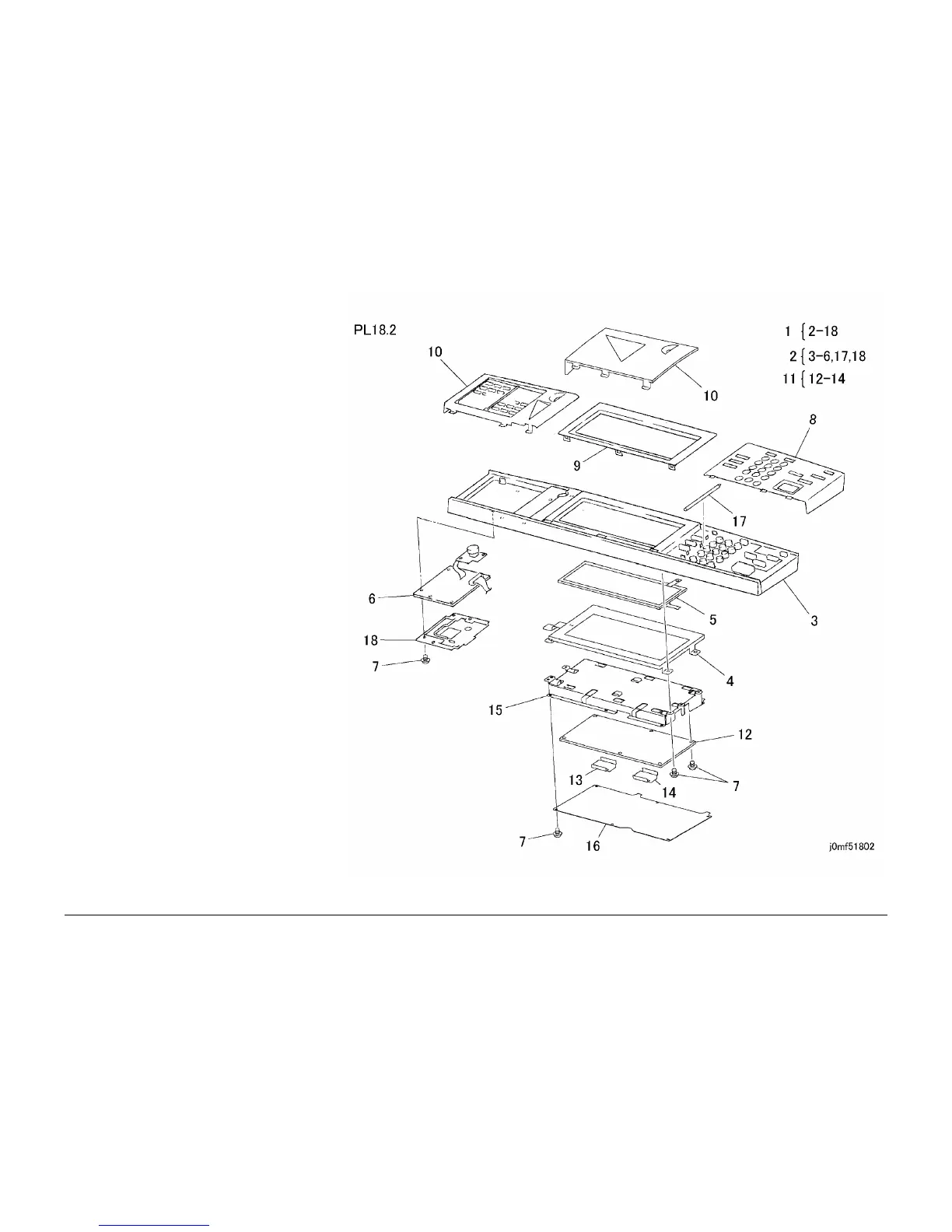

PL 18.2 Control Panel
Item Part Description
1 802K46022 Control Panel Assembly
2 – Control Panel Housing (P/O PL
18.2 Item 1)
3 – Panel Housing (P/O PL 18.2 Item
1)
4 123K94020 Display
5 110K11100 Touch Panel (ADJ 9.13)
6 160K75800 VR PWB (ADJ 9.13)
7 – Screw (P/O PL 18.2 Item 1)
8 – Right Panel (P/O PL 18.2 Item 1)
9 – Center Panel (P/O PL 18.2 Item 1)
10 802E32860 One-touch Panel
11 160K77367 UI PWB Assembly (ADJ 9.13)
12 – UI PWB Base (P/O PL 18.2 Item
1,PL 18.2 Item 11)
13 – ROM (P/O PL 18.2 Item 11)
14 – ROM (P/O PL 18.2 Item 11)
15 – Bracket (P/O PL 18.2 Item 1)
16 – Plate (P/O PL 18.2 Item 1)
17 – Adjust Pen (P/O PL 18.2 Item 1)
18 – Bracket (P/O PL 18.2 Item 1)
