Xerox DocuColor 1632 Service Manual

6/02
4-133
DC1632/2240
REP 12.16
Repairs and Adjustments
Prelaunch Training/Review
REP 12.16 Finisher PWB
Parts List on PL 17.13
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (PL 17.5).

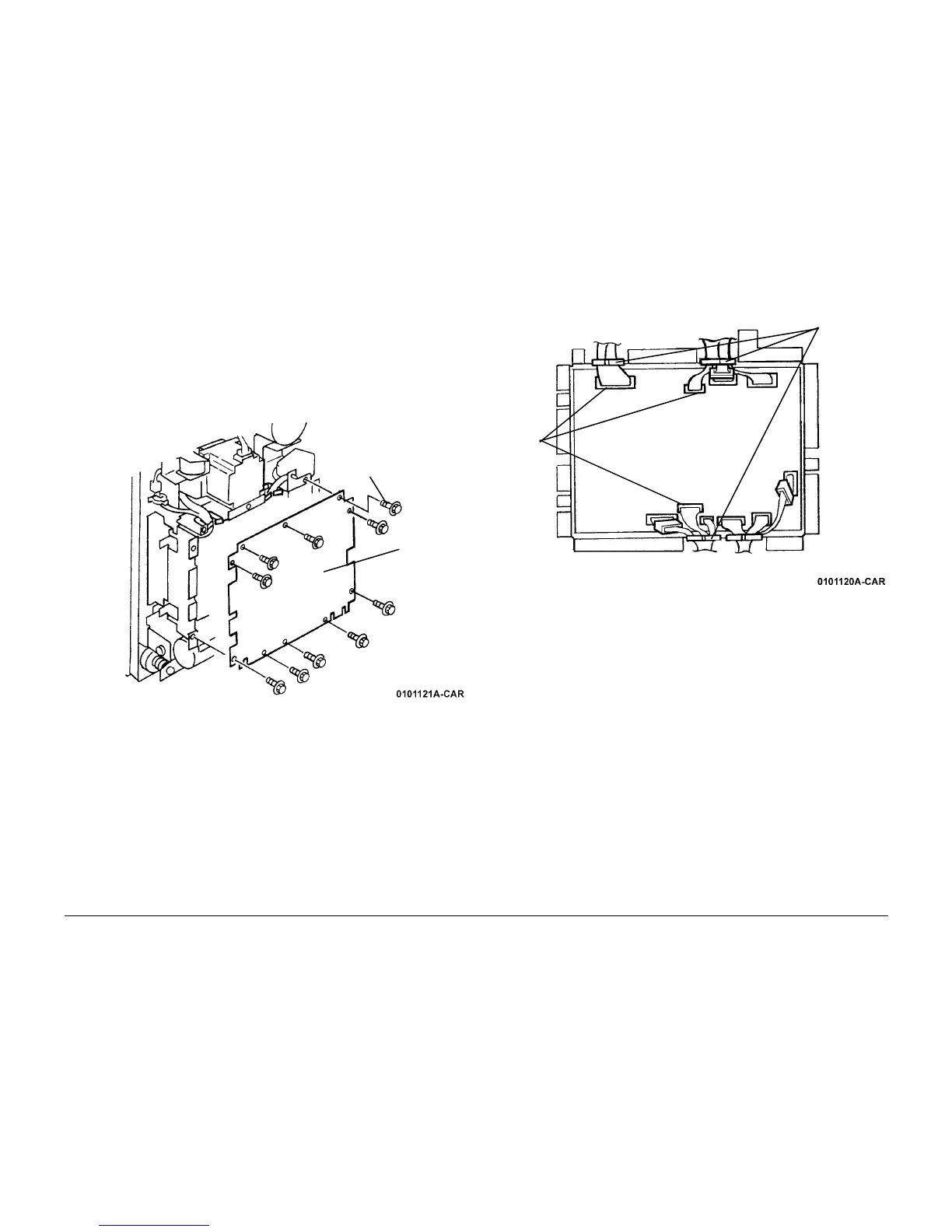

2. Remove the PWB Cover (Figure 1).
Figure 1 Removing PWB Cover
3. Disconnect P/Jís (Figure 2).
Figure 2 Disconnecting P/Jís
1
Remove
Screws
(10)
2
Remove
PWB
Cover
1
Disconnect
P/Jís (10)
2
Remove
Wire Har-
ness from
Guides (4)
