6/02
2-164
DC1632/2240
9-920
Prelaunch Training/Review
Status Indicator RAPs
9-920 Toner Cartridge (Y) Empty
The Yellow Toner Cartridge is empty.
NOTE: Continuous running of high density prints can temporarily deplete the toner supply.
Initial Actions
ï Ensure that there is toner and the toner is evenly distributed in the cartridge (Y).
ï Check the ATC Sensor (Y) for blockage or contaminants.
ï Check the drive system from the Developer Drive Motor to the Developer Housing (Y) for
damage.
Procedure
Enter dC330 [009-001]. The Toner Dispense Motor (Y) energizes (PL 6.1).
YN
Go to OF 99-6 Motor Open RAP.
Enter dC330 [009-014]. The Developer Motor energizes (PL 1.1).
YN
Go to OF 99-6 Motor Open RAP.
Check ADJ 9.3. The ATC Sensor (Y) fail judgement is OK (PL 6.2).
YN
Go the 9-380 ATC Sensor Failure (Y) RAP.
After checking that no failures are detected during normal operation, go to call closeout.

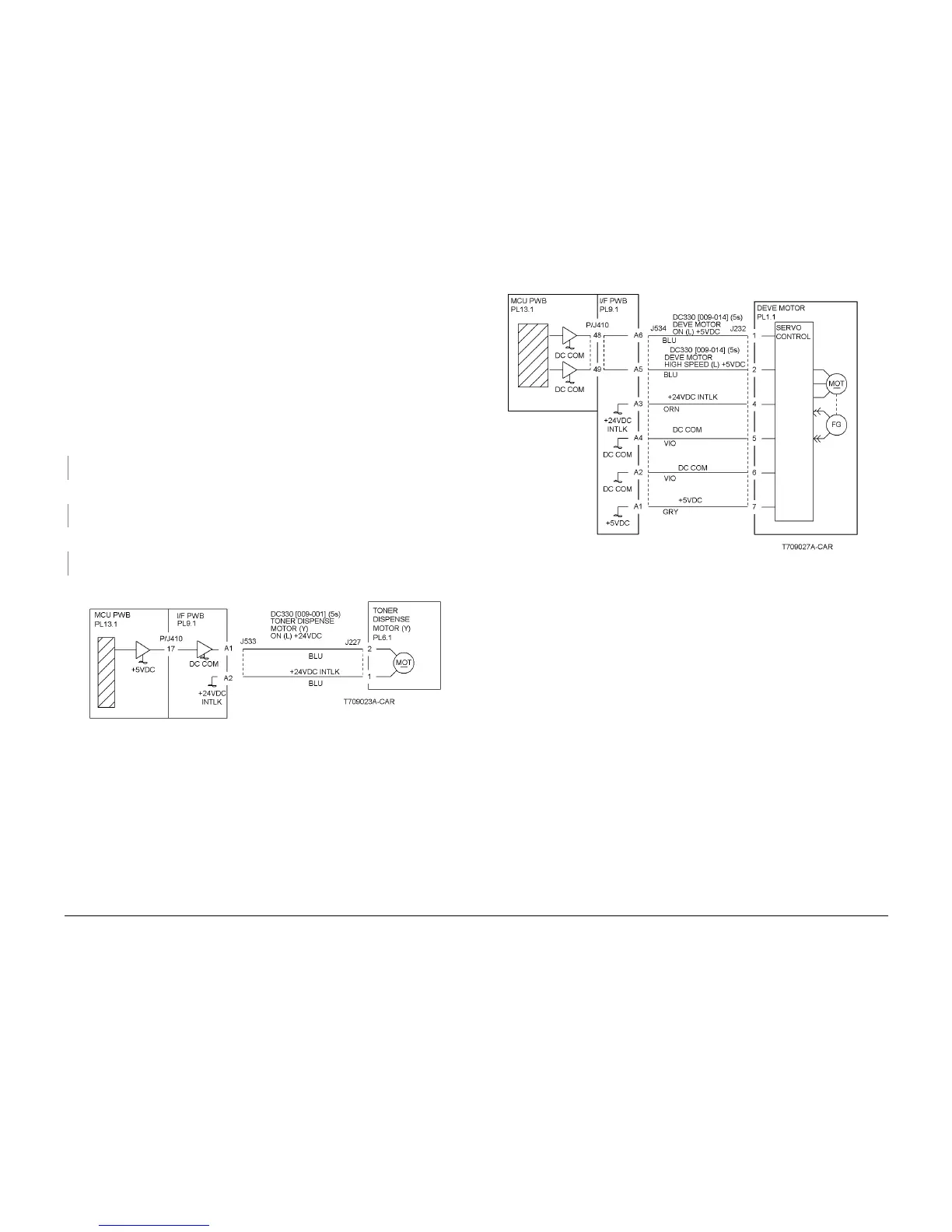

Figure 1 Toner Dispense Motor Y
Figure 2 The Developer Motor
To Next Page
