Xerox DocuColor 1632 Service Manual

6/02
5-27
DC1632/2240
PL 4.2
Parts List
Prelaunch Training/Review

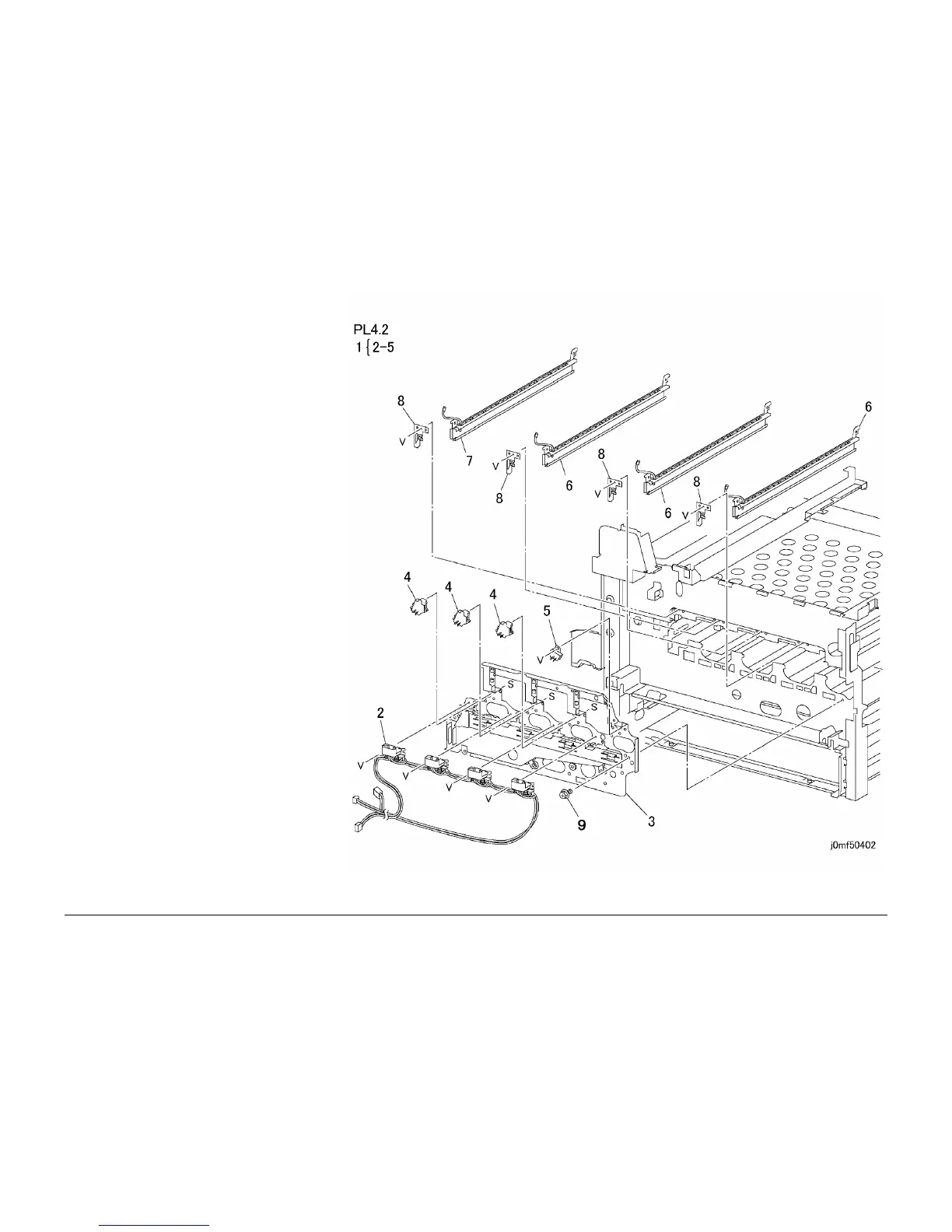

PL 4.2 Xerographic Module: 2 of 2
Item Part Description
1 015K52320 Plate Assembly (REP 9.8)
2 – Wire Harness (P/O PL 4.2 Item 1)
3 – Xero PLate (P/O PL 4.2 Item 1)
4 – Block (M, C, K) (P/O PL 4.2 Item 1)
5 – Block (Y) (P/O PL 4.2 Item 1)
6 122K93330 Erase Lamp w/Rail (Y, M, C)
7 122K93340 Erase Lamp w/Rail (K)
8 – Bracket (Not Spared)
9 – Screw (Not Spared)
