Xerox DocuColor 1632 Service Manual

6/02
5-46
DC1632/2240
PL 11.2
Prelaunch Training/Review
Parts List

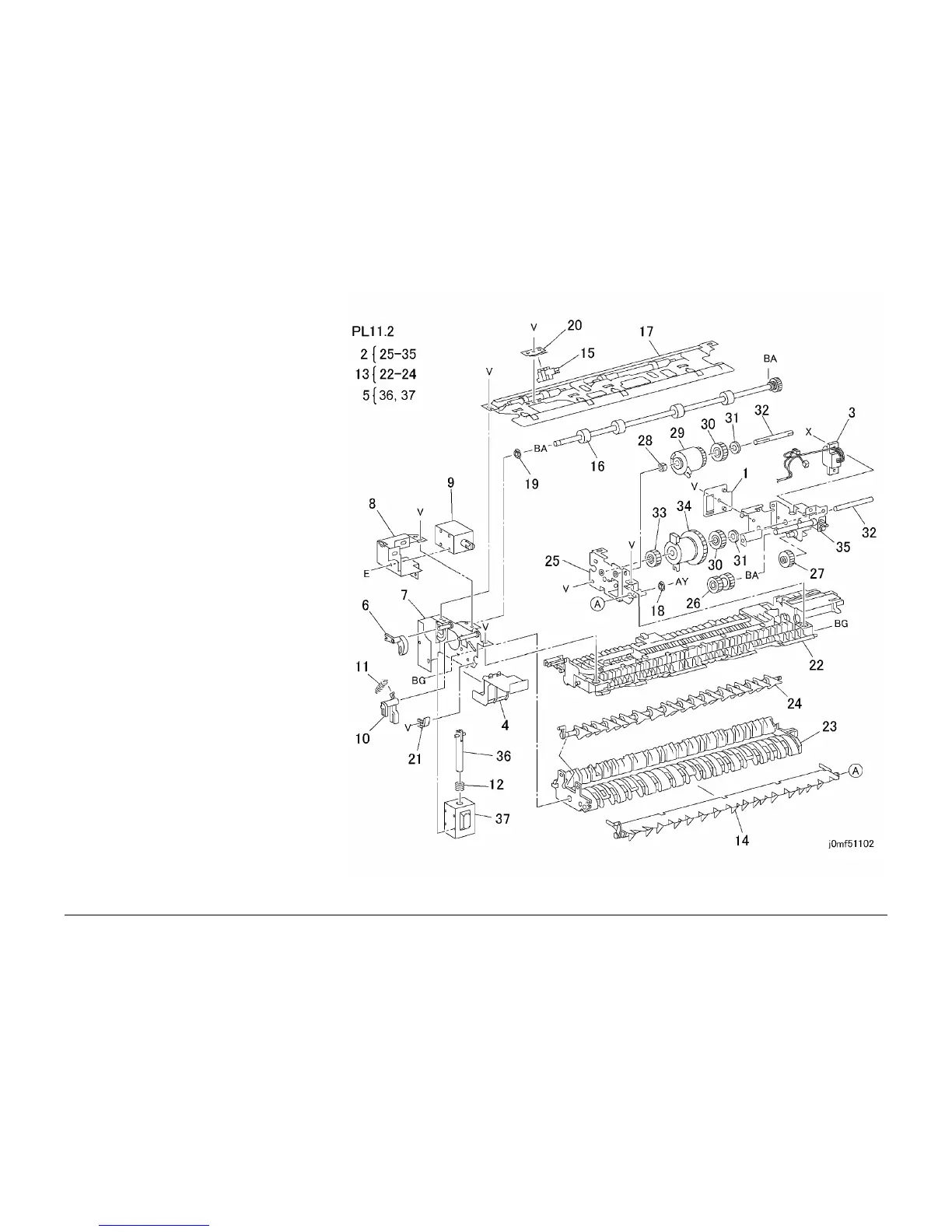

PL 11.2 Inverter Transport: 2 of 2
Item Part Description
1 – Cover (Not Spared)
2 015K45802 Clutch Assembly
3 – Wire Harness (Not Spared)
4 – Bracket (Not Spared)
5 121K23560 Duplex Gate Solenoid
6 – Link (Not Spared)
7 – Bracket (Not Spared)
8 – Bracket (Not Spared)
9 121K82870 Exit Gate Solenoid
10 – Link (Not Spared)
11 – Spring (Not Spared)
12 – Spring (Not Spared)
13 054K17241 Inverter Chute Assembly
14 054K17252 Exit Gate
15 130K93230 Face-up Sensor
16 059K16750 Roll
17 – Pinch Roll Assembly (Not Spared)
18 – Bearing (Not Spared)
19 – Bearing (Not Spared)
20 – Bracket (Not Spared)
21 – Holder (Not Spared)
22 – Upper Chute (P/O PL 11.2 Item 13)
23 – Lower Chute (P/O PL 11.2 Item 13)
24 – Duplex Gate (P/O PL 11.2 Item 13)
25 – Bracket (P/O PL 11.2 Item 2)
26 – Gear (P/O PL 11.2 Item 2)
27 – Gear (P/O PL 11.2 Item 2)
28 – Spacer (P/O PL 11.2 Item 2)
29 121K22860 Forward Clutch
30 – Gear (23T) (P/O PL 11.2 Item 2)
31 – Bearing (P/O PL 11.2 Item 2)
32 – Shaft (P/O PL 11.2 Item 2)
33 – Gear (23T) (P/O PL 11.2 Item 2)
34 121K22870 Reverse Clutch
35 011E10711 Interlock Actuator
36 – Plunger (P/O PL 11.2 Item 5)
37 – Linear Solenoid (P/O PL 11.2 Item
5)
