Xerox DocuColor 1632 Service Manual

6/02
4-109
DC1632/2240
REP 12.6
Repairs and Adjustments
Prelaunch Training/Review
8. Remove Eject Shaft (Figure 7).

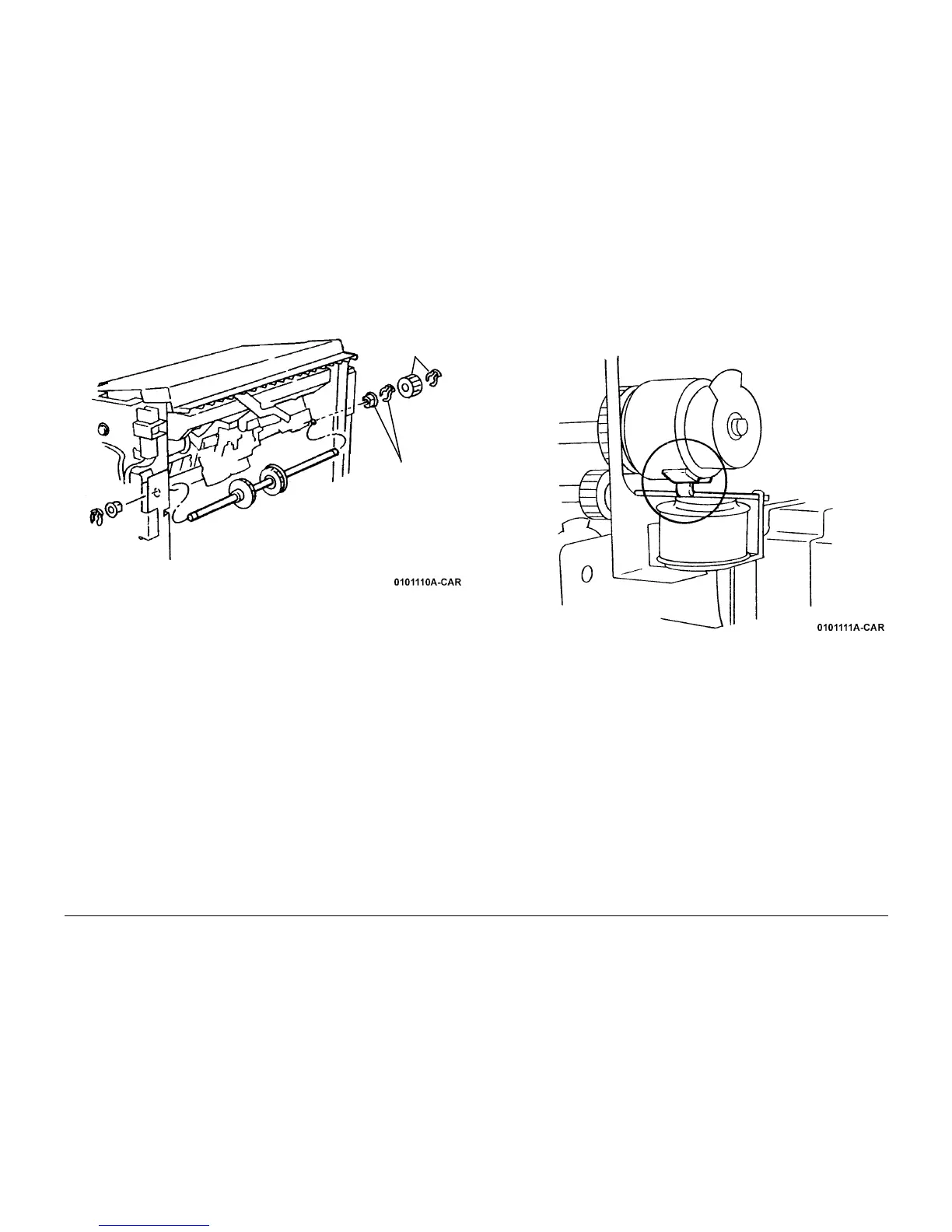

Figure 7 Removing Eject Shaft
Replacement
NOTE: When replacing Feed Roll or Eject Shaft, replace them simultaneously.
NOTE: When installing the Clutch, ensure to insert the Stop into Clutch grooves (Figure 8).
Figure 8 Inserting Stop into Clutch Grooves
1
Remove
Clip and
Gear
2
Remove
Clip Bear-
ing on both
sides
3
Remove
Eject Shaft
