Xerox DocuColor 1632 Service Manual

6/02
4-101
DC1632/2240
REP 12.2
Repairs and Adjustments
Prelaunch Training/Review

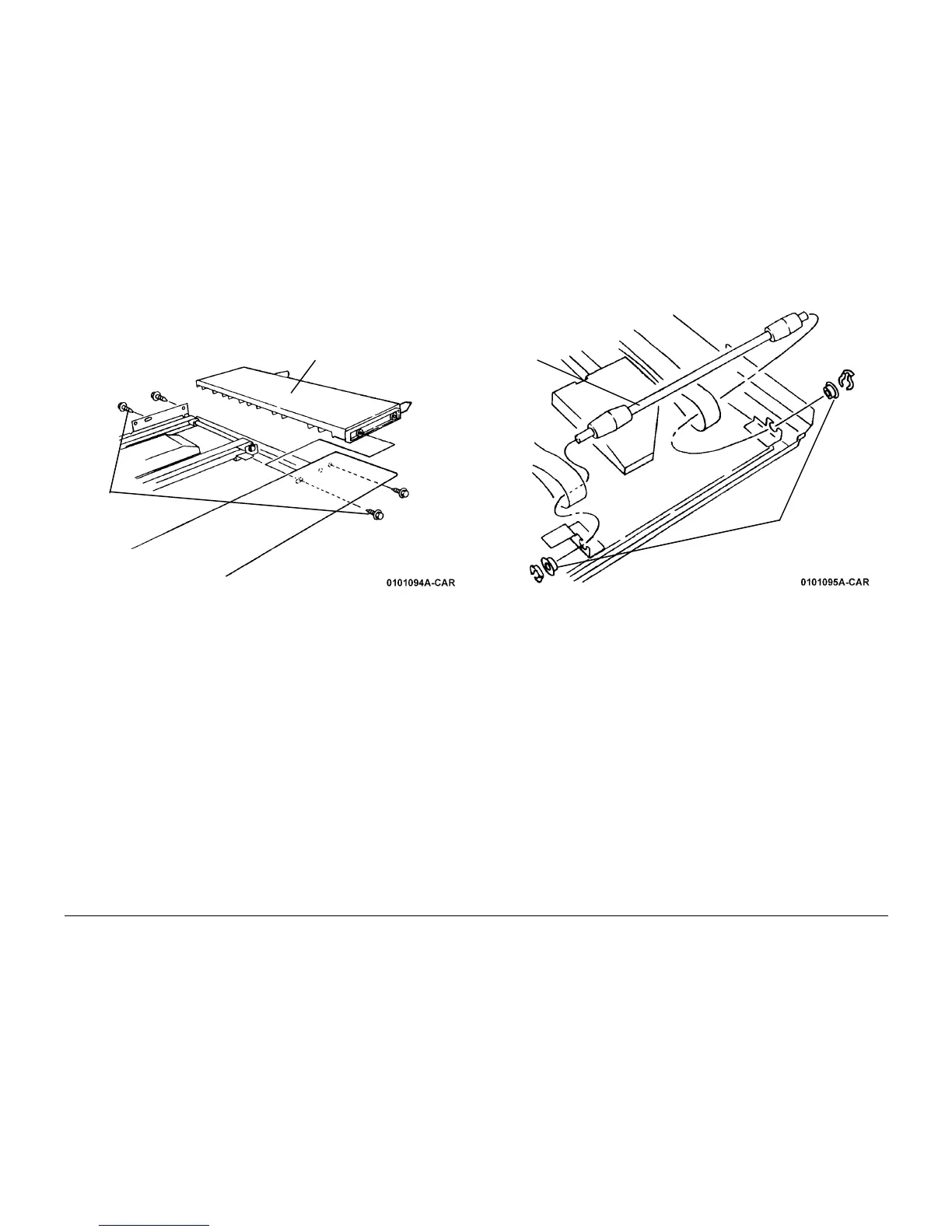

5. Remove the Entrance Upper Cover (Figure 3)
Figure 3 Removing the Entrance Upper Cover
6. Remove the input H Transport Roll (Figure 4).
Figure 4 Removing the H Transport Roll
1
Remove
Screws (4)
2
Remove
Entrance
Upper Cover
1
Remove Clips (2)
and Bearings (2)
2
Remove H
Transport
Roll
