Xerox DocuColor 1632

6/02
4-102
DC1632/2240
REP 12.2
Prelaunch Training/Review
Repairs and Adjustments
7. Remove the output H Transport Roll (Figure 5).

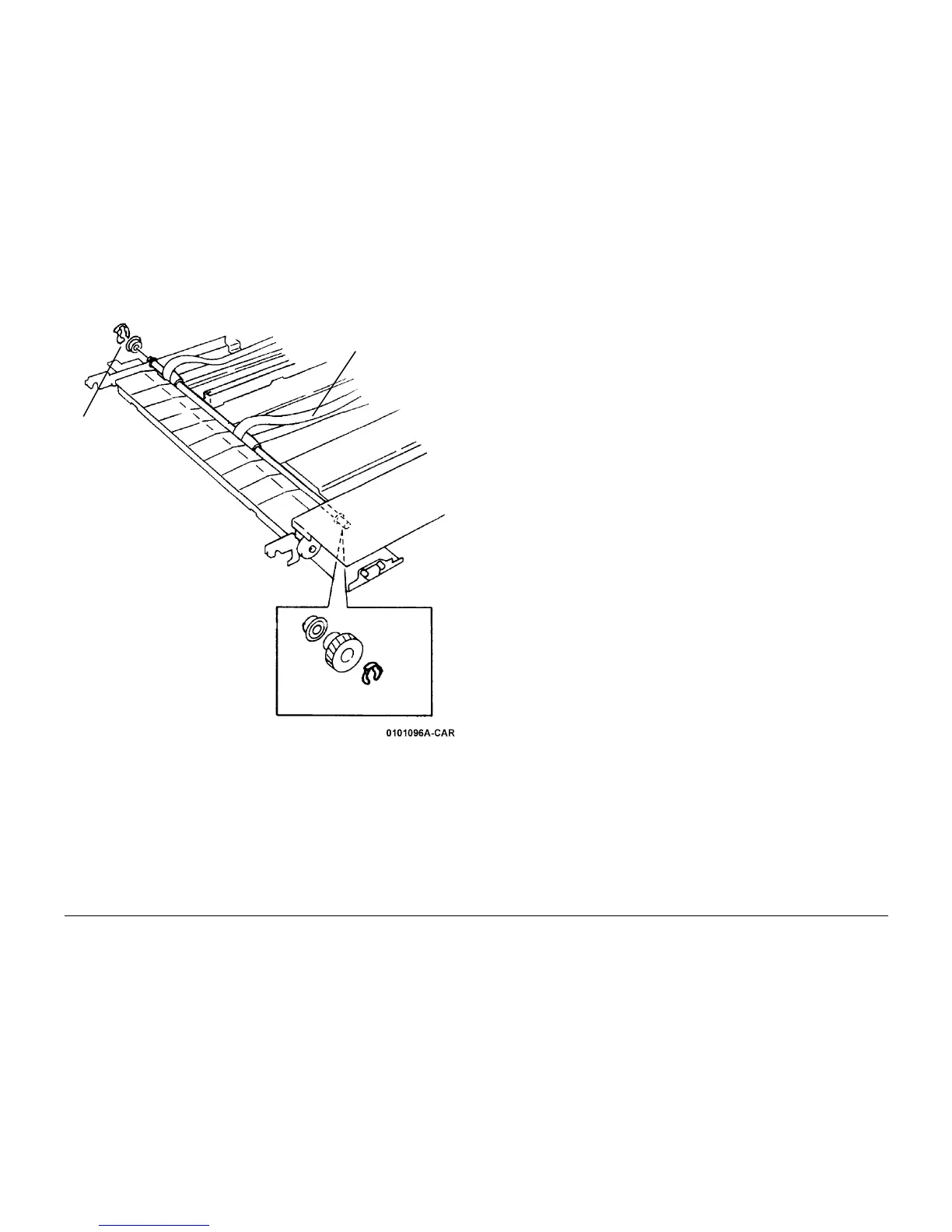

Figure 5 Removing the H Transport Roll
1
Remove
Clip and
Bearing
2
Remove
Clip, Pulley,
and Bearing
3
Remove H
Transport
Roll
4
Remove the H
Transport Belts
